Directed DS4+ Installation Manual page 19

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Honda Civic 2012-2015
12V White
Ignition Blue
Starter Yellow
Accessory Orange
Immobilizer Data Lt. Green
Immobilizer Ignition Interrupt Yellow
B-CAN High Pink
B-CAN Low Blue
Parking Lights Gray
Autolights Orange
F-CAN High White
F-CAN Low Red
Lock Blue
Unlock Gray
19
Pin Polarity Location
1 (+) Ignition Switch.
2 (+) Ignition Switch.
5 (+) Ignition Switch.
4 (+) Ignition Switch.
2 Data Immobilizer connector, at steering column around ignition cylinder.
6 Cut Immobilizer control unit around ignition cylinder.
4 Data Immobilizer connector, at steering column around ignition cylinder.
5 Data Immobilizer connector, at steering column around ignition cylinder.
8 (-) Headlight switch.
1 (-) Headlight switch.
6 Data OBDII.
14 Data OBDII.
11 (-) Door Lock, driver door harness - located in upper driver kick panel.
18 (-) Door Lock, driver door harness - located in upper driver kick panel.

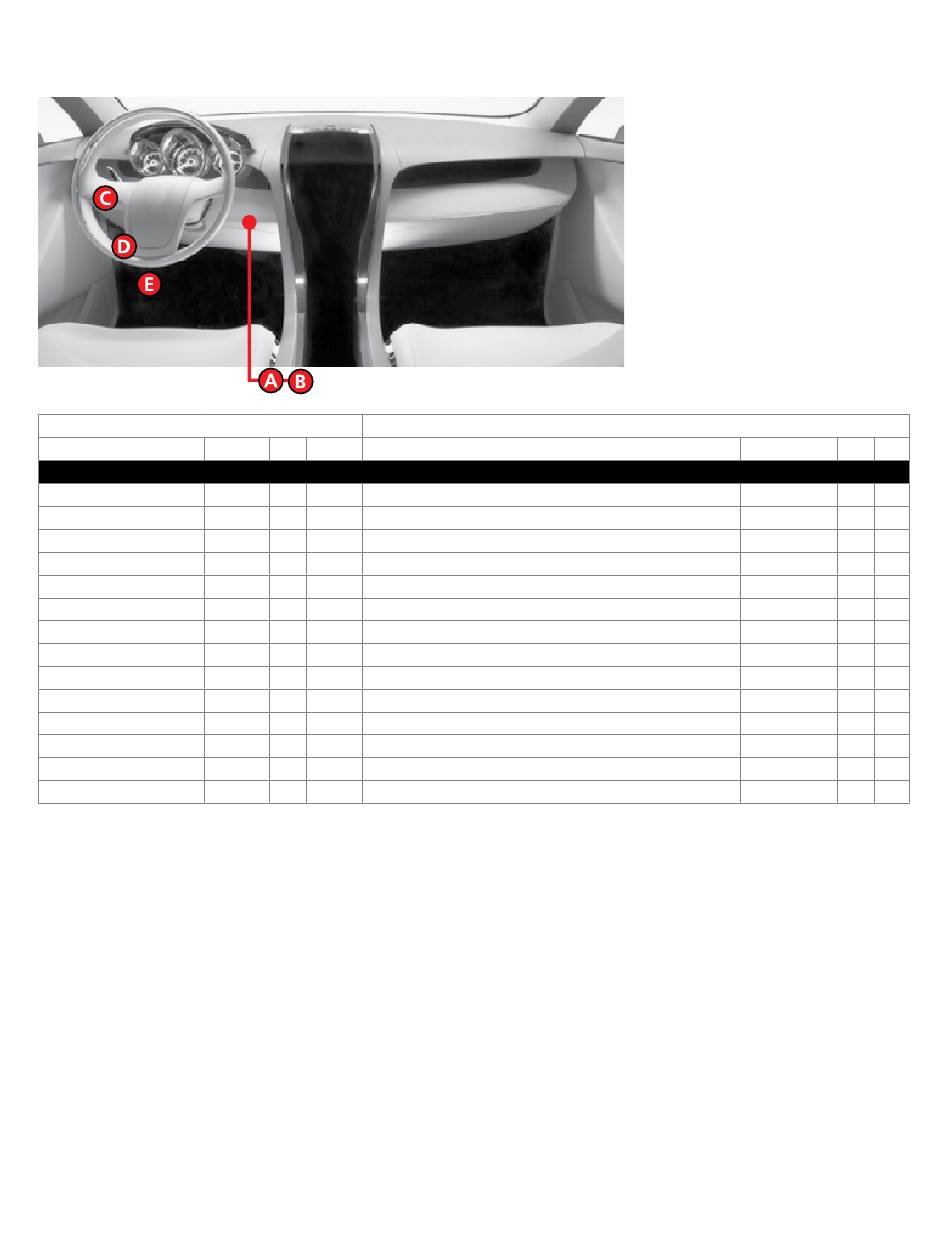

Connector Information
Color
White
White
White
White
Gray
Gray
Gray
Gray
White
White
Gray or White
Gray or White
Blue
Blue
© 2017-11-01 Directed. All rights reserved.
Pins Ref.
5 A
5 A
5 A
5 A
7 B
7 B
7 B
7 B
12 C
12 C
16 D
16 D
23 E
23 E
DS4+ HONDA56
