Directed DS4+ Installation Manual page 14

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Acura TL (Smart Key) 2009-2014
12V White
Ignition 1 Blue
Ignition 2 Red
Accessory Orange
Parking Lights Gray
Autolights Pink
F-CAN High White
F-CAN Low Black
Immobilizer Data Lt. Green
Immobilizer Ignition Interrupt Yellow
PTS Lt. Blue
Starter Lt. Green
B-CAN High Pink
B-CAN Low Blue

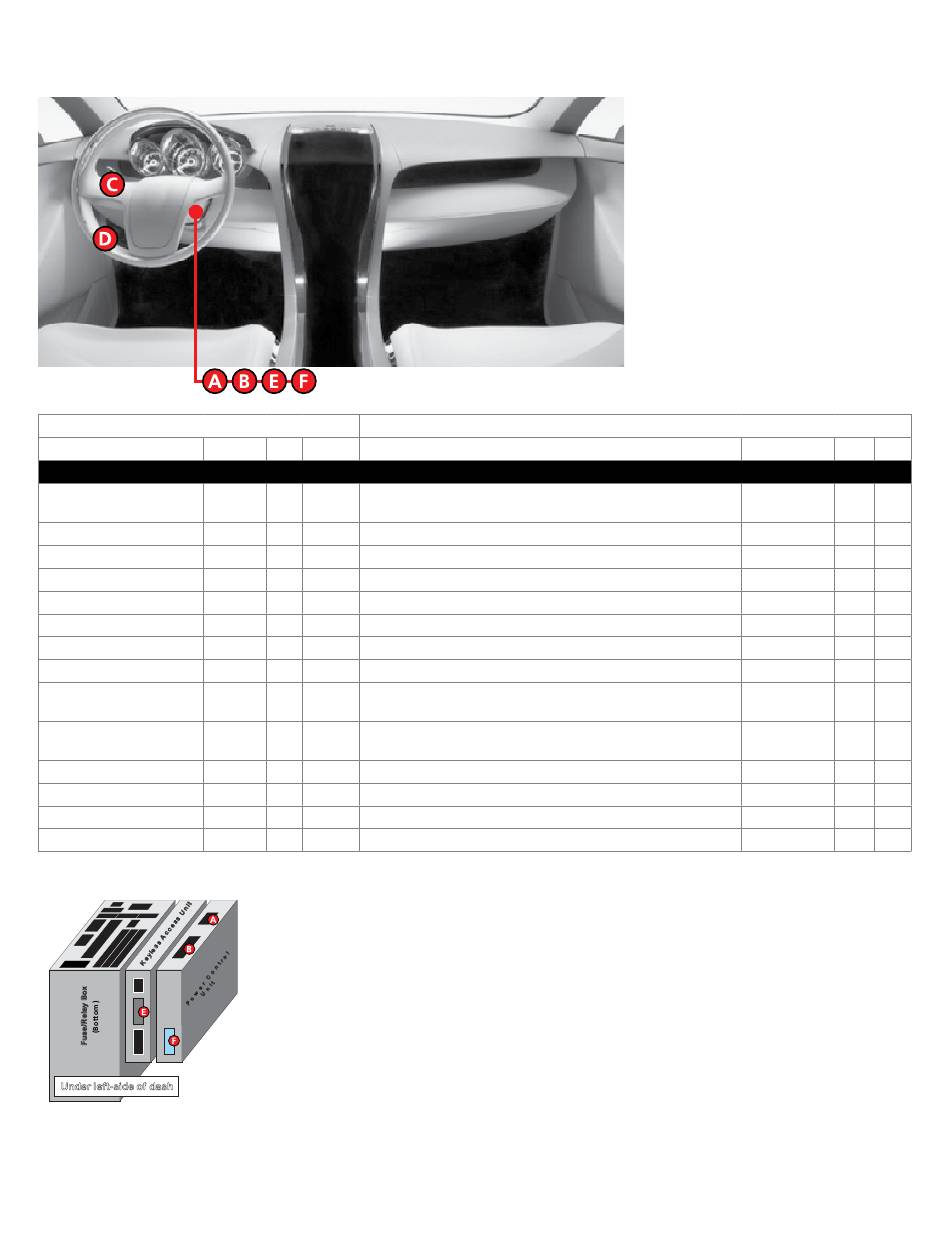

Under left-side of dash
14
Pin Polarity Location
PCU (Power Control Unit), right of driver dash fuse box, bottom
1 (+)
connector.
4 (+) PCU, right of driver dash fuse box, bottom connector.
3 (+) PCU, right of driver dash fuse box, bottom connector.
1 (+) PCU, right of driver dash fuse box, bottom connector.
11 (-) Headlight switch.
9 (-) Headlight switch.
6 Data OBDII.
14 Data OBDII.
Keyless Access Control Unit right of driver dash fuse box left of PCU,
21 Data
bottom connector.
Keyless Access Control Unit right of driver dash fuse box left of PCU,
17 Cut
bottom connector.
7 (-) PCU, right steering column.
10 (+) PCU, right steering column.
16 Data PCU, right steering column.
17 Data PCU, right steering column.
Connector Information
Color
White
White
White
White
Black & White
Black & White
Gray
Gray
Gray
Gray
Lt. Blue
Lt. Blue
Lt. Blue
Lt. Blue
© 2017-11-01 Directed. All rights reserved.
Pins Ref.
1 A
4 B
4 B
4 B
12 C
12 C
16 D
16 D
32 E
32 E
36 F
36 F
36 F
36 F
DS4+ HONDA56
