Module programming for Types 2 & 3
Refer to "LED diagnostics and troubleshooting" on page 29 for more information and for troubleshooting purposes.

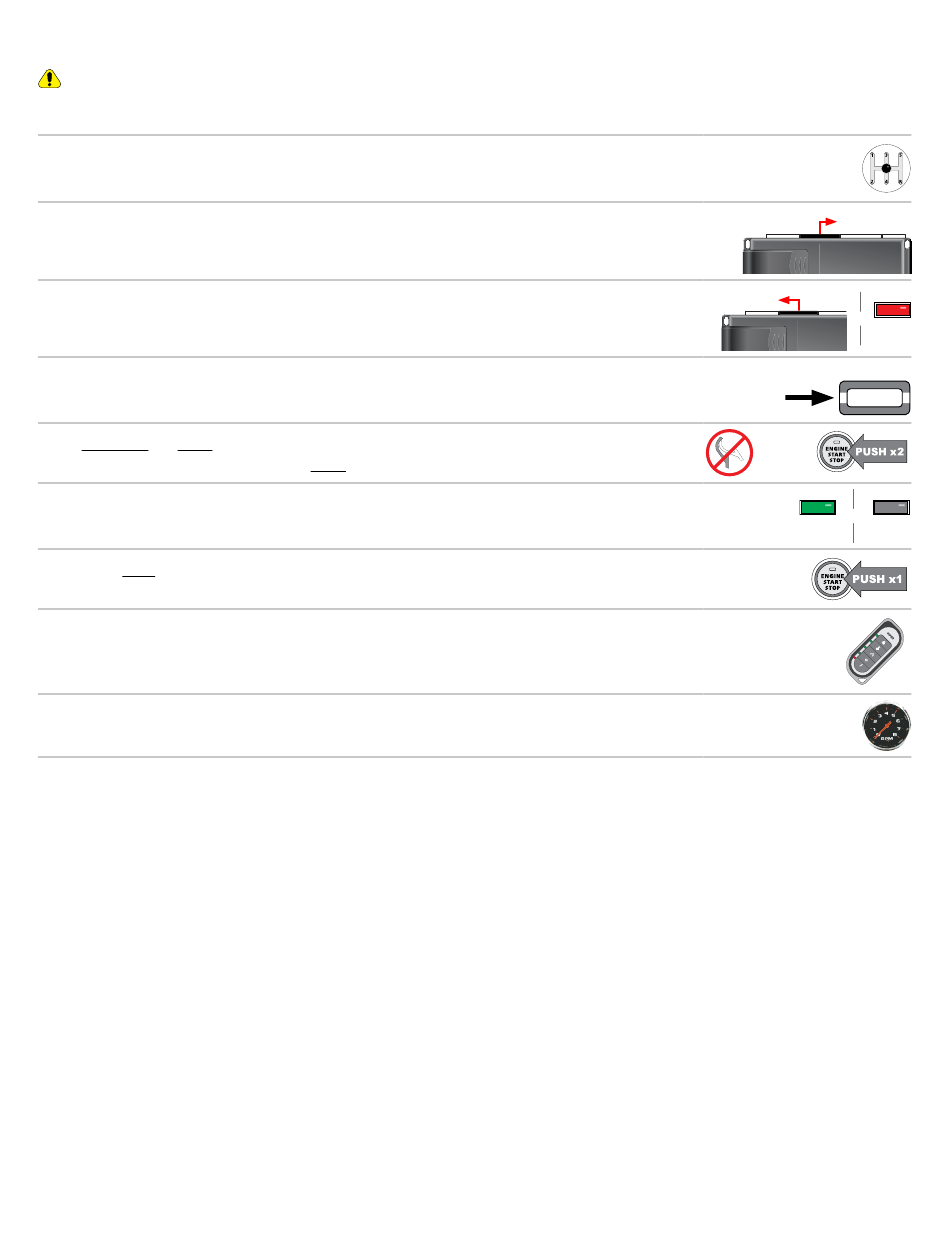

To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
2
Connect all the harnesses to the DS4+, EXCEPT the 12-pin main power harness.
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
4
Insert the OEM remote into the key port.
Important! Do NOT depress the brake pedal.
5
Press the Push-to-Start (PTS) button twice to turn the ignition ON.
6
The LED turns ON solid green for 3 seconds, then shuts OFF.
Press once on the Push-to-Start button to turn vehicle ignition OFF once the module is
7
successfully programmed.
Pair remotes (if applicable). For information on how to pair a specific remote, please
8
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
9
program tach, see page 34.
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
