Type 5 With T-Harness (Thhon3) - Directed DS4+ Installation Manual

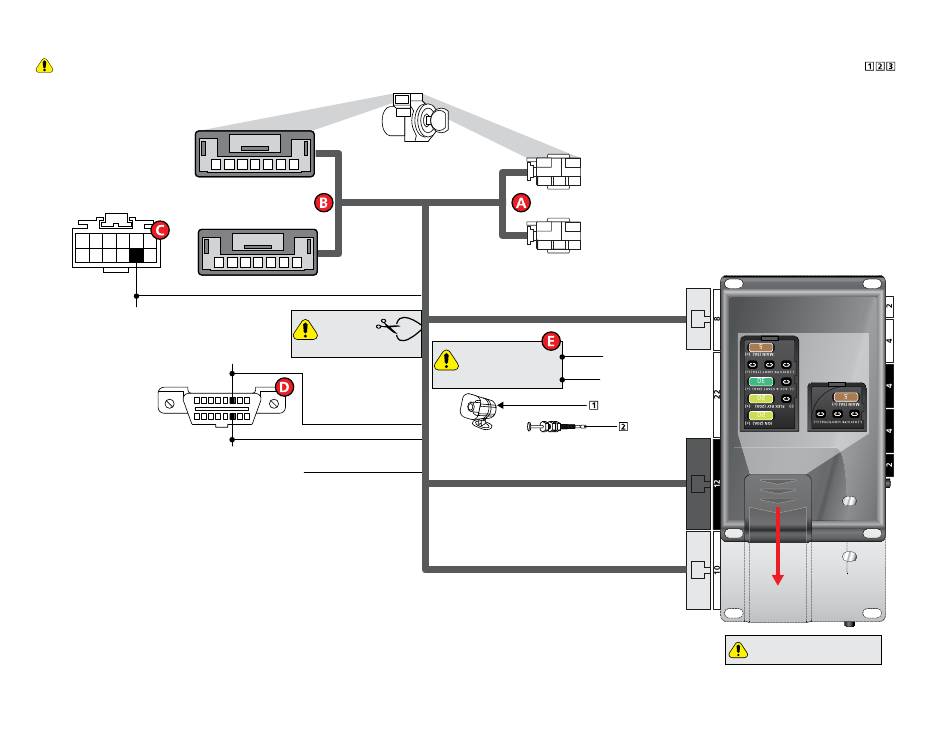

Wiring diagram with T-Harness (THHON3)
Type 5 with T-Harness (THHON3)
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram (
Headlight Switch
(White conn. at
Immobilizer Control Unit
headlight switch)
(Gray conn. at ignition cylinder)
6 5 4 3 2 1
12 11 10 9 8 7
(-) Parking Lights:
Blue, pin 8
F-CAN High: White, pin 6
Diagnostic
1
Connector
OBDII
9
F-CAN Low: Red, pin 14
20
(-) Parking Lights Output: Lt. Blue/Black
Cut the
Brown/White
loop on vehicles
without Autolights.
8
16
FT CAN High: Orange/Green
FT CAN Low: Orange/Brown
No Connection: Violet/Brown
Ignition switch
(White conn. at
Ignition switch)
Refer to
(-) Lock Output: Green/Black: 3
www.directechs.com
for lock and unlock
connections. (-) Unlock Output: Blue/Black: 9
(+) Siren Output: Brown/Red: 11
Siren
Hood Pin
THHON3
(Optional T-Harness)
8-pin
White
conn.
(-) Hood Input: Gray: 21
DS4+
Proper Fuse
Positioning
12-pin
Black
conn.
10-pin
White
Slide
conn.
to open
It is important to check that the
fuses are positioned correctly.
© 2017-11-01 Directed. All rights reserved.
).
).
DS4
DS4
DS4+
DS4+ HONDA56
