Introduction

The HONDA56 firmware for DS4+ is compatible with specific ACURA and HONDA vehicles. It is a complete
solution for remote start, security (when security features are enabled), bypass, and features built in Bluetooth
4.0 allowing you to configure and control your system. This guide provides information on the installation
of the module using HONDA56. Please refer to the DirectLink application or www.directechs.com for more
information about which configuration is best for your application.
Warning! This module is designed to be configured using the DirectLink application for mobile devices, however it can also
be configured using the web tool located at www.directechs.com. To download the DirectLink mobile application, please visit the
Google Play or Apple store.

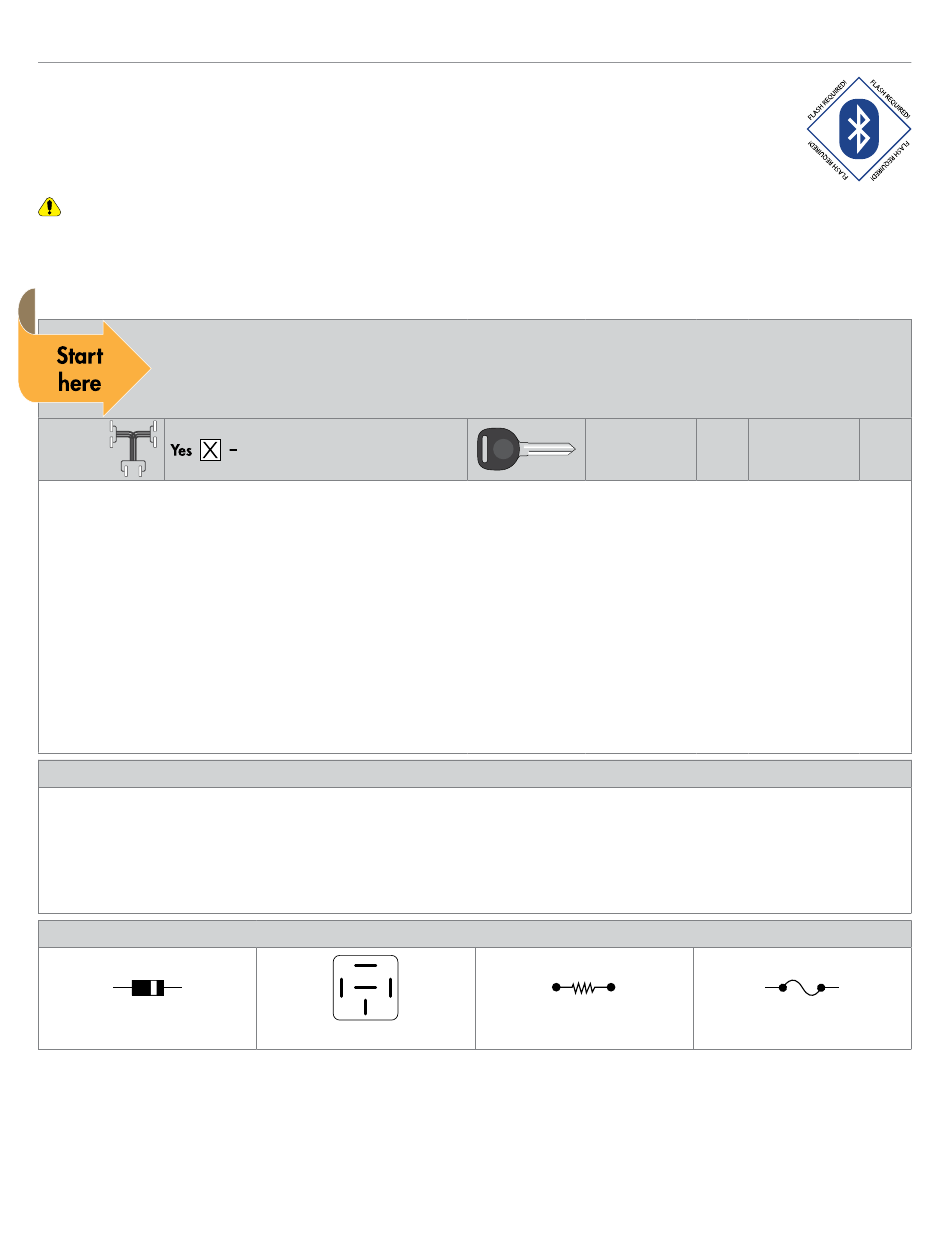

Pre-installation and application warnings

Firmware notes: This section highlights important information for this specific firmware and will assist in
pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible
No takeover feature available on Push-to-Start vehicles (install types 2, 3 & 6). The engine will stop when a door is opened.
Š
Wait at least 2 seconds before restarting the engine or an error message can appear in the vehicle information display.
Power liftgate and sliding door controls are only available when the engine is OFF.
Š
The 2013-2015 Acura ILX (Smart Key), 2013-2015 Acura RDX (Smart Key), 2009-2014 Acura TL (Smart Key) and
Š
2010-2013 Acura ZDX (Smart Key) are NOT compatible with optional T-Harnesses THHON3 and THHON4 .
The optional Plug & Play THHON3 and THHON4 T-Harnesses are sold separately.
Š
The OBDII Diagnostic Connector features will remain the same even when the T-Harness is installed.
Š
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic
Š
connector.
It is important to check that the fuses are positioned correctly in the module. Proper fuse positioning is displayed on each
Š
wiring diagram.
Refer to the "Vehicle wiring reference chart" following each installation type.
Š
General notes: This section highlights important information for this specific firmware.
The siren is ONLY required when enabling the security features during module flashing.
[1]
The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin.
[2]
The Green wire is ONLY required for starter disable and antigrind applications.
[3]
Optional but required for OEM Remote Keyless Entry to operate when vehicle is remote started.
[4]
Connect the Autolight OFF wire only if the vehicle is equipped with automatic headlights.
[5]
Additional parts required (maximum required):
Diode 6A
0 x 1A Diodes
4
THHON3 or THHON4
87
87a
86 85
30
0 x Relay
Keys required for
1
programming
Resistor 100Ω
0 x Resistor
Keys required for
0
operation
Fuse 7.5A
0 x Fuse
DS4+ HONDA56
