Type 3 - Directed DS4+ Installation Manual

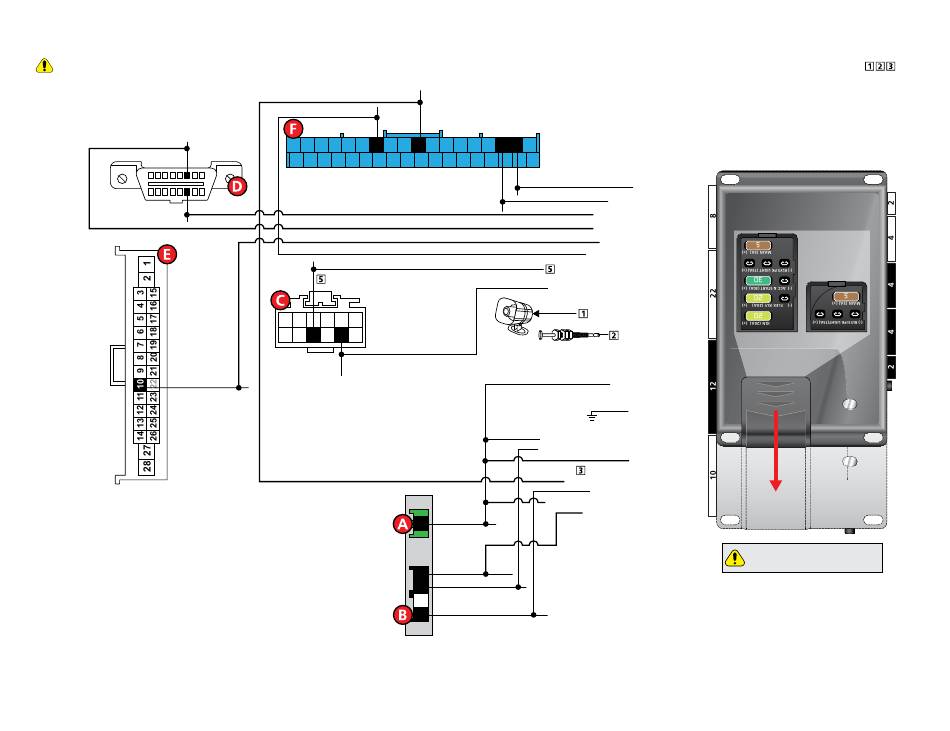

Wiring diagram

Type 3

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram (
Diagnostic Connector OBDII
(connector side view)
F-CAN High: White, pin 6
1 8
9 16
F-CAN Low: Black, pin 14
Immobilizer Data:
Lt. Green, pin 10
Junction Conn.
(White conn. above
passenger kick fuse box)
15
(+) Starter: Lt.Green, pin 10
(-) Push-to-Start: Violet, pin 7
Power Control Unit
(Lt. Blue conn. right of column)
1 2 3 4 5 6 7 8 9 10 11 12
19 20 21 22 23 24 25 26 27 28 29
(-) Autolights: Pink, pin 9
Headlight Switch
1 2 3 4 5 6
(Black & White conn.
7 8 9 10 11 12
at headlight)
(-) Parking Lights: White, pin 11
(+) 12V:
White, pin 1
1
Power Control Unit
(+) Ignition 1:
(Green & White
Blue, pin 4
4
connectors right
of steering column)
3
(+) Ignition 2:
2
Red, pin 3
1
(+) Accessory:
Orange, pin 1
13 14 15 16 17 18
30 31 32 33 34 35 36
B-CAN High:
B-CAN Low: Blue, pin 17
Pink, pin 16
HS CAN High: Tan/Black: 2
FT CAN Low: Orange/Brown: 3
FT CAN High: Orange/Green: 4
Immo. Data: Orange/Black: 7
(-) PTS Output: Lt. Green/Black: 1
(-) Autolight Off Output: Brown/White: 6
(-) Parking Lights Output: Lt. Blue/Black: 10
(+) Siren Output: Brown/Red: 11
Siren
(-) Hood Input: Gray: 21
Hood Pin
(+) 12V Input: Red: 6 & 12
(+) Accessory/Starter Relay Input: Red/Black: 2
(+) Ignition 2/Flex Relay Output: Pink/White: 4
Starter Input (Key Side): Green: 6
(+) Starter Output (to starter): Violet: 7
(+) Accessory Output: Orange: 8
(+) Ignition 2/Flex Relay Input: Red/White: 9
(+) Ignition Input/Ouput: Pink: 10
HS CAN Low: Tan: 1
DS4+
Proper Fuse
Positioning
(-) Ground: Black: 10
(+) 12V Input: Red: 5
Slide
to open
It is important to check that the
fuses are positioned correctly.
