Mechanical Assembly

1.3.1

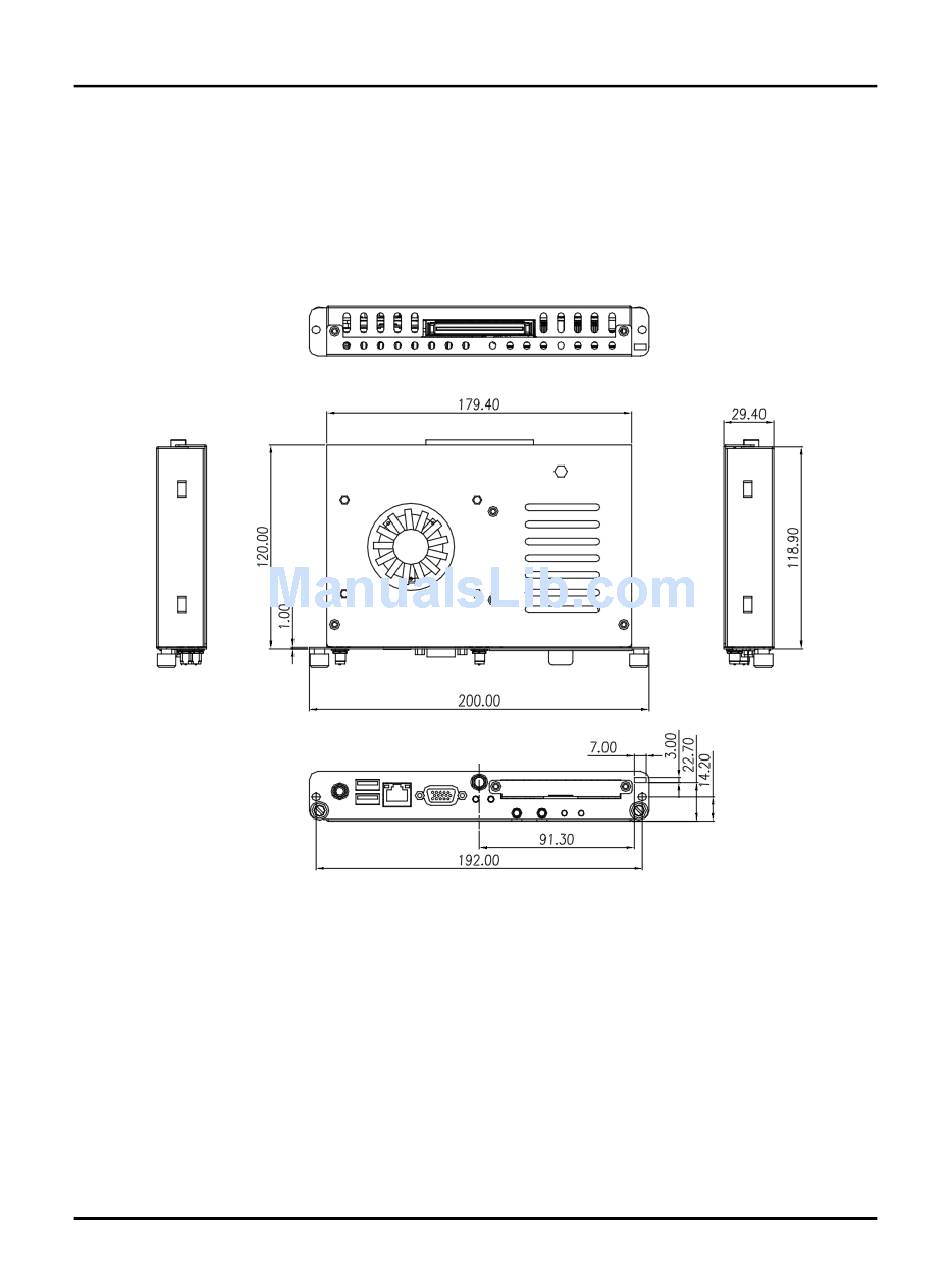

This diagram shows you dimensions and outlines of th e OPS830

The overall dimension of the module including the mounting frame is 200mm x 119mm x 30mm

and also shows the location of the front panel screw holes as well as the security lock.

Remark: W hile plugging the OPS module, please make sure the heat sink side of OPS

module. Toward the outside, Axiomtek will be out of reasonability if there is any damage

occurred due to it.
