C. Fix A03 with A04 (3 sets).

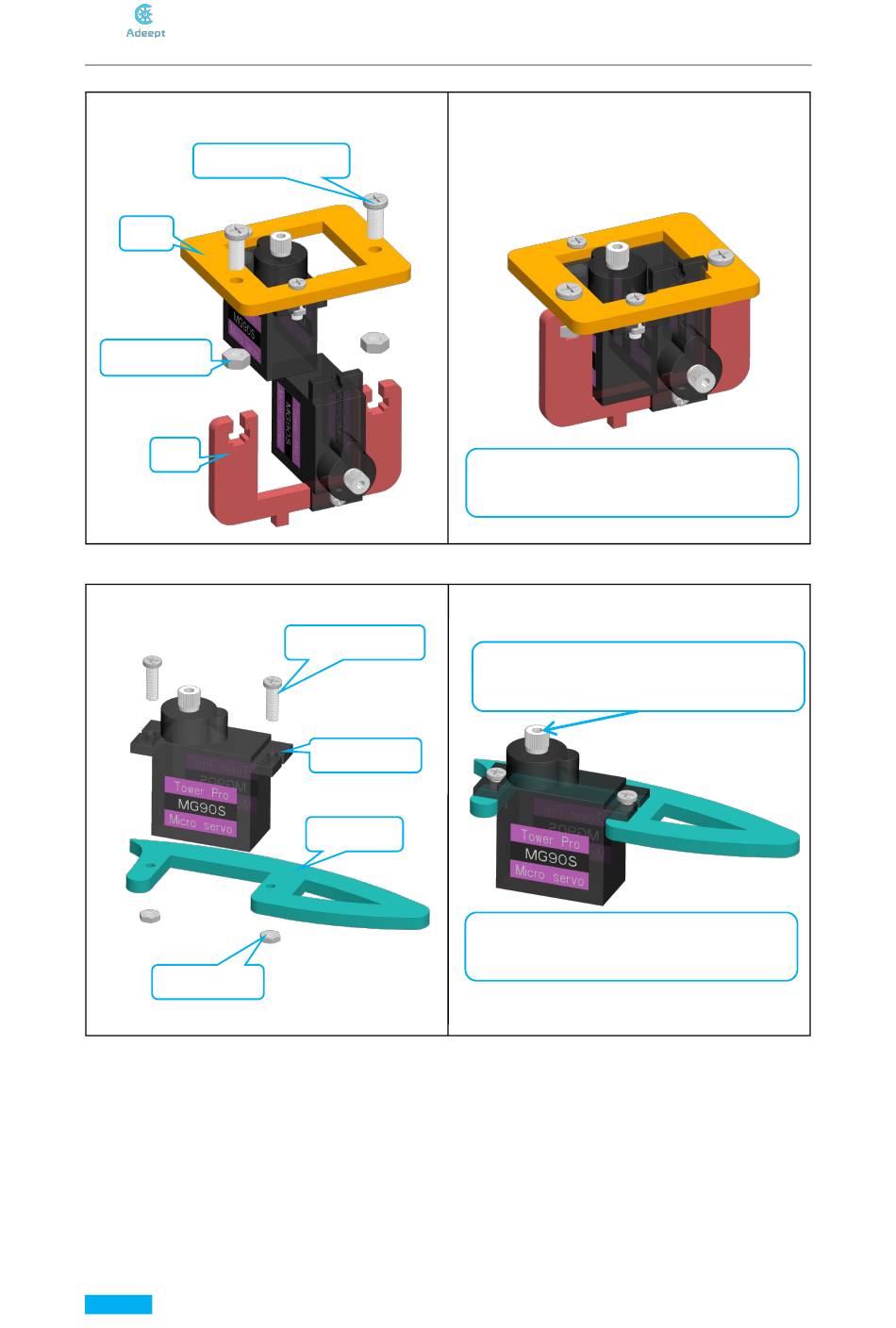

Assemble the following components
M3*8 Screw x2
A03
M3 Nut x2
A04
D. Fix the servo with A06.(3 sets)
Assemble the following components
M2 Nut x1
38
M2*8 Screw x2
servo x1
A06 x1
Effect diagram after assembling
Define the component completed in this
step as component C2
Effect diagram after assembling
The servo shaft is close to the left
Define the component that this step
completes as component D2
