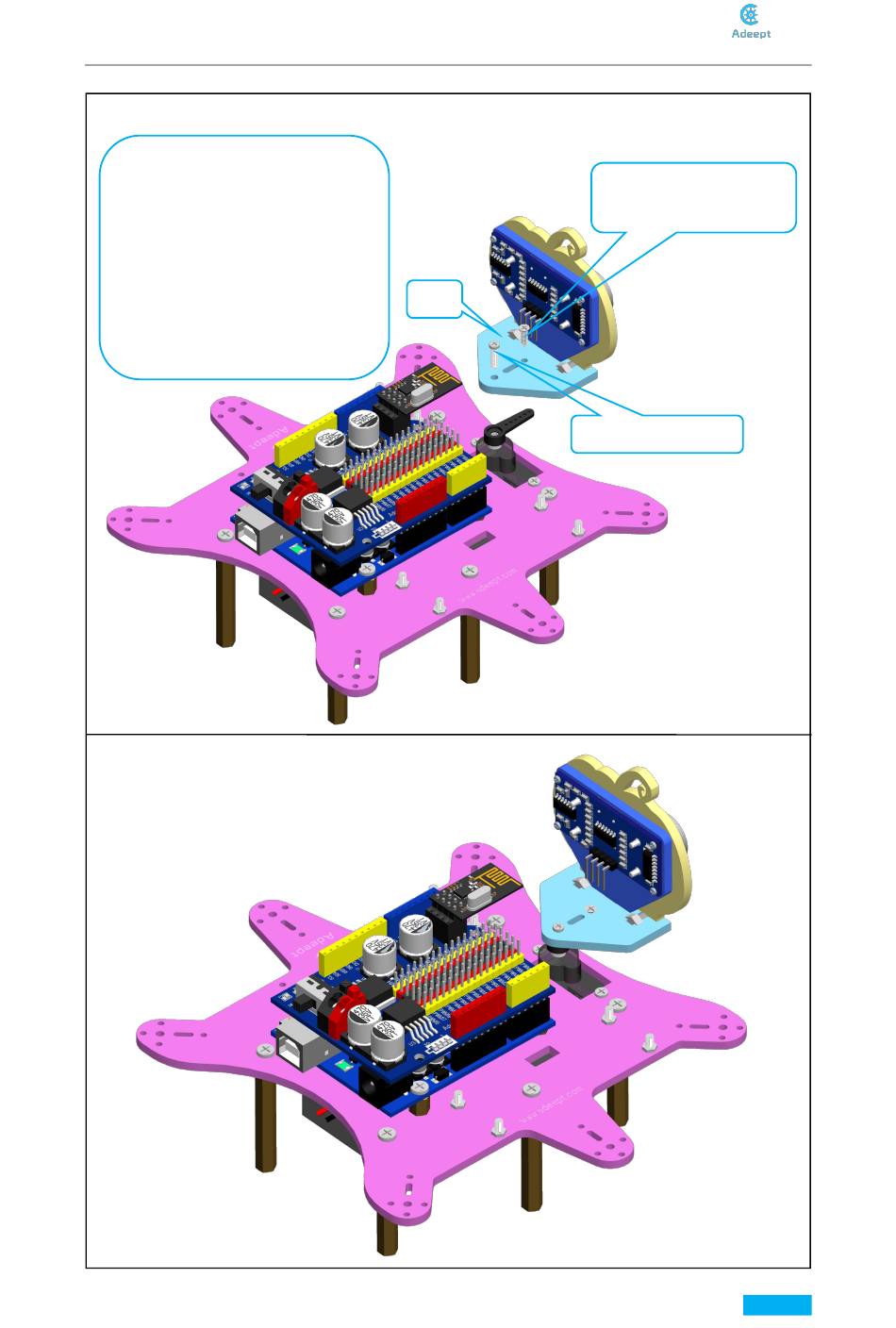

Q. Fix A07 with steering gear and rocker arm.
Assemble the following components
When installing, M2.5*8 Screw is
Self-tapping screw
firstly fixed with the steering gear
packaged with servo x1
through A07 , and then self-tapping
Screw packaged with servo is
installed with the rocker arm through
A07
A07, so as to avoid the rocker arm
falling off from the steering gear
during installation.
M2.5*8 Screw x1
Effect diagram after assembling
