ADEEPT Hexapod 6 Legs Spider Robot Manual page 33

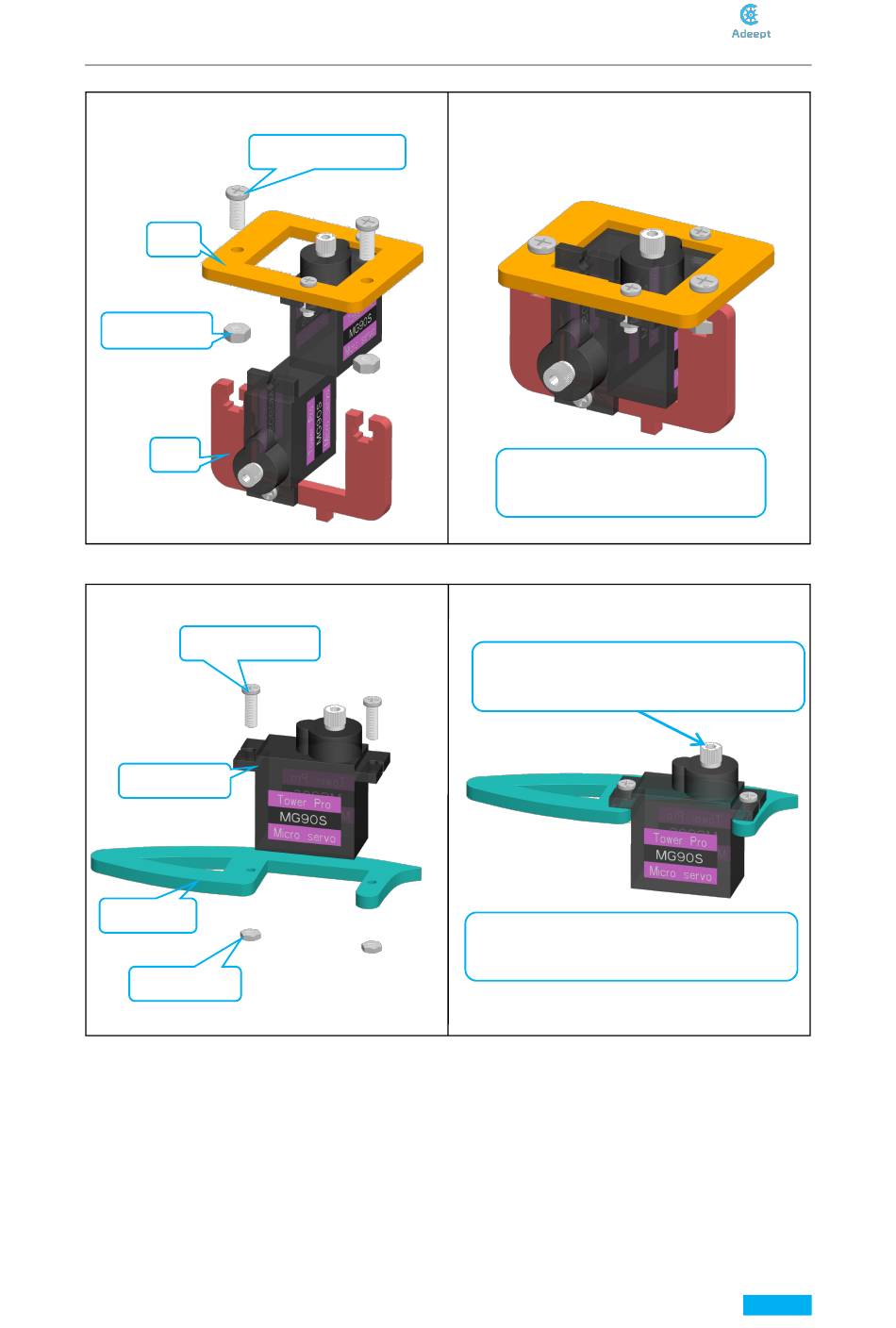

C. Fix A03 with A04. (3 sets)
Assemble the following components
A03
M3 Nut x2
A04
D. Fix the servo with A06 .(3 sets)
Assemble the following components
M2*8 Screw x2
servo x1
A06 x1
M2 Nut x2
M3*8 Screw x2
Effect diagram after assembling
Define the component completed
in this step as component C1
Effect diagram after assembling
The steering gear shaft is close to the right
Define the component that this step
completes as component D1
www.adeept.com
29
