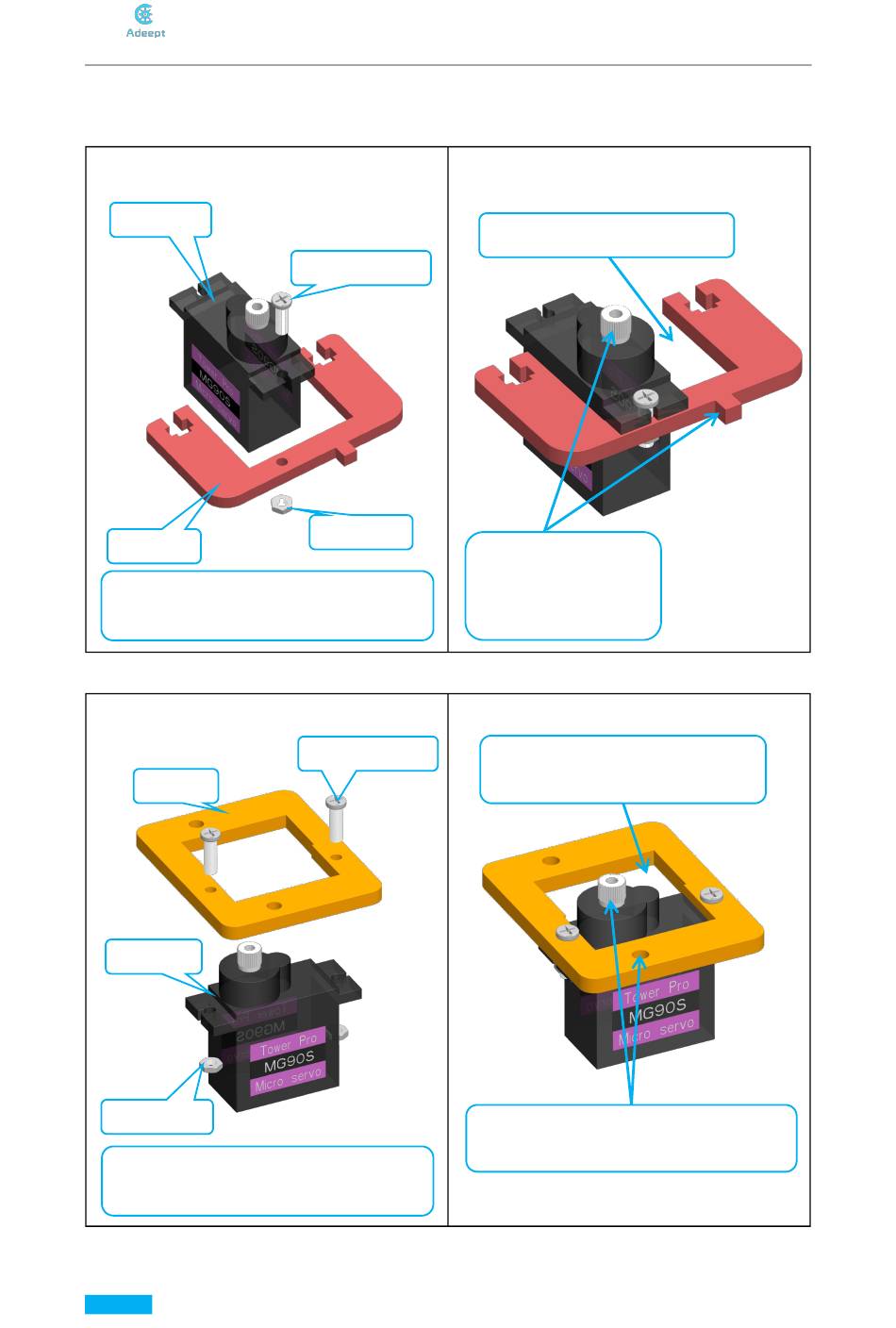

Install the right feet

A. Keep the servo fixed with A04. (3 sets)
Assemble the following components
servo x1
A04 x1
Install in strict accordance with the
position shown. Do not reverse any parts.
B. Fix the servo with A03 (3 sets)
Assemble the following components
A03 x1
servo x1
M2 Nut x2
Install in strict accordance with the
position shown. Do not reverse any parts.
28
Effect diagram after assembling
M2*8 Screw x1
M2 Nut x1
Effect diagram after assembling
M2*8 Screw x2
Here the gap is on the right
The steering gear shaft
is on the side of the
A04 bulge.
The gap is behind here
The shaft of the steering gear is near the
hole on A03
