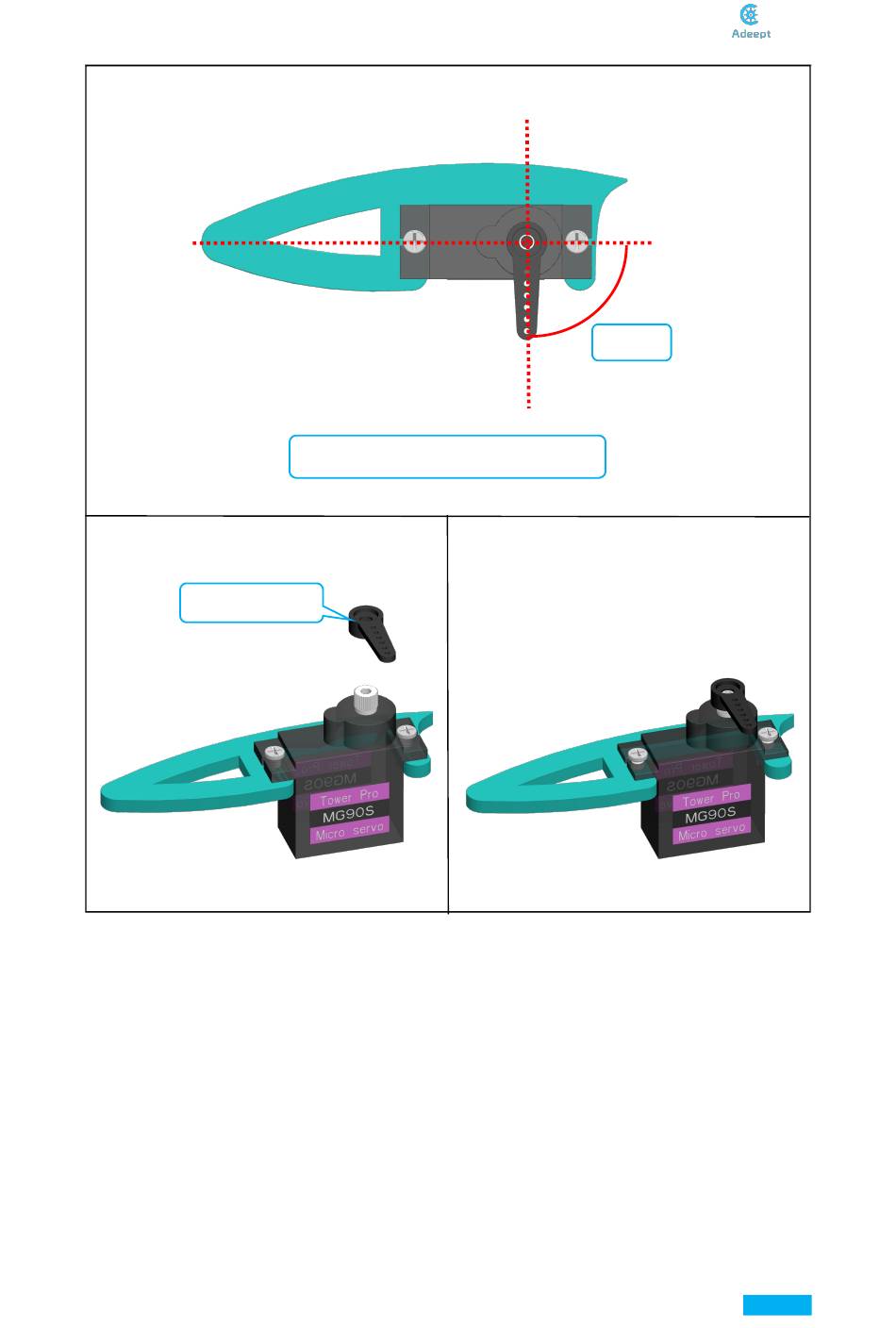

Install the third rocker arm at the following Angle
90°
Here the Angle can be slightly deviated
Assemble the following components Effect diagram after assembling
rocker arm x1
After the three rocker arm installed, turn the switch of Adeept 32 Channel PWM Drive to OFF
(power OFF), and unplug the servo wiring from the Adeept 32 Channel PWM Drive. At the later
installation process you may not take the rocker from the steering gear, otherwise you need to
repeat the above steps to complete the installation of the rocker arm.
