4. APPEARANCE
4.5

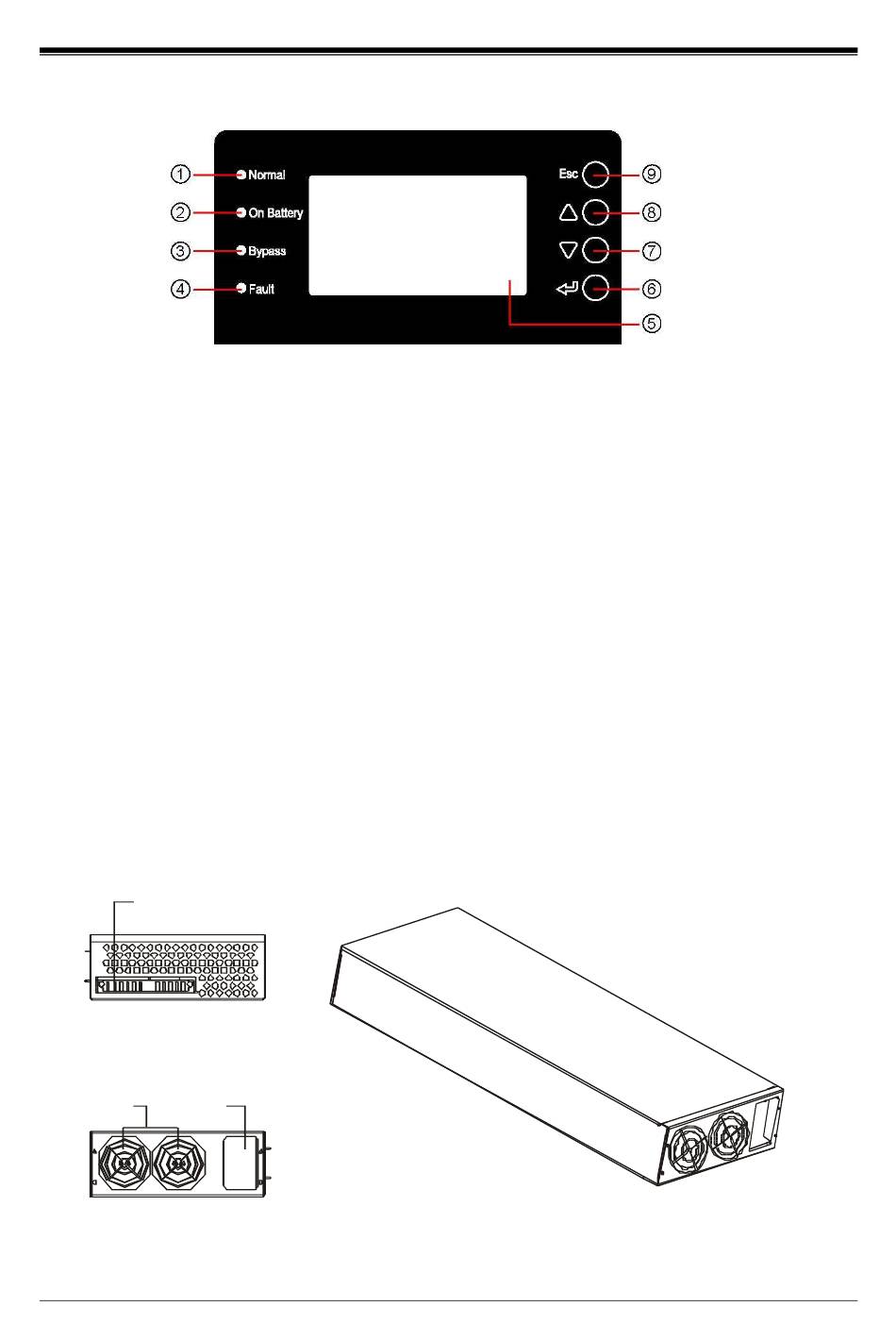

LCD Display Panel
1. Normal: The UPS system is working normal and powering the load via INVERTER if this green LED
is on.
2. On Battery: The UPS system is powering the load from the battery via INVERTER if this yellow LED
is on.
3. Bypass: The output power of the UPS system is supplied by mains via bypass when this yellow LED
lights up.
4. Fault: The UPS system is in fault condition if this red LED is on. There are two states of fault warning:
red LED is solid on with continuous audible alarm; red LED is flashing with interval audible alarm.
5. LCD screen: Shows the information and the status of the UPS system.
6.
: Enter
↵ ↵ ↵ ↵
7. ▼ :Page-down
8. ▲ :Page-up
9. ESC: Exit
4.6
Appearance of the Charger Module (optional)
Connector
Rear View
REAR VIEW
Fan
Handle
Front View
FRONT VIEW
Side View
SIDE VIEW
9
