Summary of Contents for Santak K Series
-
Page 2: Safety Caution
Safety – CAUTION This product is specially designed for PCs and it is not recommended for use in any medical equipment, life-supporting system and other specific important equipment. Do not plug household appliances such as hair dryers, microwave ovens or vacuum cleaners to UPS. - Page 3 If UPS is to be stored for a long time, it is recommended to recharge the batteries (by connecting the utility power to UPS, switch “ON”), once a month for 24 hours to avoid a full battery discharge. In case smoke is found coming out from the device, please cut off the power supply quickly and contact the distributor.
-
Page 4: Product Overview

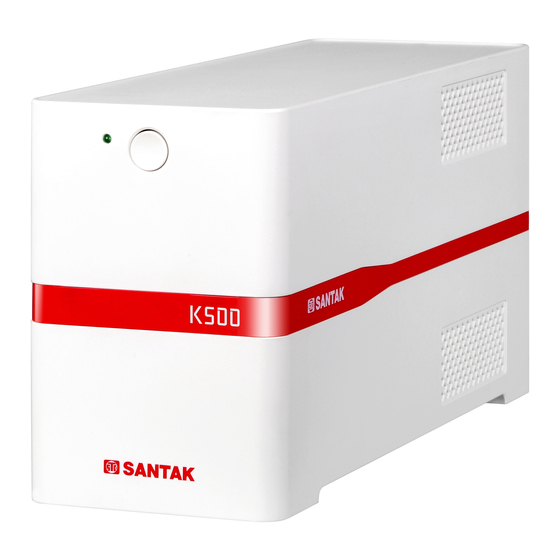

The use of liquid extinguishers may give rise to the danger of electric shock. Introduction K series is a compact line interactive UPS (Uninteruptable Power Supply) which is designed to protect your personal computer or sensitive electronic euipments from all forms of power interference, including complete power failures. - Page 5 K500 Rear Panel K1000 Rear Panel 1. AVR+ Battery Output (Normal/Battery Mode) 2. AC Input (Plug or IEC Input Socket ) Installation and operation An additional circuit breaker or fuse with rating 16A and breaking capacity 3kA shall be used between power source and input when installation this unit.
- Page 6 connecting to the utility. 4. Press UPS power switch (the buzzer rings and indicator lights) for few seconds , UPS runs and now open your PC or other loads; 5. When electricity is normal and UPS is in battery mode, the socket on ups can provide stable output;...
-
Page 7: Maintenance
AC Input abnormally Beep once AC Input UPS is in battery ★ per 1 sec abnormally mode with battery low Beep an output short circuit continuously or other fault Failure ● Beep once Low voltage /battery ★ per 2 sec aging Maintenance UPS internal use of sealed maintenance-free lead-acid batteries, as... -
Page 8: Specifications
Non-professional personnel Do not open the cover to avoid the risk of electric shock. The Caution! Do not open the battery to prevent the electrolyte from harming the human body. Specifications Model K series K500 K1000 INPUT Voltage 162×(1±7%)VAC～268×(1±7%)VAC >40Hz... -
Page 9: Troubleshooting
* Normal Mode * The initial value of the new battery The Caution! This product is a Class C2 UPS for use in residential areas where installation restrictions or additional facilities may be required to suppress radio frequency harassment. High altitude area loading= Rated power * Derating factor Altitude 1000m... - Page 10 SANTAK ELECTRONIC（SHENZHEN）CO.,LTD No.8 Baoshi Rd, Block 72 Baoan, Shenzhen, Guangdong, China www.eaton.com www.santak.com 614-01849XS1-01...
