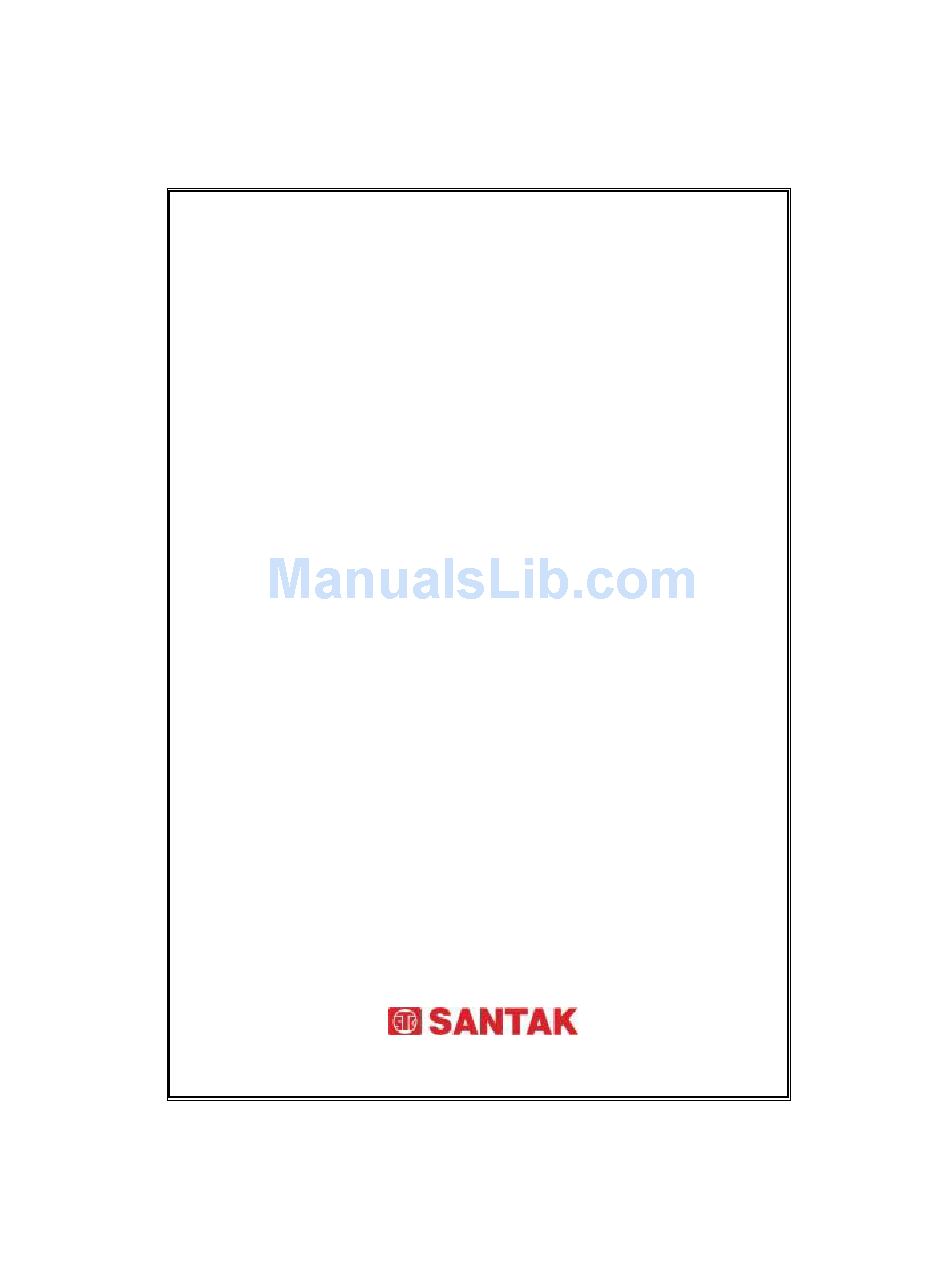

Page 1: User Manual
Перейти на сайт USER MANUAL RACK MOUNT 1/2/3/6kVA... -
Page 2: Table Of Contents
Table of Contents 1. Introduction ··························································································································· 1 2. Safety Instructions················································································································· 2 3. System Description ·············································································································· 4 3.1 Display Panel············································································································ 4 3.2 Rear Panel················································································································ 5 4. Maintenance··························································································································· 7 4.1 Operation Environment·························································································· · 7 4.2 Battery Application·································································································· 7 Troubleshooting······································································································ 7 5. Technical Data······················································································································· 9 5.1 Electrical Specification····························································································... -
Page 3: Introduction

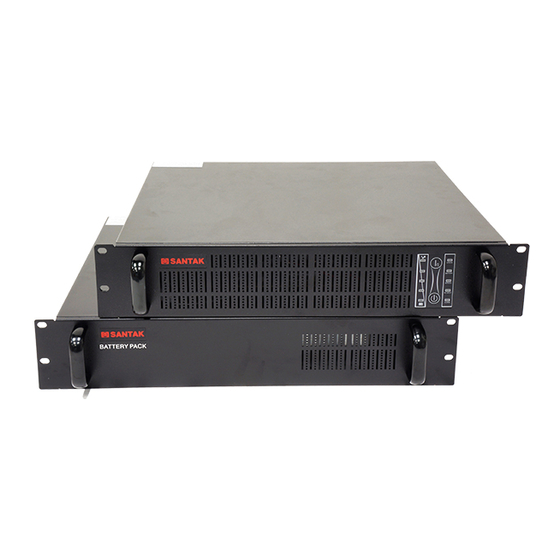

1. I NTRODUCTION This series is an industry rack-mount design of an advanced true-online sinewave Uninterruptible Power System. It protects your systems by supplying battery backup when power fails.By using with WinPower software, the uninterruptible power system (UPS) will safely save current data and gracefully shut down the operating system before the battery is fully discharged. -
Page 4: Safety Instructions
2. S AFETY NSTRUCTIONS PLEASE READ THIS USER MANUAL AND THE SAFETY INSTRUCTIONS BE- FORE INSTALLING THE UNIT AND STARTING IT UP! Transport Please transport the UPS system only in the original packaging (to protect against ● shock and impact). Set-up Condensation may occur if the UPS system is moved directly from a cold to a ●... - Page 5 2. S AFETY NSTRUCTIONS Operation The UPS system features its own, internal current source (batteries). The UPS ● output sockets may contain hazardous voltage through operation from the battery even if the UPS system is not connected to the utility power socket-outlet. In order to fully disconnect the UPS system, first press the Standby switch then ●...
-
Page 6: System Description
3. S YSTEM ESCRIPTION 3.1 D ISPLAY PANEL The power control and the operating indicators are located on the front panel of the UPS . ON-SWITCH INDICATOR 1 UPS ON LED INDICATOR 2 BATTERY LED BYPASS LED INDICATOR 3 INDICATOR 4 AC INPUT LED INDICATOR 5 ALARM LED... -
Page 7: Rear Panel
3. S YSTEM ESCRIPTION INDICATOR 1-5 Shows the load level in utility power mode. ● Shows the battery level in battery mode. ● load level battery level INDICATOR 1 96%-105% 1%-35% INDICATOR 2 76%-95% 36%-55% INDICATOR 3 56%-75% 56%-75% INDICATOR 4 36%-55% 76%-95% INDICATOR 5... - Page 8 3. S YSTEM ESCRIPTION Output Intelligent Output Input breaker External Output Input Surge Communication port fuse battery breaker 2KS/3K(S) Intelligent Output Output Input slot fuse breaker socket Surge Communication Input/ External battery protection port output socket (RJ45) terminal Battery Pack for 1KS/2K(S)/3K(S) Battery Pack for 6K...
-
Page 9: Maintenance
3. S YSTEM ESCRIPTION Surge Protection(RJ45 Port): This is a transient voltage surge-suppressor for network or fax/modem protection. Communication Port: W inPower software can be used with the UPS for power management. Standard serial interface cable is compatible with 1K(S)/2K(S)/3K(S) UPS, however, only the special cable supplied with the UPS can be used on 6K UPS. -
Page 10: Troubleshooting
AINTENANCE 4.3 T ROUBLESHOOTING The troubleshooting chart covers most of the difficulties that you may encounter under normal working condition. Such information can be used to determine whether the fault is caused by external factors or how to tackle the problem. If the UPS still fails to operate properly, please contact the service centre as soon as possible . -
Page 11: Technical Data
5. T ECHNICAL 5.1 E LECTRICAL SPECIFICATIONS Model C1KR/ C1KRS C2KR/ C2KRS C3KR/C3KRS C6KR INPUT Voltage 220VAC Frequency 46 Hz ~ 54 Hz（Adjustable） Amperage 10A/12A 15 A (maximum) OUTPUT 1kVA 2kVA 3kVA 6kVA Power rating 0.7k W 1.4kW 2.1kW 4.2kW Voltage 220VAC Frequency... -
Page 12: Standards Conformity
5. T ECHNICAL 5.4 S TANDARDS CONFORMITY 1K(S)/2K(S)/3K(S) Conducted Emission: EN50091-2 Class B Radiated Emission: EN50091-2 Class B Harmonic Current: EN61000-3-2 Voltage Fluctuations and Flicker: EN61000-3-3 EMS: EN61000-4-2(ESD) Level 4 EN61000-4-3(RS) Level 3 EN61000-4-4(EFT) Level 4 EN61000-4-5( Lighting Surge) Level 4 EN61000-2-2(Immunity to low frequency signals) Conducted Emission: EN50091-2 Rated output current exceeding 25A limits... -
Page 13: Rs232 Interface
5. T ECHNICAL 5.5.1 RS232 INTERFACE The following is the pin assignment and description of DB-9 connector. Pin# Description RS232 Tx Output RS232 Rx Input Ground Input RS232 Interface 5.5.2 AS400 INTERFACE Except for the communication protocol as mentioned above, this series UPS has an optional AS400 card for AS400 communication protocol.
