Santak ARRAY 4 User Manual page 14

5. INSTALLATION

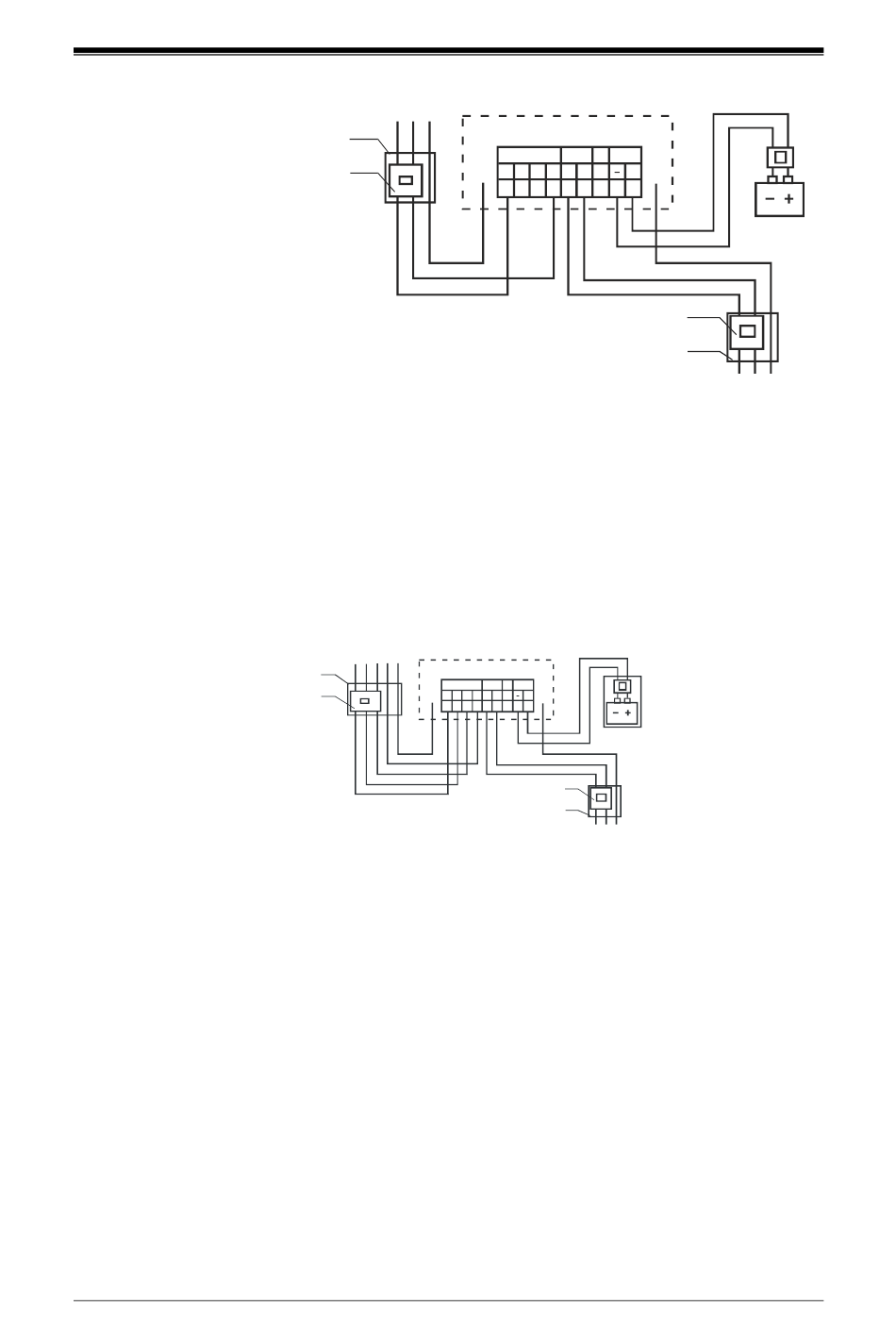

1) Wiring for single-phase input
Distribution Panel
※
Note
2) Wiring for three-phase input
Distribution Panel
※
Note
L N G
Mains input
Mains input
Breaker
Single-phase Input Connection Diagram
：
For the single-phase input wiring, the live (L) wire must be connected to the R-phase of
the input terminals, not to the S or T phase terminal, otherwise, the UPS will consider
the utility power abnormal
R S T N G
Mains input
Mains input
Breaker
Three-phase input connection diagram
：
Make sure that the phase sequence is correct for three-phase mains input wiring, If the
phase sequence is wrong, the UPS cannot start up and will emit warning alarm and the
LCD will display "phase sequence error". The N wire of mains input must be connected
to the N terminal of the input for input wiring of the UPS system!
UPS
Input
Output
R S T N L N
G
Distribution Panel
UPS
Input
Output b attery
R S T N L N +
G G
Output
Breaker
Output
Distribution Panel
L N G
To load
11
battery
+
G
Output
Breaker
Output
L N G
To load
Remark: the three phases
are marked with R, S and T.
If adopting A, B and C mark,
the R-phase, S-phase and
T-phase correspond to the
A-phase, B-phase and
C-phase.
