5. INSTALLATION

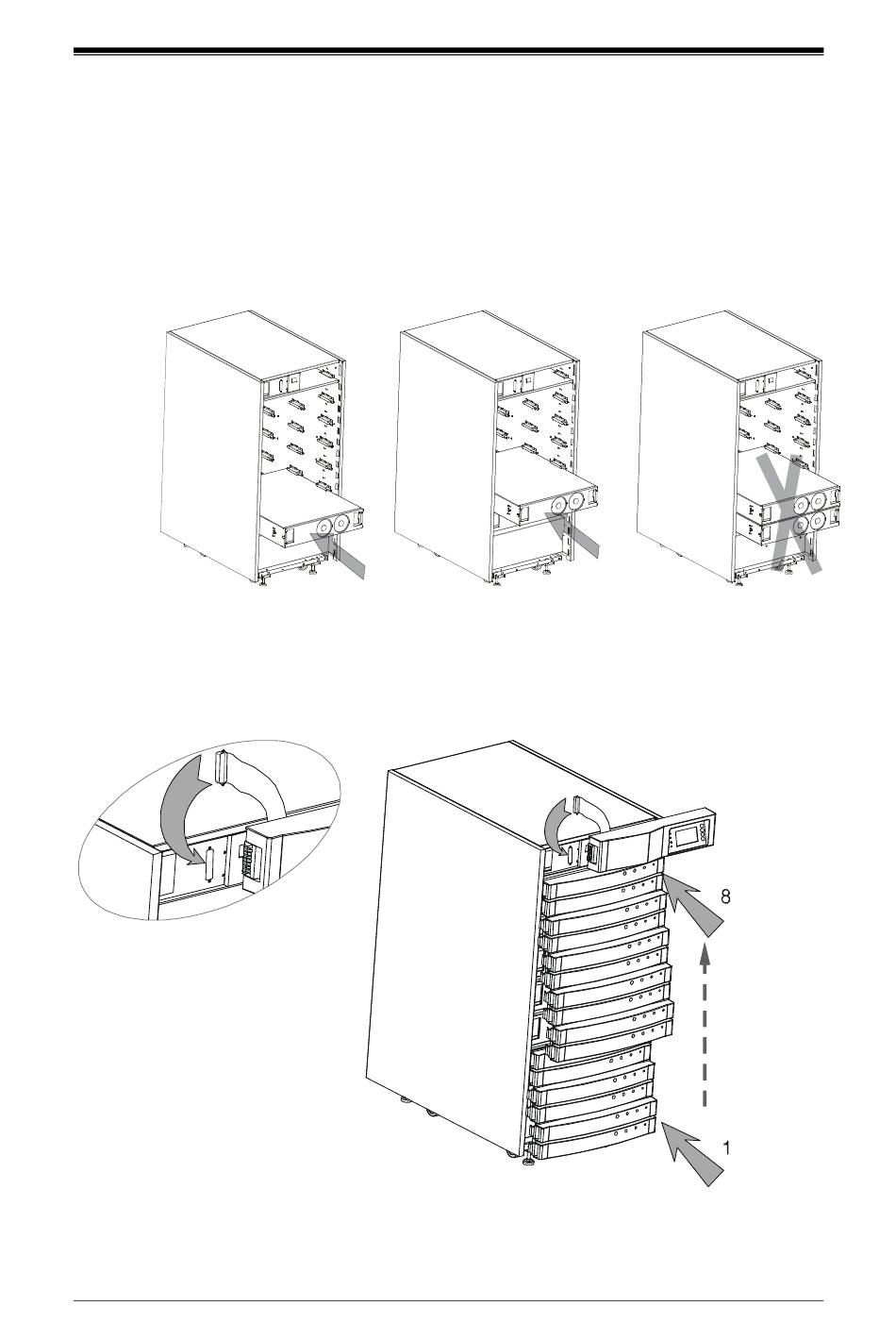

4) Insert all the UPS-Modules into the bays of the frame one after another. (Refer to
Fig.7-Fig.9)
※ ：
Note Push each module firmly until it is latched to the frame. Repeat for each additional module.
5) Install the plastic cover panels one by one in ascending order. (Refer to Fig.10).
6) Install the LCD panel: plug the communication cable on the LCD panel to the port of the
communication module. Secure the connector of the LCD communication cable with
attached screws, then install the panel on the front top of the frame.
Fig. 7 Fig. 8
Fig. 10
15
Fig. 9
