980 User Guide – MHL Compliance Tests
Rev. B29
3.6
Selecting which tests to run
Use the following procedures to select the tests to run. There are multiple tabs which correspond to each section in
the CTS.
To select the tests to run:

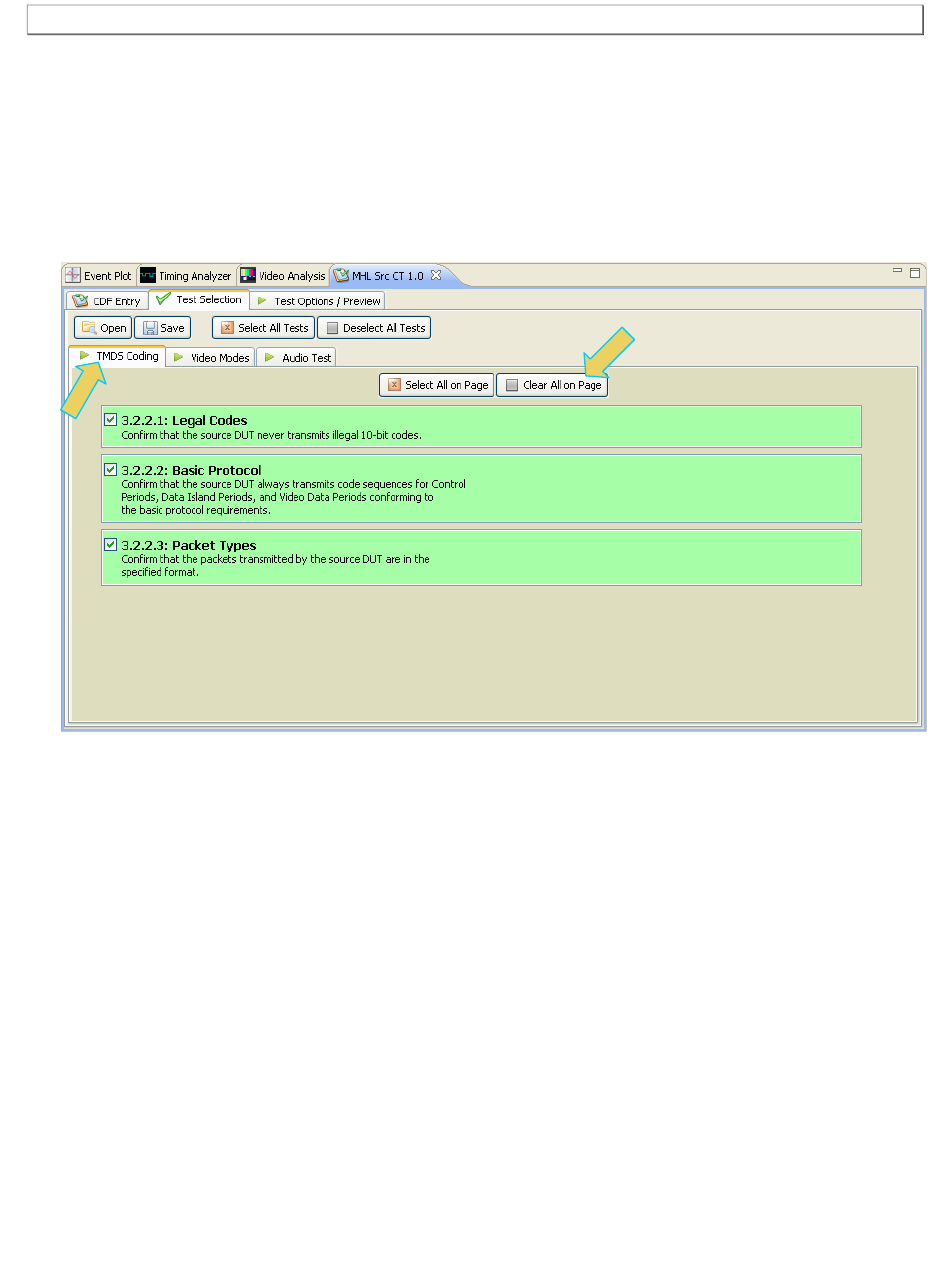

1. Select the Test Selection panel as shown below.
2. Complete the items in the TMDS Protocol tab of the Test Selection panel shown below.
Page 32
July 26, 2011
