980 User Guide – MHL Compliance Tests

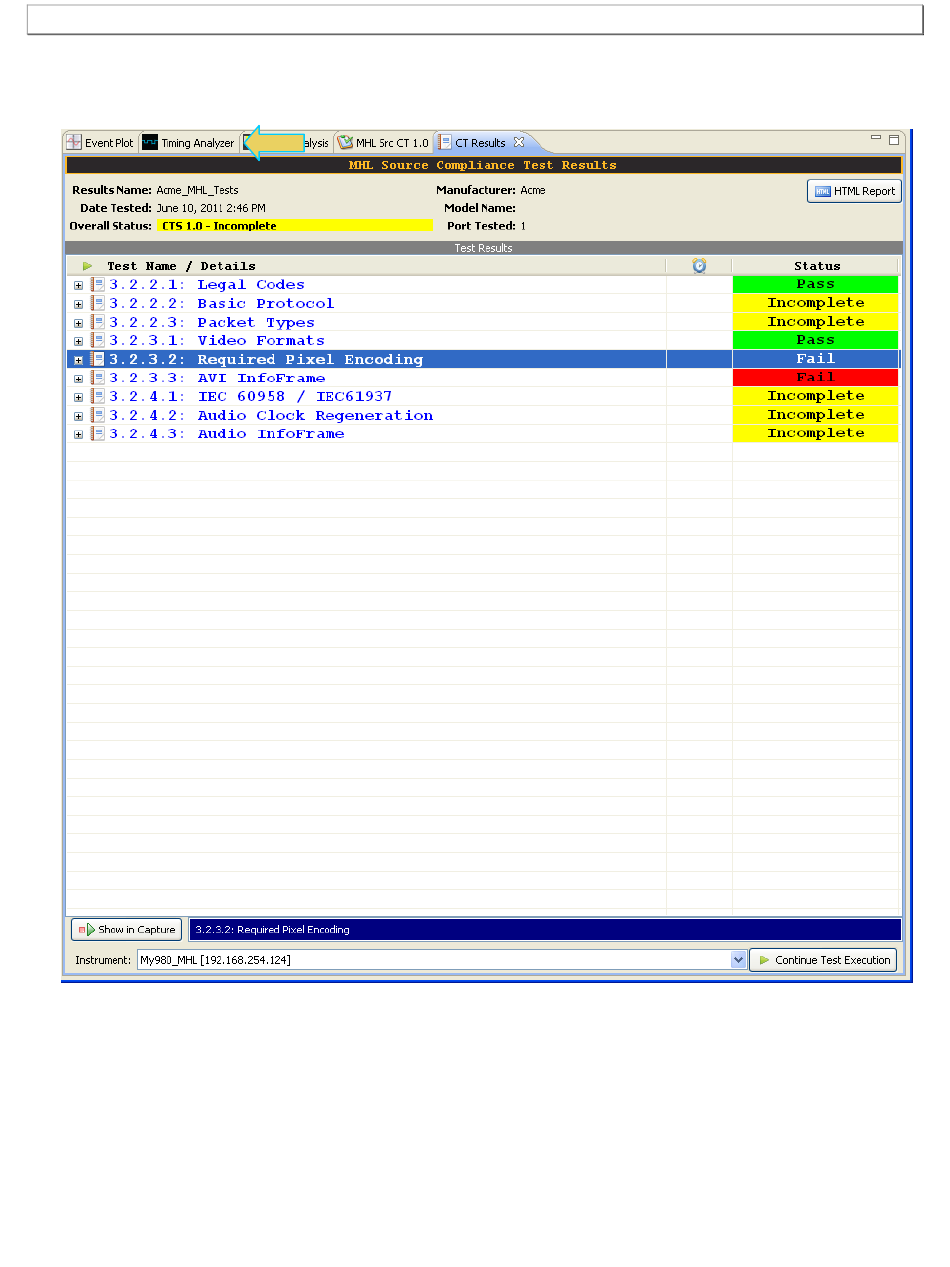

When the tests are completed the test window that shows the current activity will close. A new tab and panel
will appear next to the MHL Src CT 1.0 tab called the CT Results tab. You can view the test results in this
panel. Refer to the following screen shots to see examples of the CT Results panel.
Page 43
Rev. B29
July 26, 2011
