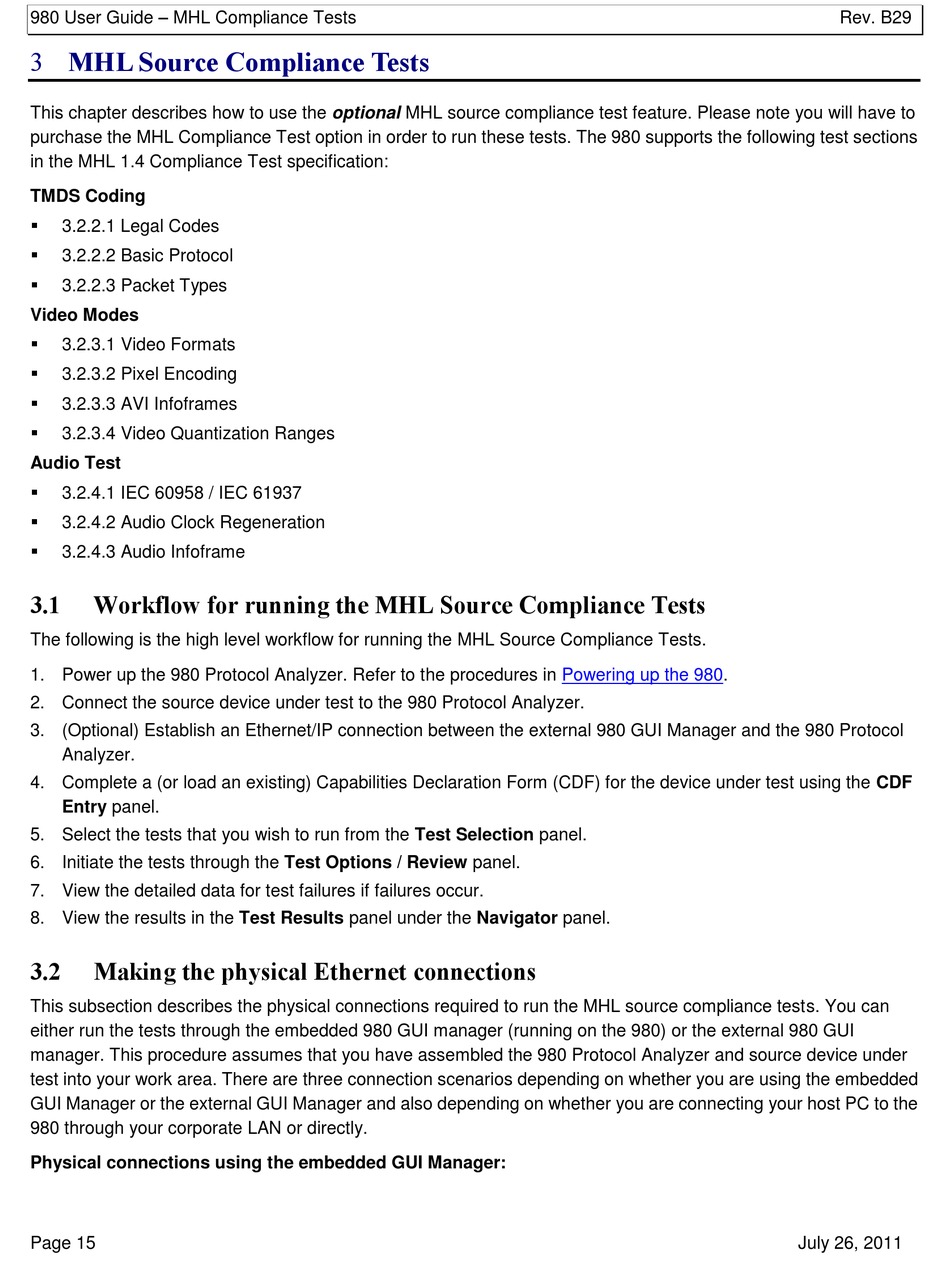

980 User Guide – MHL Compliance Tests

3 MHL Source Compliance Tests

This chapter describes how to use the optional MHL source compliance test feature. Please note you will have to
purchase the MHL Compliance Test option in order to run these tests. The 980 supports the following test sections
in the MHL 1.4 Compliance Test specification:
TMDS Coding

3.2.2.1 Legal Codes

3.2.2.2 Basic Protocol

3.2.2.3 Packet Types
Video Modes

3.2.3.1 Video Formats

3.2.3.2 Pixel Encoding

3.2.3.3 AVI Infoframes

3.2.3.4 Video Quantization Ranges
Audio Test

3.2.4.1 IEC 60958 / IEC 61937

3.2.4.2 Audio Clock Regeneration

3.2.4.3 Audio Infoframe
3.1

Workflow for running the MHL Source Compliance Tests

The following is the high level workflow for running the MHL Source Compliance Tests.
1. Power up the 980 Protocol Analyzer. Refer to the procedures in
2. Connect the source device under test to the 980 Protocol Analyzer.
3. (Optional) Establish an Ethernet/IP connection between the external 980 GUI Manager and the 980 Protocol
Analyzer.
4. Complete a (or load an existing) Capabilities Declaration Form (CDF) for the device under test using the CDF
Entry panel.
5. Select the tests that you wish to run from the Test Selection panel.
6. Initiate the tests through the Test Options / Review panel.
7. View the detailed data for test failures if failures occur.
8. View the results in the Test Results panel under the Navigator panel.
3.2 Making the physical Ethernet connections
This subsection describes the physical connections required to run the MHL source compliance tests. You can
either run the tests through the embedded 980 GUI manager (running on the 980) or the external 980 GUI
manager. This procedure assumes that you have assembled the 980 Protocol Analyzer and source device under
test into your work area. There are three connection scenarios depending on whether you are using the embedded
GUI Manager or the external GUI Manager and also depending on whether you are connecting your host PC to the
980 through your corporate LAN or directly.
Physical connections using the embedded GUI Manager:
Page 15
Powering up the 980.
Rev. B29
July 26, 2011
