980 User Guide – MHL Compliance Tests
Rev. B29
3.2.1 Establishing a Management Session between the 980 Manager and the 980 Protocol
Analyzer

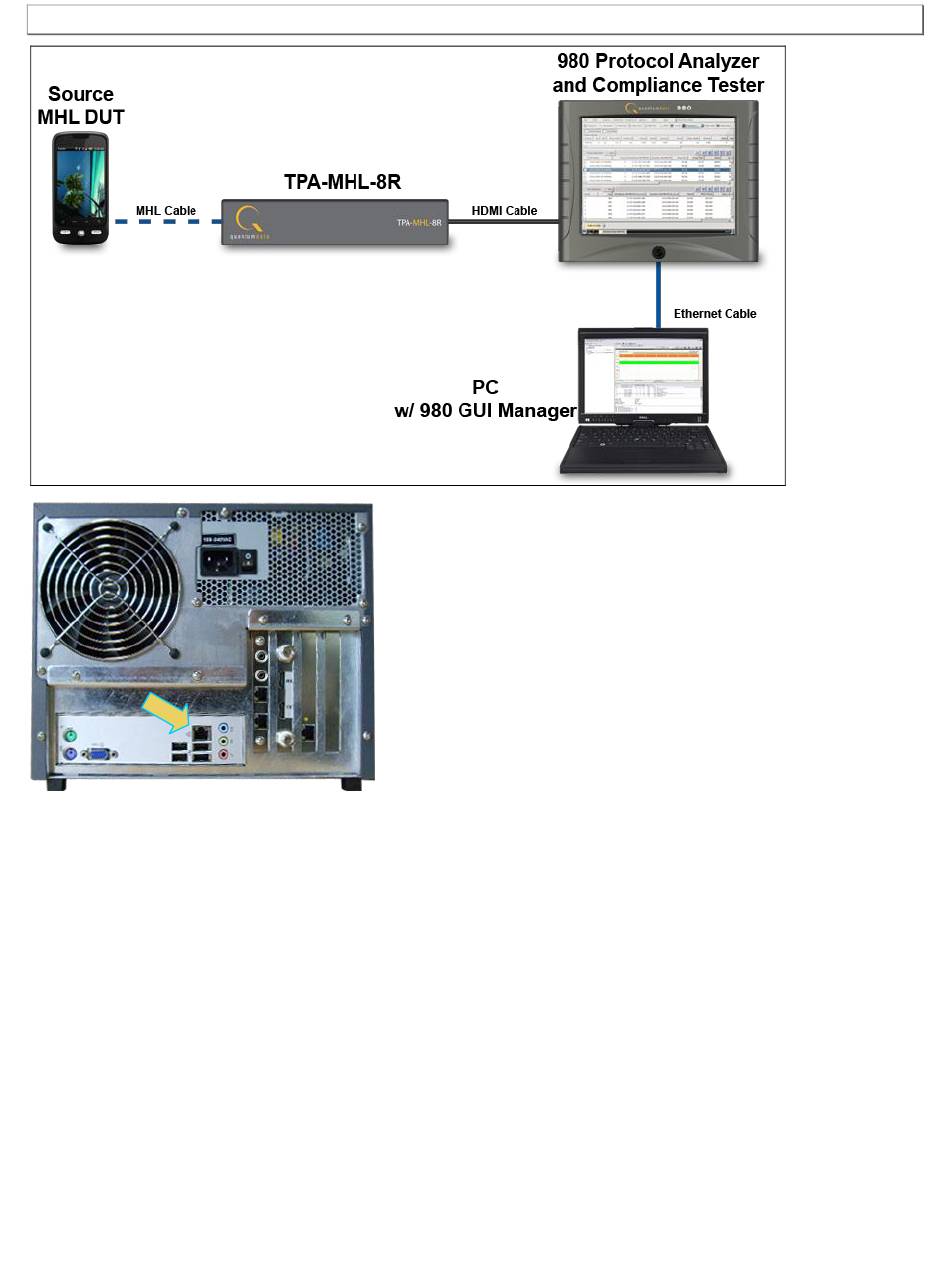

This procedure describes how to establish a management session between your 980 Manager and the 980
Protocol Analyzer. The procedure assumes that you have IP addresses provisioned in the 980 and the PC hosting
the 980 Manager and that you have a suitable Ethernet cable connected between the PC and the 980.
+
+
1. Add your 980 Protocol Analyzer to the 980 Manager application using the green
icon or the
Add
item on the
identified below.
Instrument pull-down menu
Page 18
July 26, 2011
