980 User Guide – MHL Compliance Tests

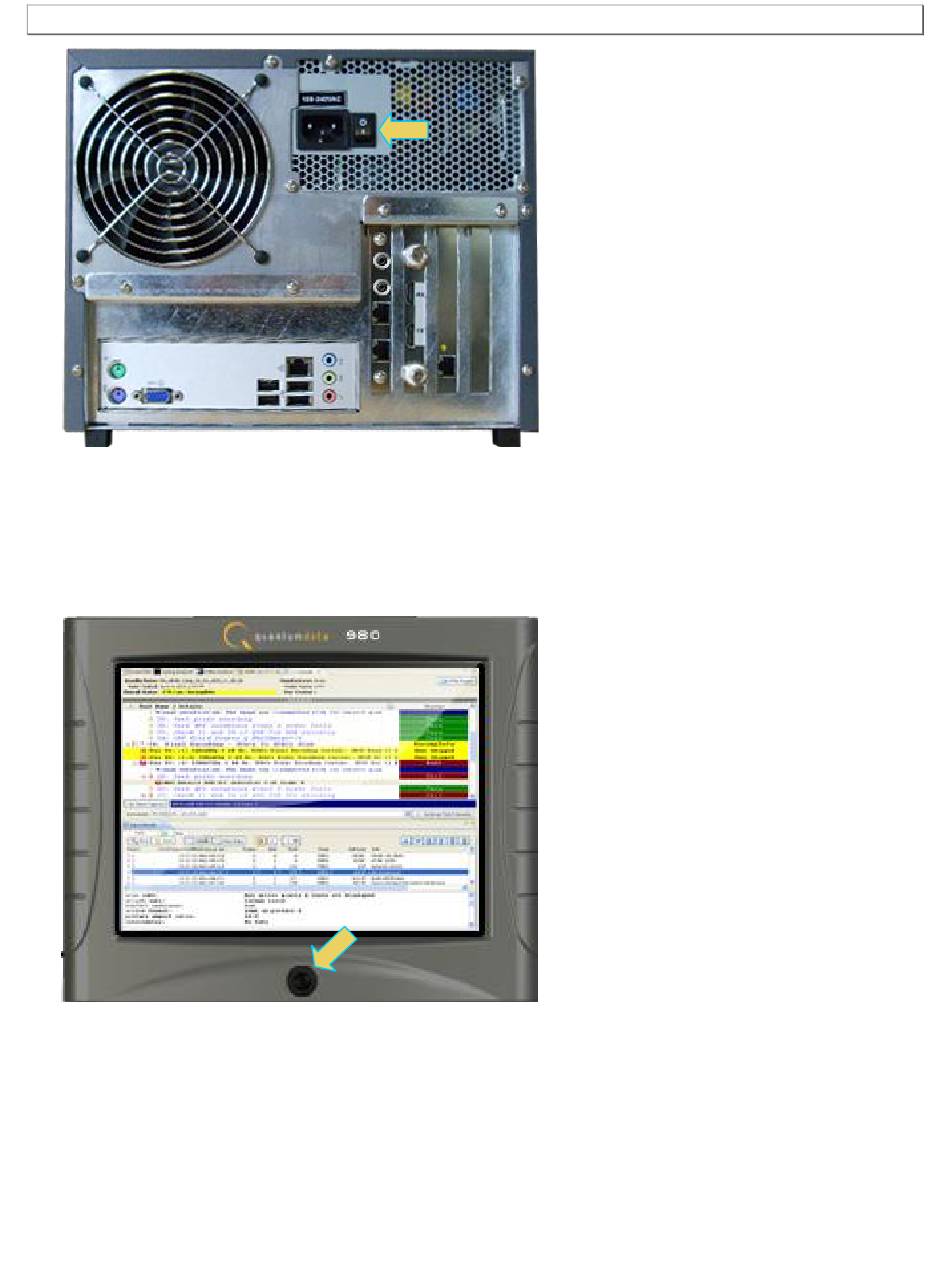

Note: The power switch in the front is used when you are turning off the 980 Protocol Analyzer for a short
period of time. For extended off periods, it is best to power down the 980 Protocol Analyzer by first using the
power button on the front and then the rocker switch on the back.
2. Turn the 980 on by pressing and releasing the power button on the lower portion of the front panel.
Page 9
Rev. B29
July 26, 2011
