Quantum Data 980 User Manual page 65

980 User Guide – MHL Compliance Tests

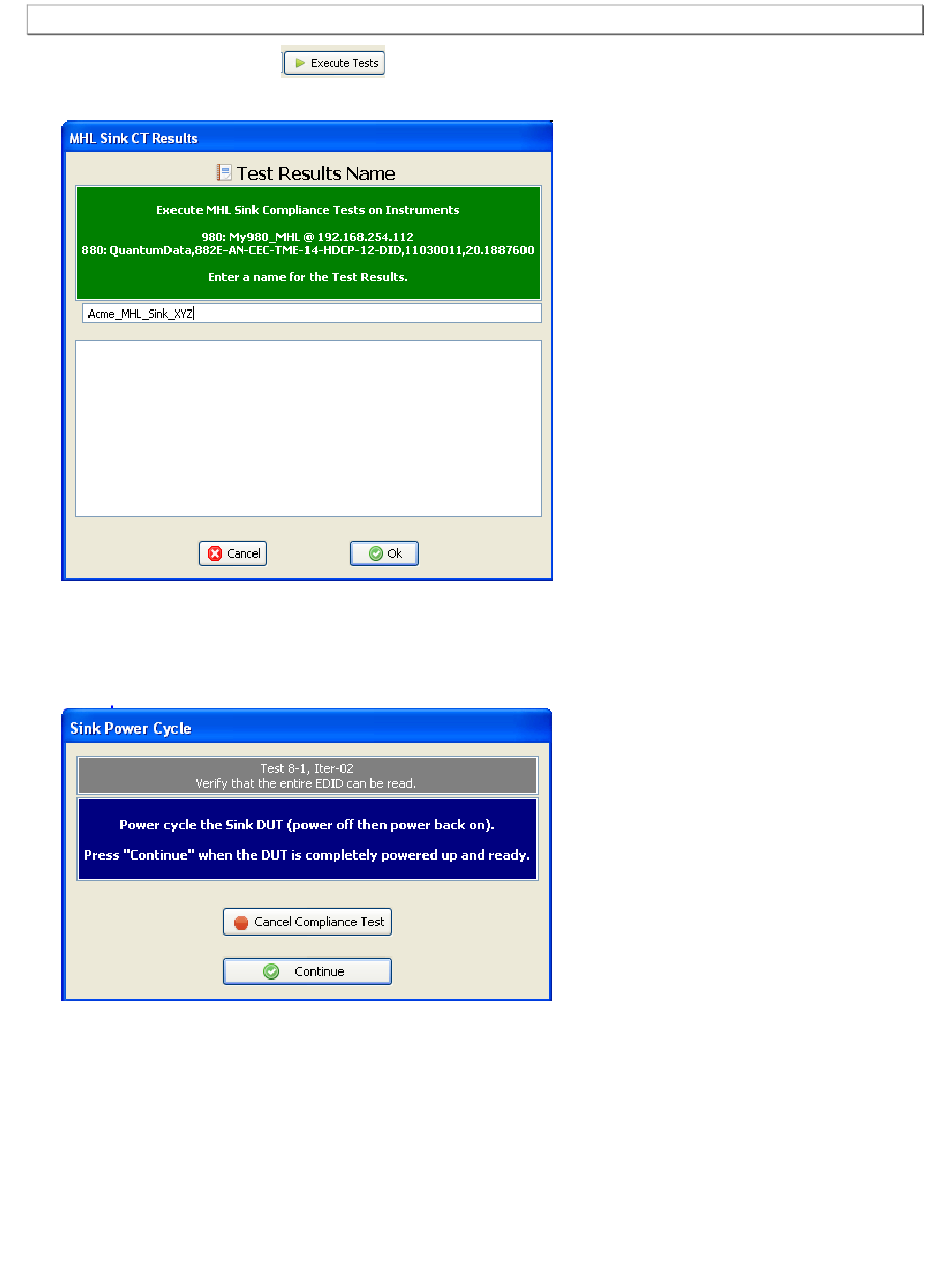

Click on the Execute Tests
name for the tests. This dialog box is shown below.
During the tests a Required DUT Configuration dialog box will appear which requires that you to verify that
the source device under test is in the correct mode (video and audio format are correct). The following screen
shot depicts this. Press Continue when you have the source device in the correct mode. You can cancel the
test using the Cancel Compliance Test button.
During the test, you will be asked to observe your sink device under test and select Pass or Fail depending on
whether your sink device is displaying the video properly.
Page 65
activation button to initiate the test suite. You will be prompted for a
