980 User Guide – MHL Compliance Tests
This procedure assumes that you have assembled the 980 Protocol Analyzer and source device under test and
applied power to all these devices. Refer to the procedures and diagram below.

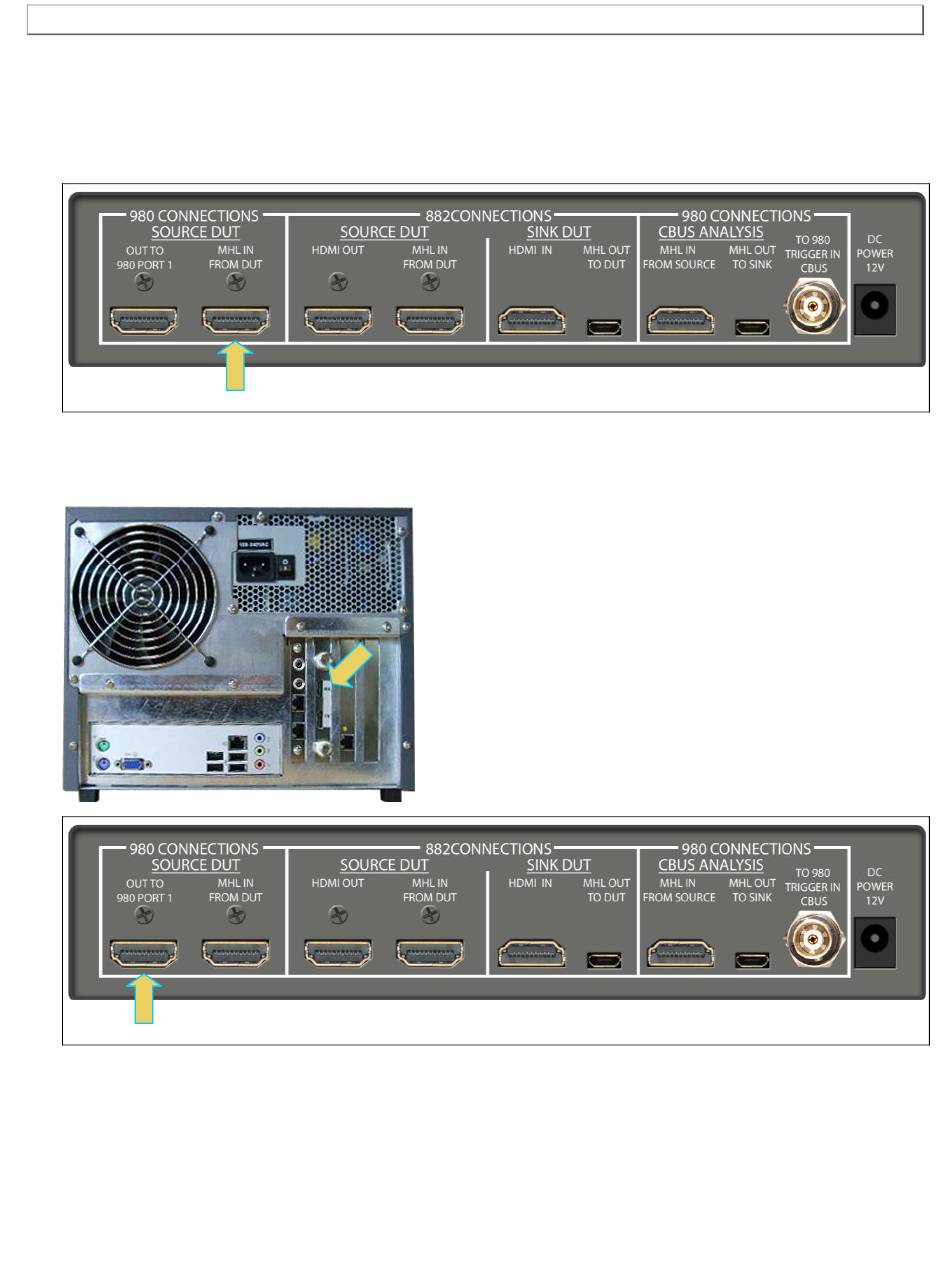

1. Connect your MHL source device under test to the TPA-MHL-8R Test Point Adapter. Use the MHL IN FROM
DUT connector on the section on the TPA labeled 980 CONNECTIONS – SOURCE DUT. Use an MHL
compliant cable connecting the HDMI end to the TPA and the micro USB end to the MHL source.
2. Using an HDMI cable, connect the TPA-MHL-8R Test Point Adapter to the 980 Protocol Analyzer. Connect the
HDMI cable to the topmost HDMI connector on the 980 labeled Rx. Use the OUT TO 980 PORT 1 connector
on the section on the TPA labeled 980 CONNECTIONS – SOURCE DUT. Use an HDMI-compliant cable.
3.4

Setting the 980 Mode to MHL

Use the following procedures to set the 980 Protocol Analyzer to the MHL mode.
To set the 980 mode to MHL:
Page 23
Rev. B29
July 26, 2011
