980 User Guide – MHL Compliance Tests

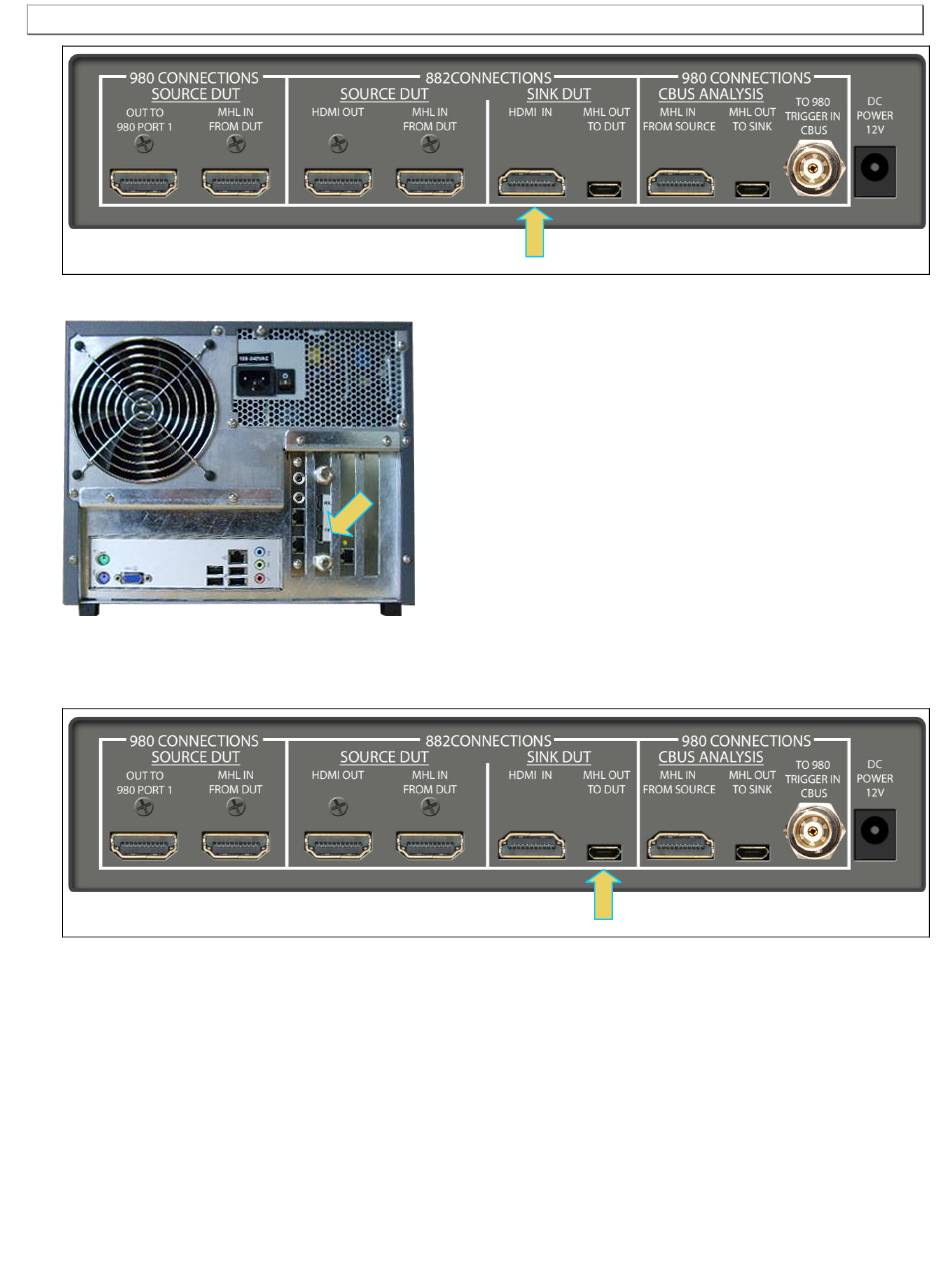

2. Connect the TPA-MHL-8R Test Point Adapter to the MHL sink device under test. Use the MHL OUT TO DUT
connector on the section on the TPA labeled 882 CONNECTIONS – SINK DUT. Use an MHL compliant cable
connecting the HDMI end to the TPA and the micro USB end to the MHL source.
To initiate a test series:
1. Select the Test Options / Preview panel as shown below.
