980 User Guide – MHL Compliance Tests
To make the physical Ethernet connections when using the embedded GUI Manager:
Use this procedure when you are running the MHL sink compliance test suite through the embedded 980 GUI
Manager. This procedure assumes that you have assembled the 882E/EA, 980 Protocol Analyzer and sink device

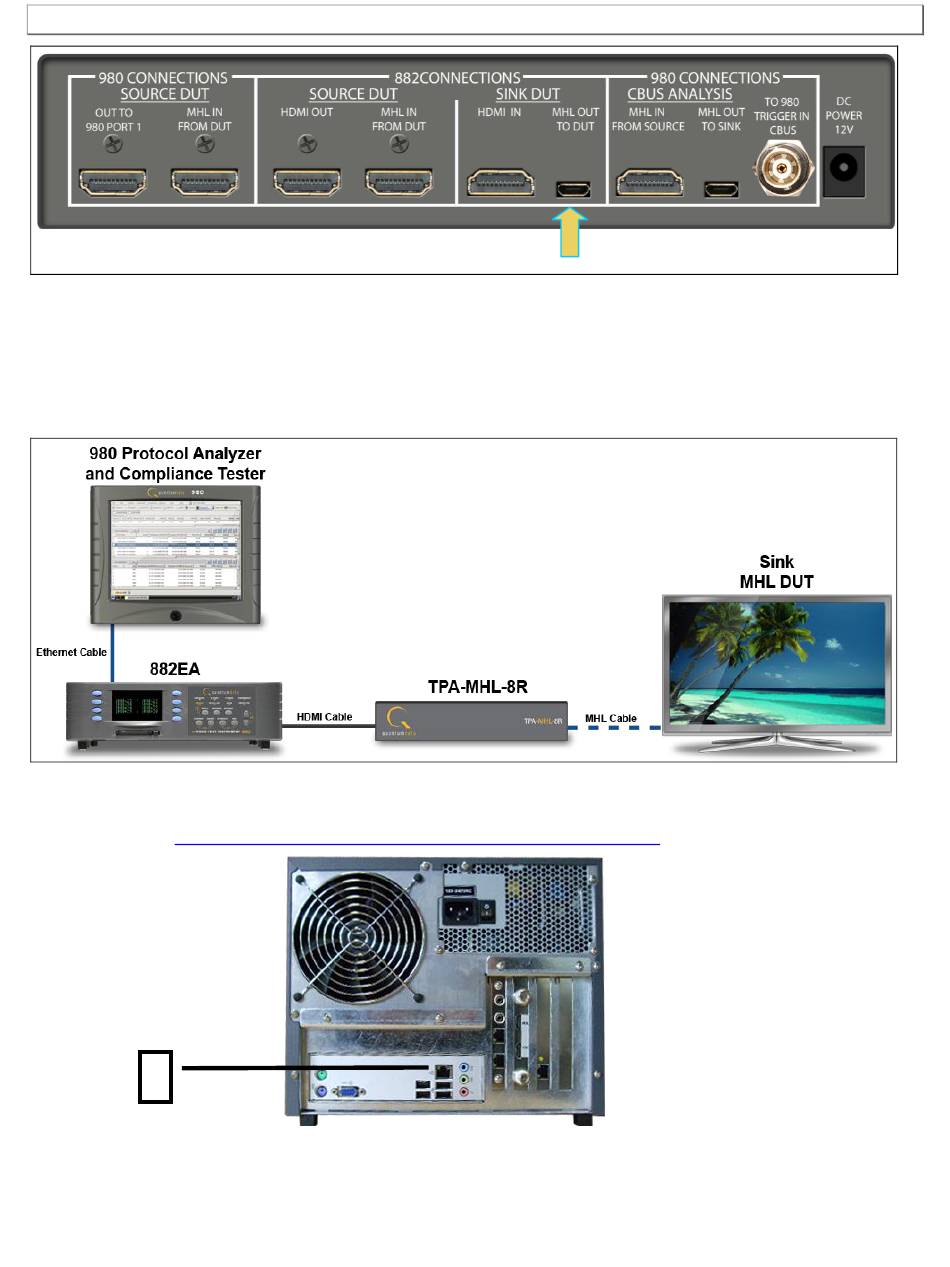

under test and applied power to all these devices. Refer to the procedures and diagram below.
1. Connect an Ethernet cable from the 980 Ethernet jack on the lower left half of the back panel of the 980
Protocol Scope frame (refer to the diagram below). The IP address on this port can be configured using the
procedures at Connection Scenarios for 980 Manager to 980 Protocol
1
To make the physical connections using Ethernet network connections with the external GUI Manager:
Page 52
Scope.
