980 User Guide – MHL Compliance Tests

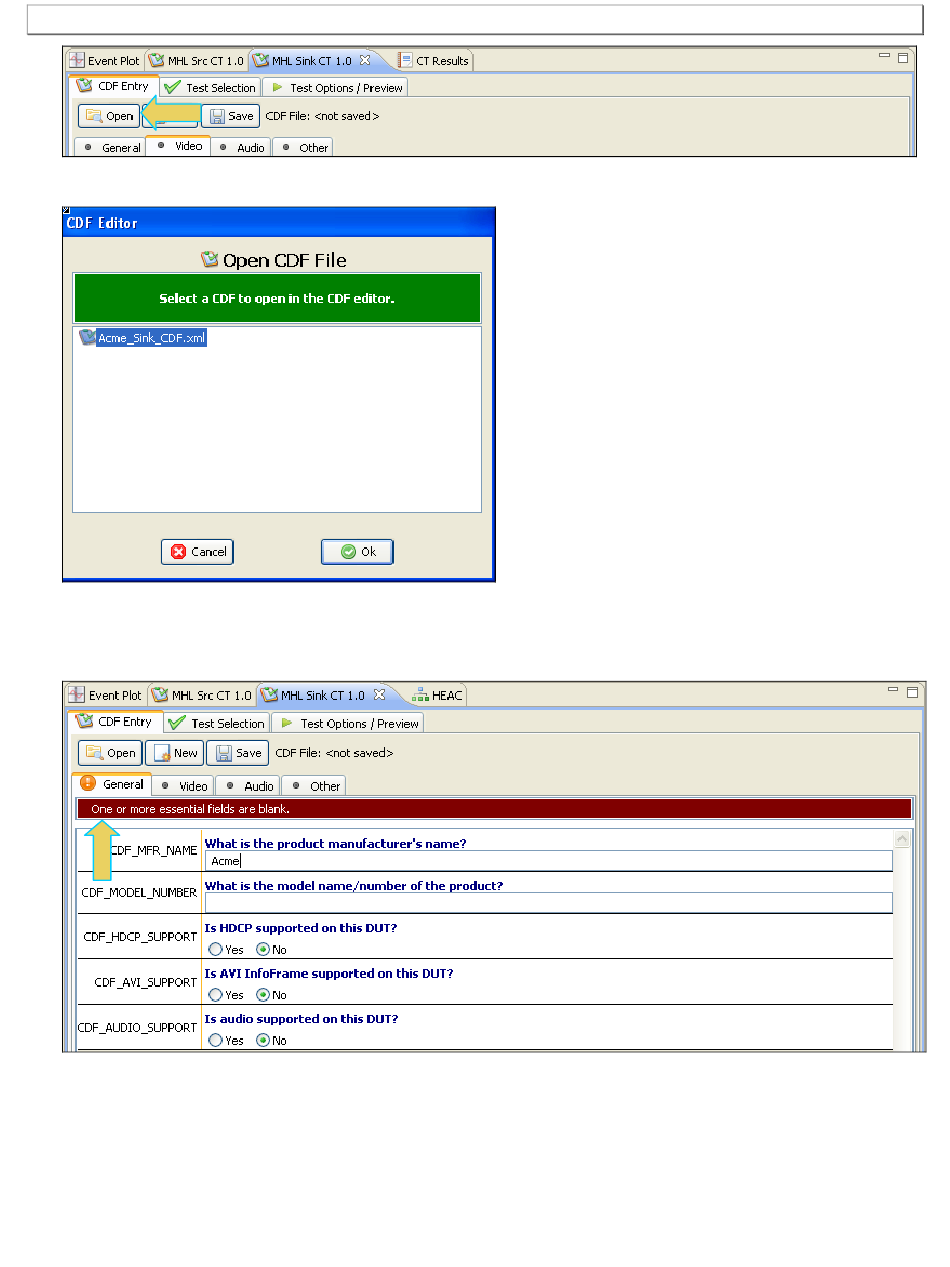

You will be prompted with a dialog box that enables you to open a CDF. Select a CDF and then OK to proceed.
5. Complete the items in the General tab of the CDF Entry panel shown below. Note that you will have to
complete the essential fields in order to proceed. A read status message will appear indicating if you have not
completed all the essential fields.
Page 56
Rev. B29
July 26, 2011
