980 User Guide – MHL Compliance Tests

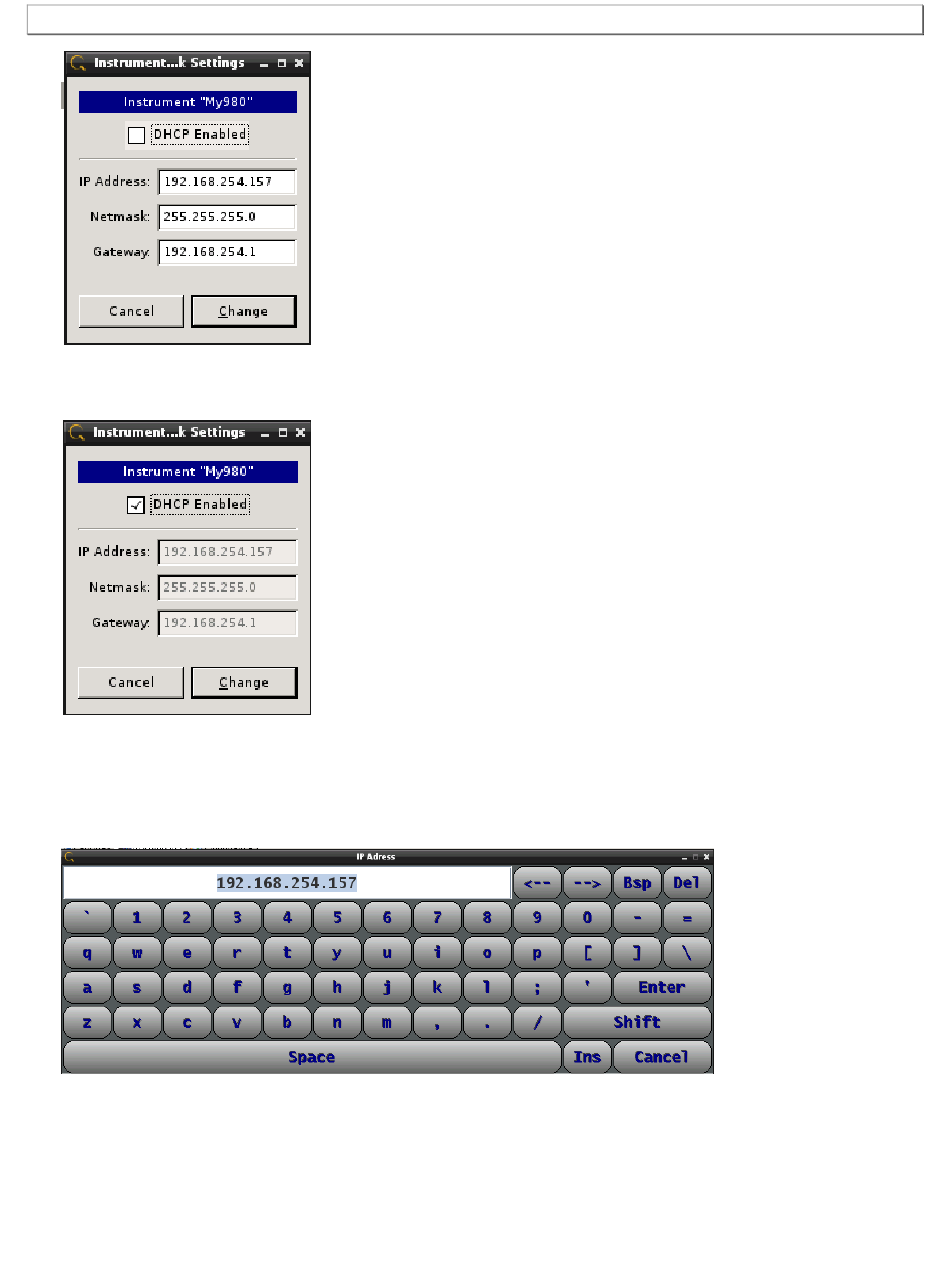

3. If you are wish to allow the 980's IP address to be set through DHCP services, select the DHCP Checkbox as
shown below:
4. Alternatively, is you wish to set the IP address without DHCP, touch select the IP address field to access the
on-line keyboard which enables you to change the IP address. Edit the IP address and press the Enter key on
the on-line keyboard.
Note: You will have to deselect DHCP if it is checked in order to access the pop up keyboard.
5. Touch select the Change activation button to initiate the change. You do not have to reboot the 980 for the IP
address change to take effect.
To set the IP address of the 980 through the command line
