Quantum Data 980 User Manual page 63

980 User Guide – MHL Compliance Tests

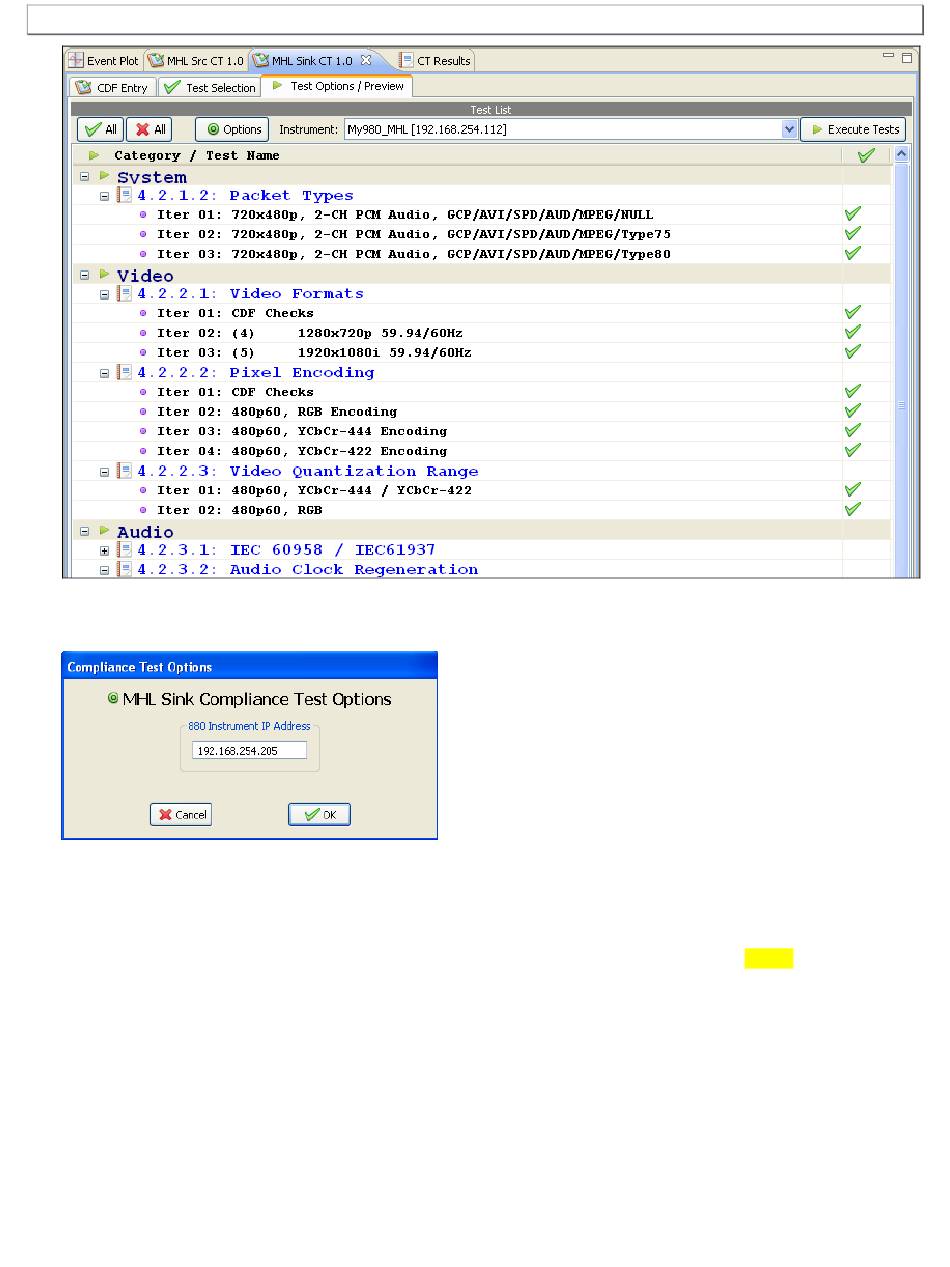

2. Set the Options for the tests. The following dialog box below appears. Note that you will have to specify the IP
address of the 882E or 882EA that you are using to initiate these tests.
When you have completed entering the IP address, click the OK activation button.
3. (Optional) Review the list of tests for each category. If you wish to skip some of the tests. You can skip tests by
clicking on the Check mark on the right side of the Test Options / Preview panel.
The screen shot below shows some of the tests that have been skipped (highlighted in yellow with a red X).
Page 63
Rev. B29
July 26, 2011
