980 User Guide – MHL Compliance Tests
4.5

Executing the MHL Sink Compliance Tests

Use the following procedures to initiate the execution of an MHL Sink Compliance test series.

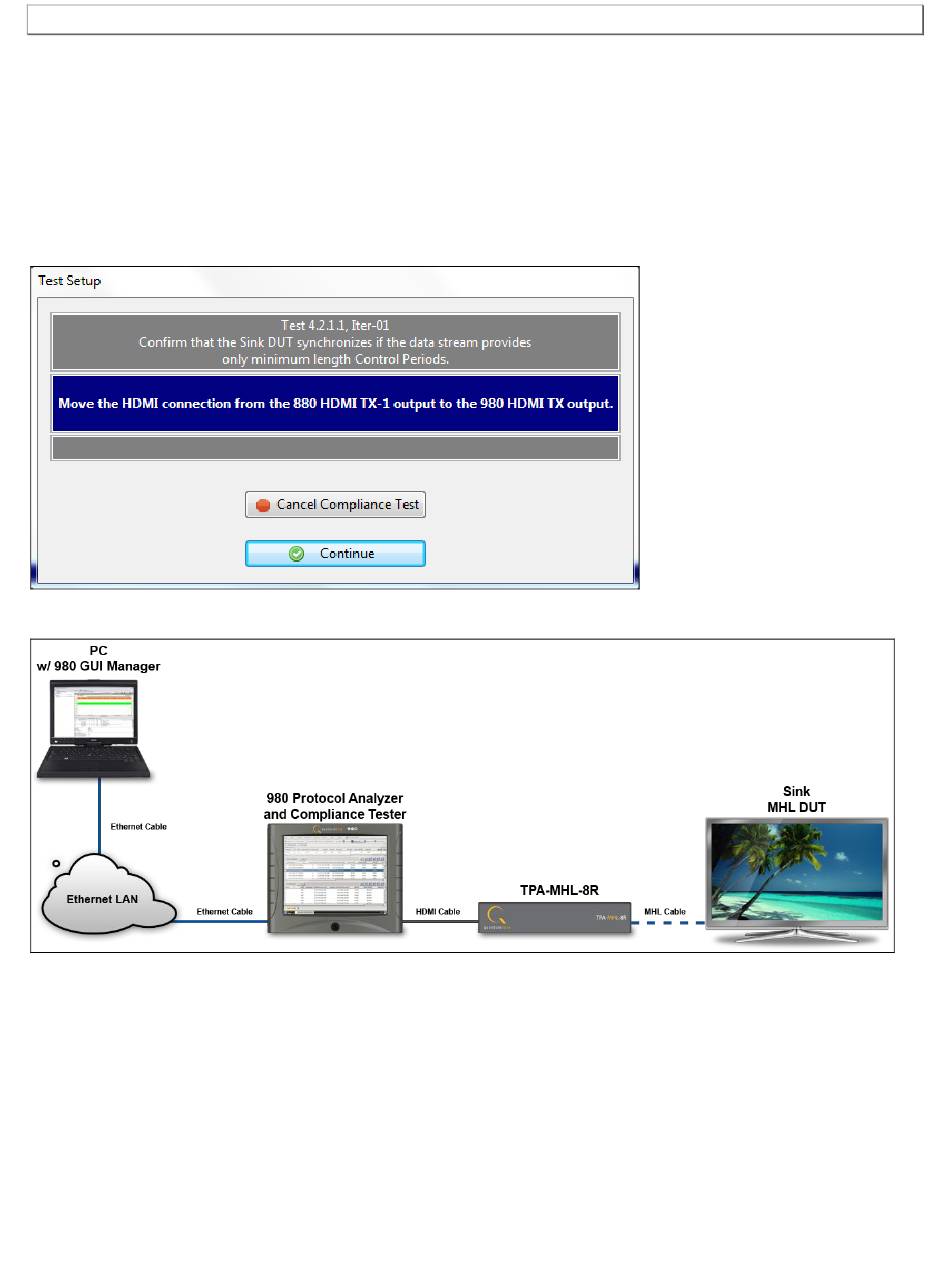

Special Note about Character Synchronization Test: The Character Synchronization test is run directly from the
980 (not through the 882E/EA). The following diagram is a depiction of the test setup for the Character
Synchronization test. When the 980 GUI Manager controller is ready to run the Character Synchronization test
4.2.1.1 during the test execution, it will instruct you to reconfigure the test setup such that the 980 Tx port is directly
connected to the MHL sink device under test. The following dialog box is presented.
The following diagram is a depiction of the test setup for the Character Synchronization test.
1. Connect an HDMI cable from the Quantum Data 980 Tx port to the TPA-MHL-8R Test Point Adapter. Use the
HDMI IN connector on the section on the TPA labeled 882 CONNECTIONS – SINK DUT. Refer to the
illustration below for the 980 Tx port.
