980 User Guide – MHL Compliance Tests

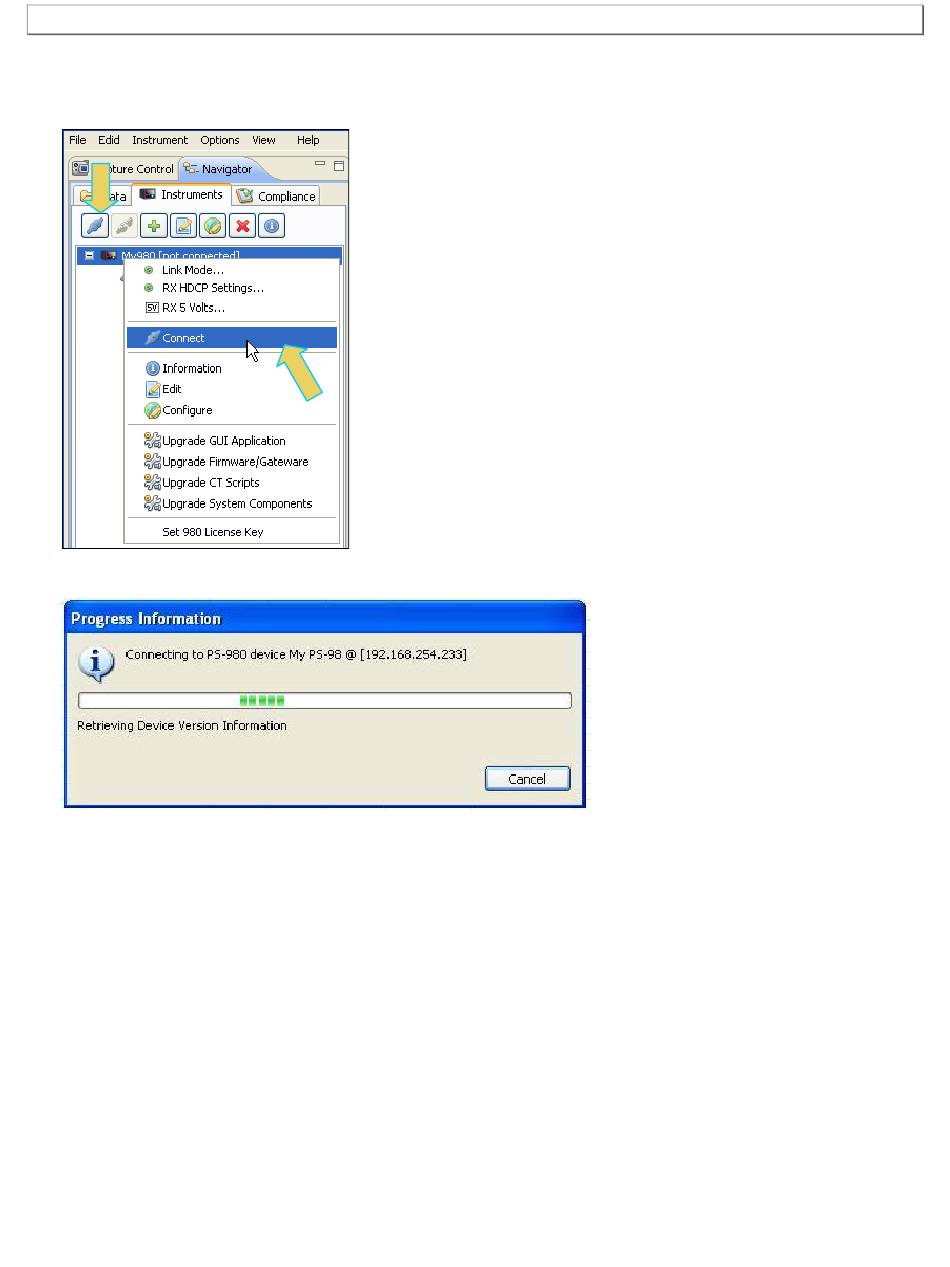

3. (If not already connected) Connect to the 980 Protocol Analyzer using either the Connect icon or the Connect
item on the right click menu as shown in the screen below. Note that you can also double click on the 980 in
the Instrument dialog box in order to initiate a connection.
A dialog box appears indicating that a connection is in progress:
Once the connection is made the information about the connected 980 Protocol Analyzer is available via the
right click menu as shown below.
