980 User Guide – MHL Compliance Tests

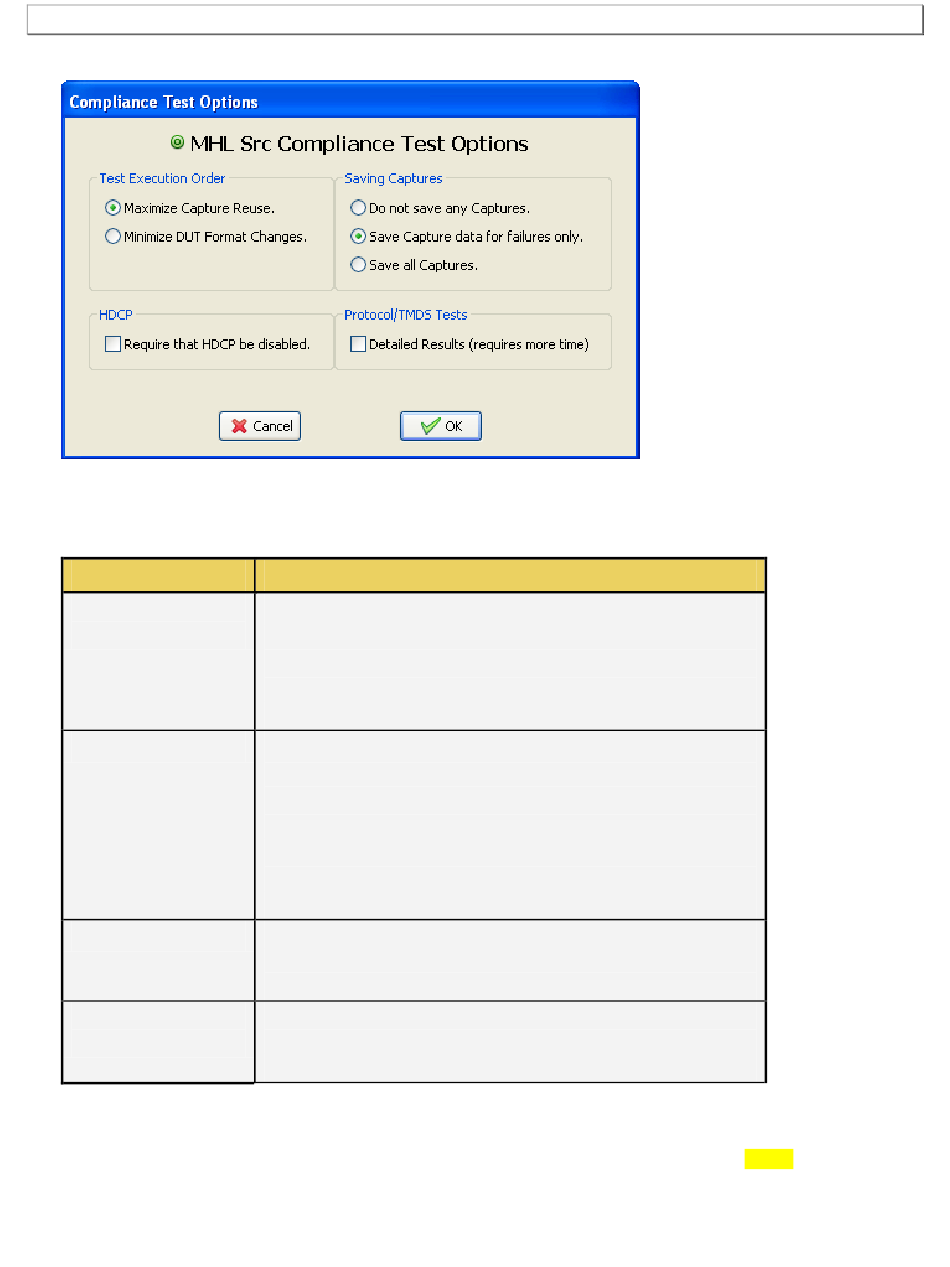

2. Set the Options for the tests. The following dialog box appears:
There are three settings you can define. These relate to what test execution order, saving captured data and
enabling or disabling HDCP content protection. The table below describes the options. When completed with
the options select the OK activation button to continue.
Option
Test Execution
Order
Saving Captures
HDCP
Protocol/TMDS
Tests
3. (Optional) Review the list of tests for each category. If you wish to skip some of the tests. You can skip tests by
clicking on the Check mark on the right side of the Test Options / Preview panel.
The screen shot below shows some of the tests that have been skipped (highlighted in yellow with a red X).
Page 36
Description
There are two selections:
Maximize Capture Reuse – Will run tests in an order that
-
will be quicker because it reuses captures.
Minimize DUT format changes – Will run tests in an order
-
that will minimize user interaction in changing formats.
There are three selections:
Do not save any captures – no captures are saved
-
regardless of the results, pass or fail.
Save Capture data for failures only – Saves only captures
-
for tests where failures occur.
Saves all Captures – Saves all captures regardless of the
-
results, pass or fail.
Require that HDCP be disabled - A check box that when
selected will only run the tests if HDCP content protection on
the source is disabled.
Detailed Results (requires more time) - A check box that when
selected will provide detailed results. If unchecked you will just
receive summary results.
