980 User Guide – MHL Compliance Tests
During the test, the test results are shown as they occur in the Test Options / Preview panel. There is a
progress arrow which points to the test that is currently being run. Refer to the screen shot below.
The lower panel Test Log shows the testing activity as it occurs. You can cancel the compliance test or pause
at any time. If you pause the test you can resume later at any time even if you exit the 980 Manager application.

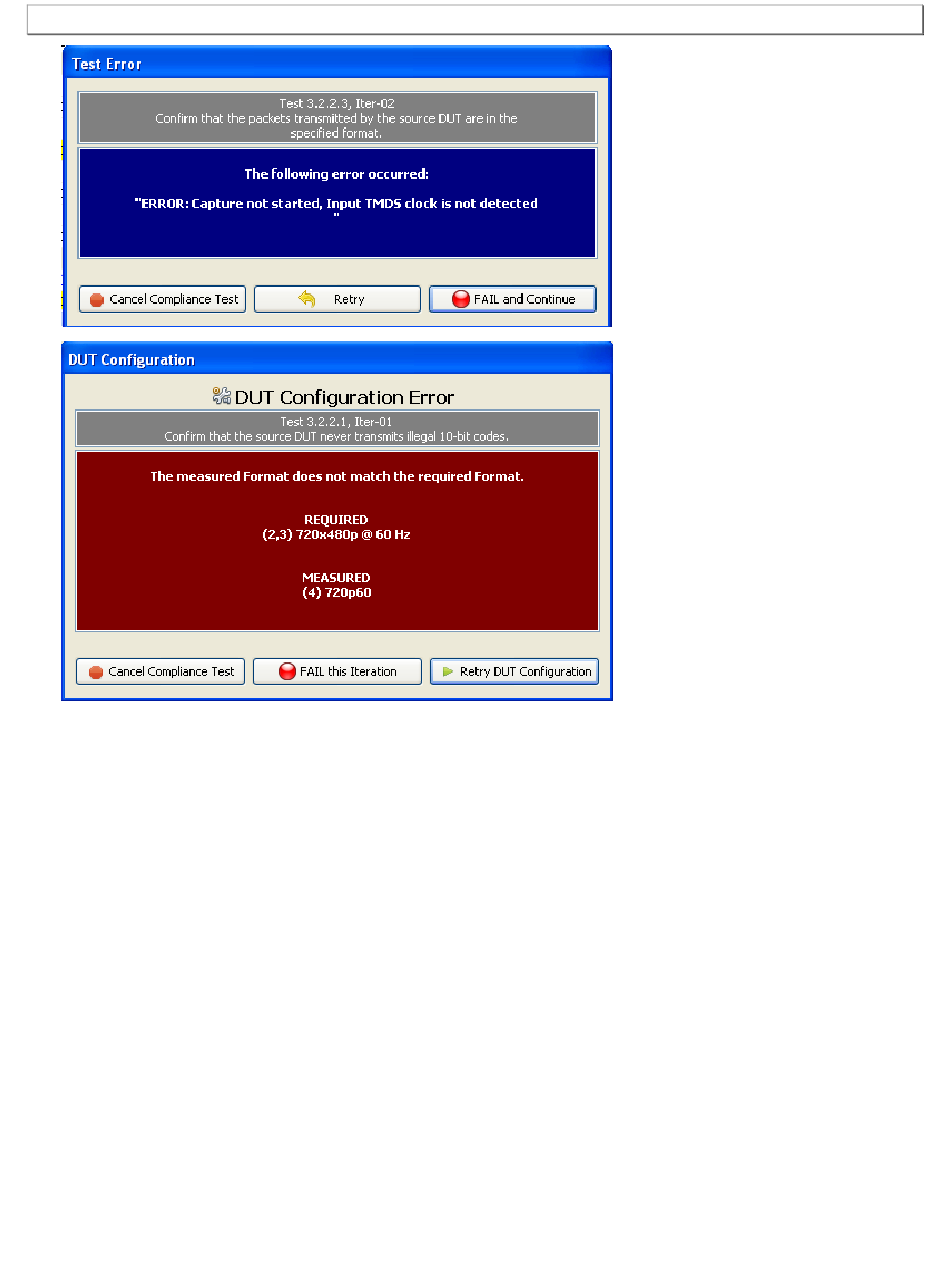

Refer to the following screen example.
Page 39
Rev. B29
July 26, 2011
