980 User Guide – MHL Compliance Tests

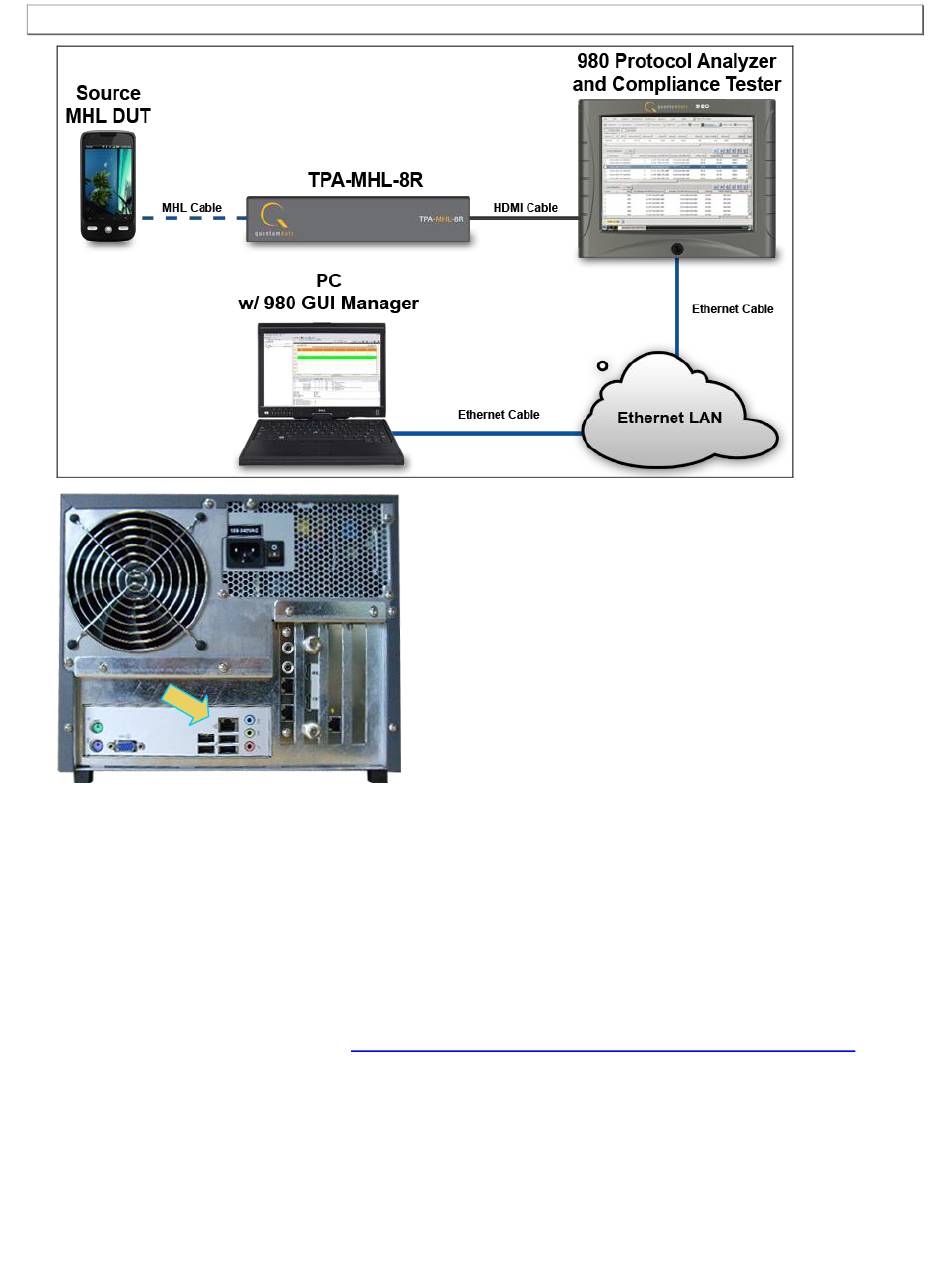

To make the physical connections using Ethernet Point-to-Point connection with the external GUI
Manager:
This procedure is used when you using the external 980 GUI Manager and connecting to the 980 directly. If you
are connecting through your corporate LAN, use the previous procedure. This procedure is required to establish an
IP session between the 980 Manager running on the 980 Protocol Analyzer. This procedure assumes that you
have assembled the 980 Protocol Analyzer, host PC and source device under test and applied power to all these
devices. Refer to the procedures and diagram below.
1. Connect an Ethernet cable from the 980 Ethernet jack on the lower left half of the back panel of the 980
Protocol Analyzer frame to your PC hosting the 980 GUI Manager. The IP address on this 980 port is
configurable using the procedures in
to the diagrams below.
Page 17
Connection Scenarios for 980 Manager to 980 Protocol
Rev. B29
Analyzer. Refer
