980 User Guide – MHL Compliance Tests
Rev. B29
3.8
Viewing Details of Source Compliance Test Failures
When you have completed the test series you will have an opportunity to view the detailed data for a particular
failure. Use the following procedures to view the details of a failure.
To view the details of a failure:

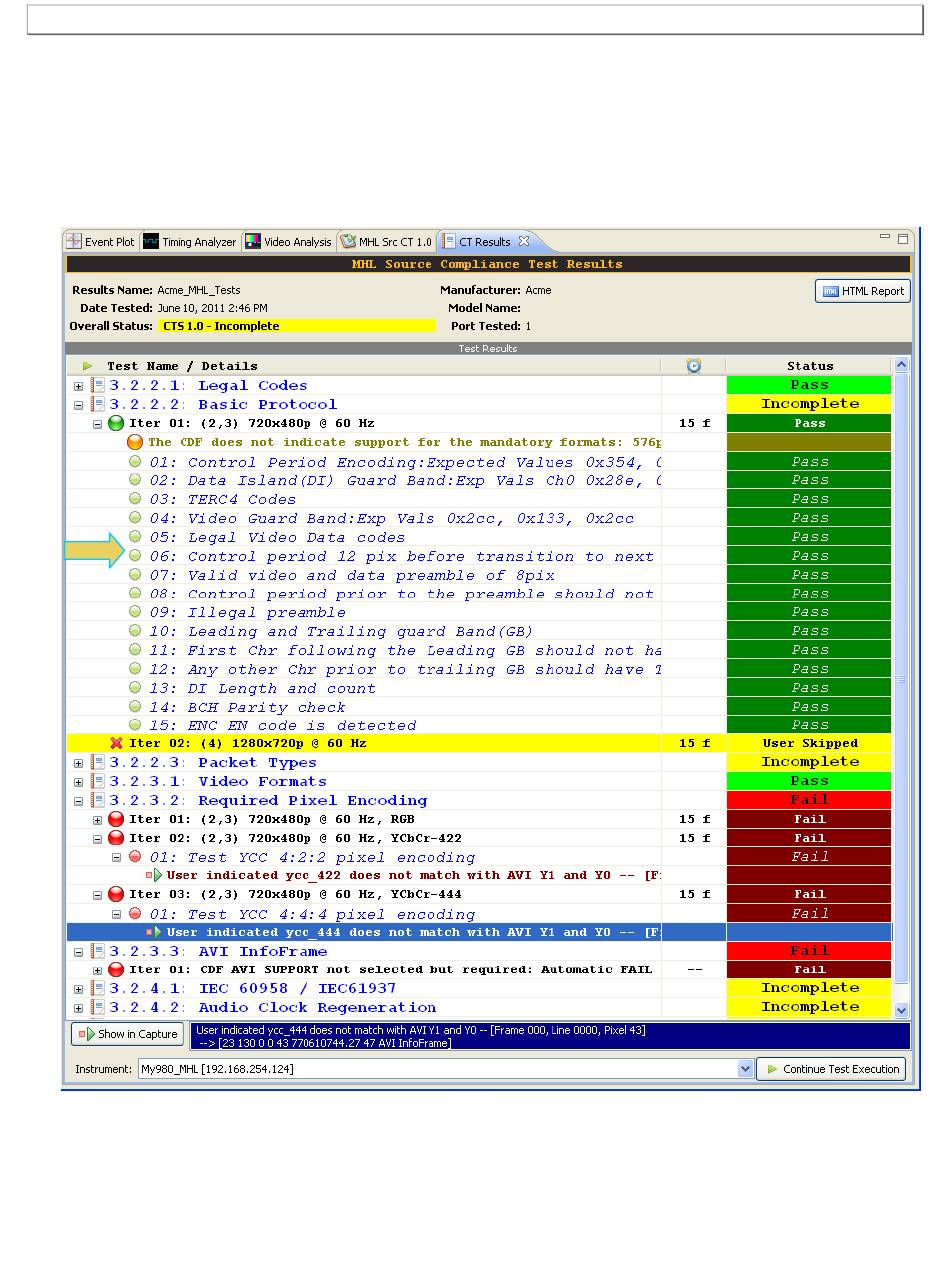

1. Expose the detailed results of a failure and highlight a failure. Refer to the screen example below.
Page 45
July 26, 2011
