Front and Back Panel LED

LED
Alarm
Error
Primary
Power
Craft
Status
LED
FA
LNK
LAN
PWR A/B
100BT

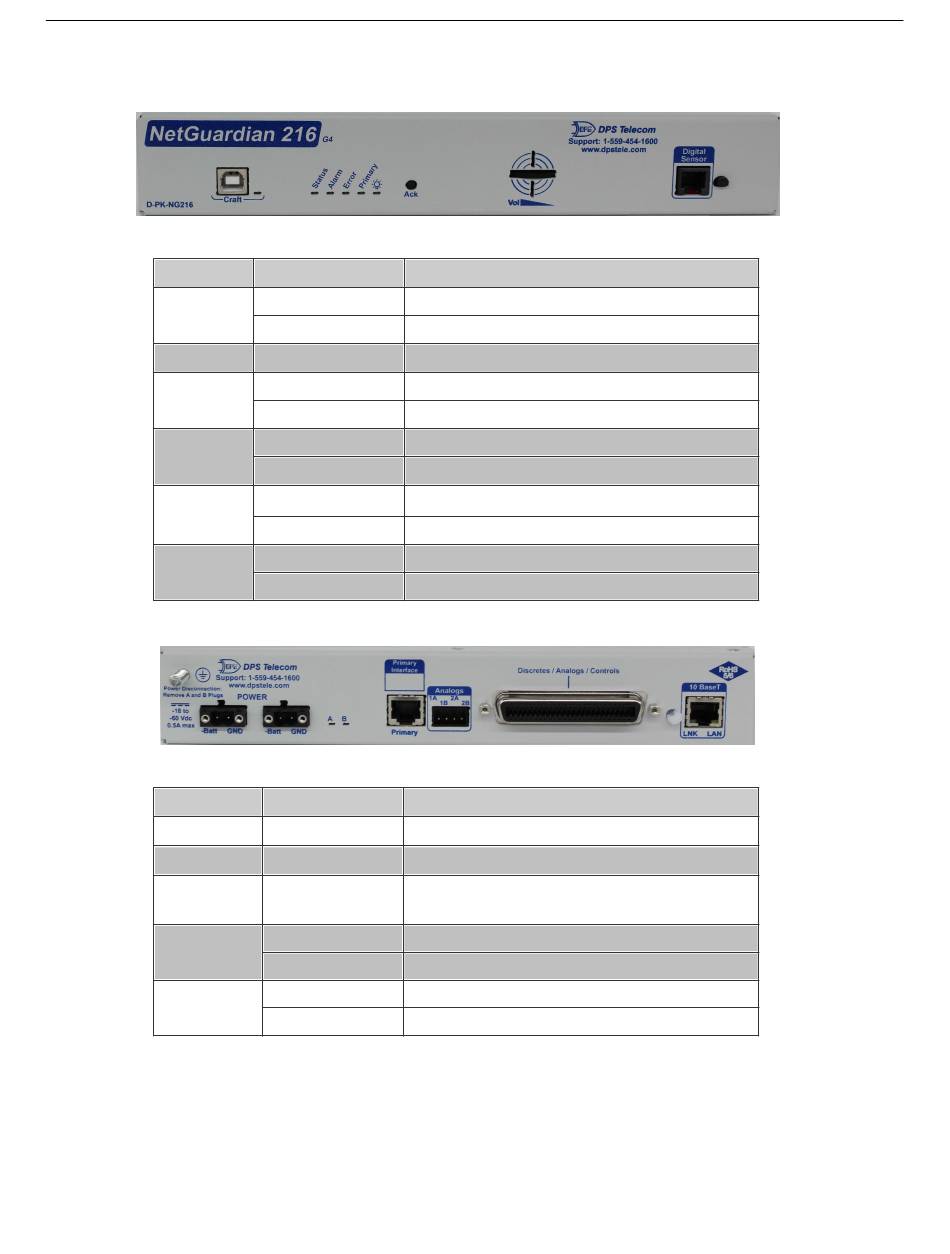

Fig. 15.1 Front panel LEDs
Status
Flashing Red New alarm
Solid Red Standing alarm acknowledged
Flashing Red System error
Flashing Green Data transmitted on PRI Serial
Flashing Red Data recieved on PRI Serial
Solid Green Power supply OK
Off No voltage or power leads reversed
Flashing Green Transmitting data over craft port
Flashing Red Receiving data over craft port
Flashing Green Application is running
Flashing Red Boot Loader is running
Front Panel LED Descriptions
Fig. 15.2 Back panel LEDs
Status
Solid Red Blown Fuse
Solid Green LAN Connected
Flashing Green Transmit and receive activity over Ethernet
port
Solid Green Power supply OK
Off No voltage or power leads reversed
Solid Green LAN connection speed is 100BaseT
Off LAN connection speed is 10BaseT
Back Panel LED Descriptions
Description
Description
