58
11.9
Analogs
The NetGuardian can have up to 6 analog channels. The 5th and 6th channels are dedicated to
monitoring the power input (channel is not used if build option was not selected). These channels
support the entire range of power inputs that the NetGuardian can support. Channels 1-4 are user-
definable. Each channel must be individually configured to monitor data.
Note: Only analogs supported by the units hardware will appear in the NetGuardian web browser
interface.

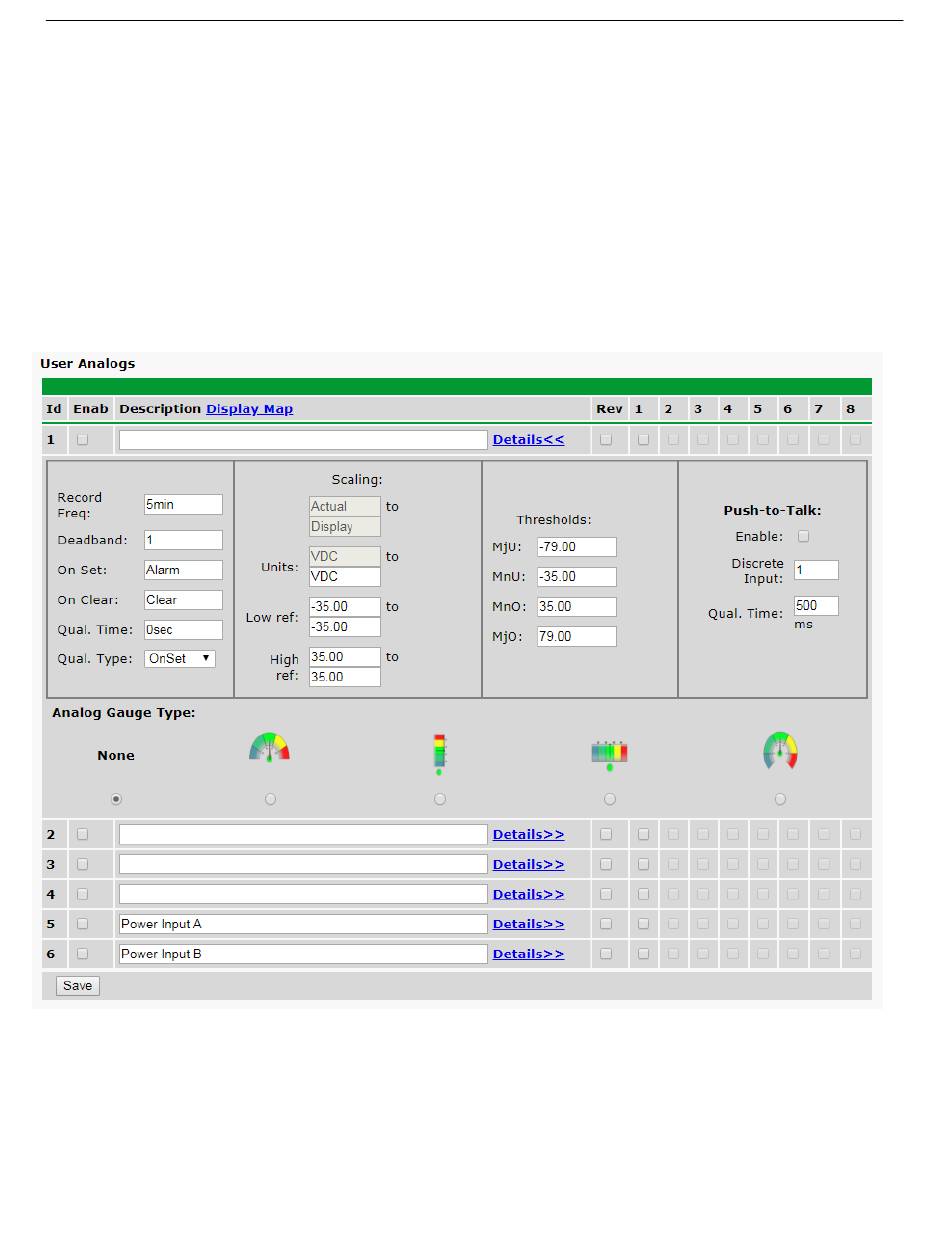

Fig. 11.20 The Provisioning > Analogs menu
