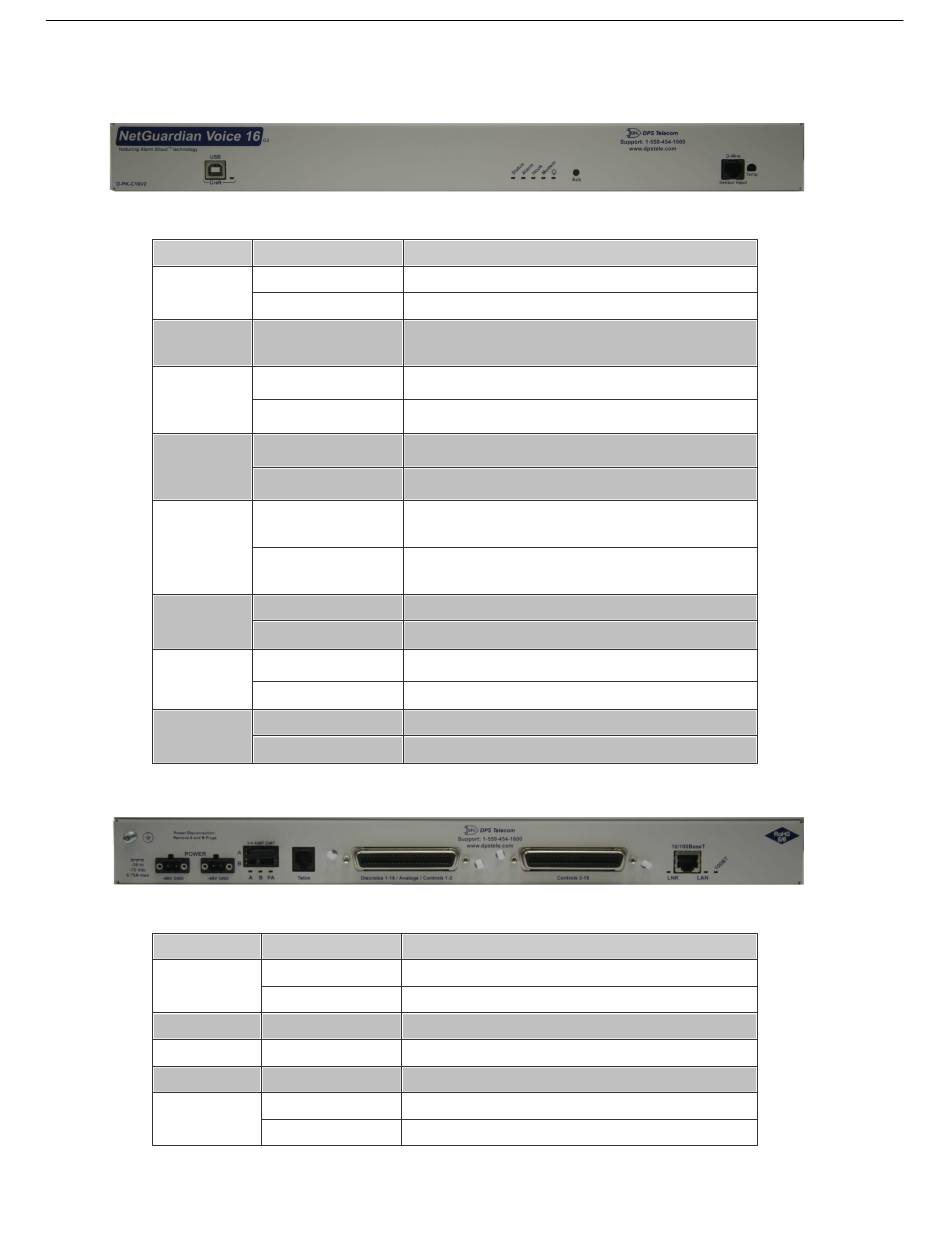

Front and Back Panel LED

LED
Alarm
Error (NG
16 Only)
Primary
(NG 16
Only)
Hook
(Voice 16
G2 Only)
Modem
(Voice 16
G2 Only)
Power
Craft
Status
LED
PWR A/B
LNK
LAN
FA
100BT
Front panel LEDs
Status
Flashing Red New alarm
Solid Red Standing alarm acknowledged
Flashing Red System error
Flashing Green Data transmitted on PRI Serial
Flashing Red Data recieved on PRI Serial
Solid Green Modem is off hook for voice
Solid Red Modem is off hook for data
Flashing Green Playing Voice (Voice Mode) / Transmitting data
through the Modem (Data Mode)
Flashing Red Receiving DTMF commands (Voice Mode) /
Receiving data through the Modem (Data Mode)
Solid Green Power supply OK
Off No voltage or power leads reversed
Flashing Green Transmitting data over craft port
Flashing Red Receiving data over craft port
Flashing Green Application is running
Flashing Red Boot Loader is running
Front Panel LED Descriptions
Back panel LEDs
Status
Solid Green Power supply OK
Off No voltage or power leads reversed
Solid Green LAN Connected
Flashing Green Transmit and receive activity over Ethernet port
Solid Red Blown Fuse
Solid Green LAN connection speed is 100BaseT
Off LAN connection speed is 10BaseT
Back Panel LED Descriptions
