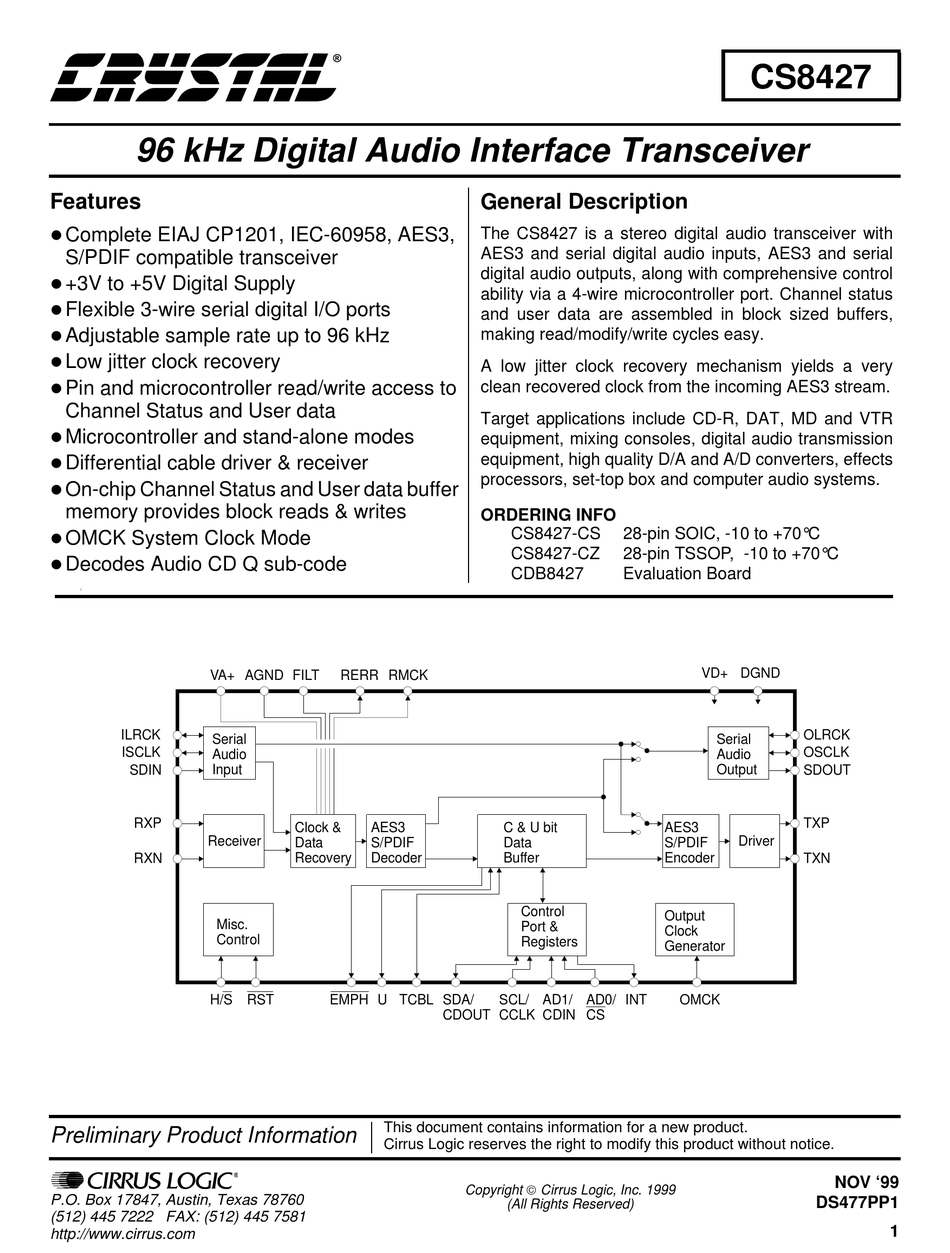

96 kHz Digital Audio Interface Transceiver
Features
l
Complete EIAJ CP1201, IEC-60958, AES3,
S/PDIF compatible transceiver
l
+3V to +5V Digital Supply
l
Flexible 3-wire serial digital I/O ports
l
Adjustable sample rate up to 96 kHz
l
Low jitter clock recovery
l
Pin and microcontroller read/write access to
Channel Status and User data
l
Microcontroller and stand-alone modes
l
Differential cable driver & receiver
l
On-chip Channel Status and User data buffer
memory provides block reads & writes
l
OMCK System Clock Mode
l
Decodes Audio CD Q sub-code
I
VA+ AGND FILT
ILRCK
Serial
ISCLK
Audio
Input
SDIN
RXP
Receiver
RXN
Misc.
Control
H/S
Preliminary Product Information
P.O. Box 17847, Austin, Texas 78760
(512) 445 7222 FAX: (512) 445 7581
http://www.cirrus.com
RERR
RMCK
Clock &
AES3
Data
S/PDIF
Recovery
Decoder
RST
EMPH U TCBL SDA/
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
General Description
The CS8427 is a stereo digital audio transceiver with
AES3 and serial digital audio inputs, AES3 and serial
digital audio outputs, along with comprehensive control
ability via a 4-wire microcontroller port. Channel status
and user data are assembled in block sized buffers,
making read/modify/write cycles easy.
A low jitter clock recovery mechanism yields a very
clean recovered clock from the incoming AES3 stream.
Target applications include CD-R, DAT, MD and VTR
equipment, mixing consoles, digital audio transmission
equipment, high quality D/A and A/D converters, effects
processors, set-top box and computer audio systems.
ORDERING INFO
CS8427-CS
CS8427-CZ
CDB8427
C & U bit
Data
Buffer
Control
Port &
Registers
SCL/
AD1/
AD0/
CDOUT
CCLK
CDIN
CS
Copyright Cirrus Logic, Inc. 1999
(All Rights Reserved)
CS8427
28-pin SOIC, -10 to +70°C
28-pin TSSOP, -10 to +70°C
Evaluation Board
VD+ DGND
Serial
Audio
Output
AES3
Driver
S/PDIF
Encoder
Output
Clock
Generator
INT
OMCK
OLRCK
OSCLK
SDOUT
TXP
TXN
NOV '99
DS477PP1
1
