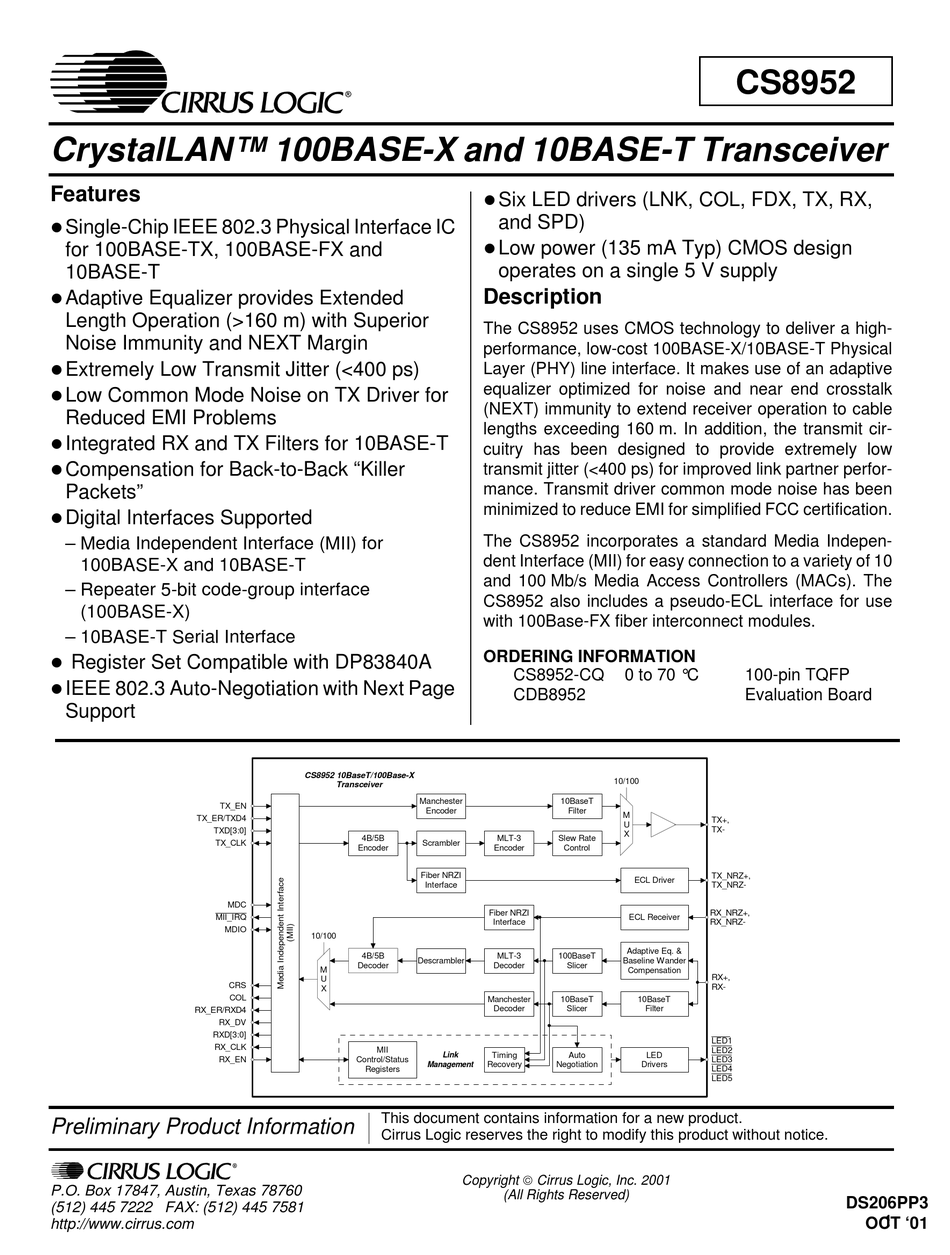

CrystalLAN™ 100BASE-X and 10BASE-T Transceiver
Features
!
Single-Chip IEEE 802.3 Physical Interface IC
for 100BASE-TX, 100BASE-FX and
10BASE-T
!
Adaptive Equalizer provides Extended
Length Operation (>160 m) with Superior
Noise Immunity and NEXT Margin
!
Extremely Low Transmit Jitter (<400 ps)
!
Low Common Mode Noise on TX Driver for
Reduced EMI Problems
!
Integrated RX and TX Filters for 10BASE-T
!
Compensation for Back-to-Back "Killer
Packets"
!
Digital Interfaces Supported
– Media Independent Interface (MII) for
100BASE-X and 10BASE-T
– Repeater 5-bit code-group interface
(100BASE-X)
– 10BASE-T Serial Interface
!
Register Set Compatible with DP83840A
!
IEEE 802.3 Auto-Negotiation with Next Page
Support
TX_EN
TX_ER/TXD4
TXD[3:0]
TX_CLK
MDC
MII_IRQ
MDIO
RX_ER/RXD4
RX_DV
RXD[3:0]
RX_CLK
RX_EN
Preliminary Product Information
P.O. Box 17847, Austin, Texas 78760
(512) 445 7222 FAX: (512) 445 7581
http://www.cirrus.com
CS8952 10BaseT/100Base-X
Transceiver
4B/5B
Encoder
10/100
4B/5B
Decoder
M
U
CRS
X
COL
MII
Control/Status
Registers
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
!
Six LED drivers (LNK, COL, FDX, TX, RX,
and SPD)
!
Low power (135 mA Typ) CMOS design
operates on a single 5 V supply
Description
The CS8952 uses CMOS technology to deliver a high-
performance, low-cost 100BASE-X/10BASE-T Physical
Layer (PHY) line interface. It makes use of an adaptive
equalizer optimized for noise and near end crosstalk
(NEXT) immunity to extend receiver operation to cable
lengths exceeding 160 m. In addition, the transmit cir-
cuitry has been designed to provide extremely low
transmit jitter (<400 ps) for improved link partner perfor-
mance. Transmit driver common mode noise has been
minimized to reduce EMI for simplified FCC certification.
The CS8952 incorporates a standard Media Indepen-
dent Interface (MII) for easy connection to a variety of 10
and 100 Mb/s Media Access Controllers (MACs). The
CS8952 also includes a pseudo-ECL interface for use
with 100Base-FX fiber interconnect modules.
ORDERING INFORMATION
CS8952-CQ
CDB8952
Manchester
10BaseT
Encoder
Filter
MLT-3
Slew Rate
Scrambler
Encoder
Control
Fiber NRZI
Interface
Fiber NRZI
Interface
MLT-3
100BaseT
Descrambler
Decoder
Slicer
Manchester
10BaseT
Decoder
Slicer
Link
Timing
Auto
Management
Recovery
Negotiation
Copyright Cirrus Logic, Inc. 2001
(All Rights Reserved)
CS8952
0 to 70 °C
100-pin TQFP
Evaluation Board
10/100
M
TX+,
U
TX-
X
TX_NRZ+,
ECL Driver
TX_NRZ-
RX_NRZ+,
ECL Receiver
RX_NRZ-
Adaptive Eq. &
Baseline Wander
Compensation
RX+,
RX-
10BaseT
Filter
LED1
LED2
LED
LED3
Drivers
LED4
LED5
DS206PP3
1
OCT '01
