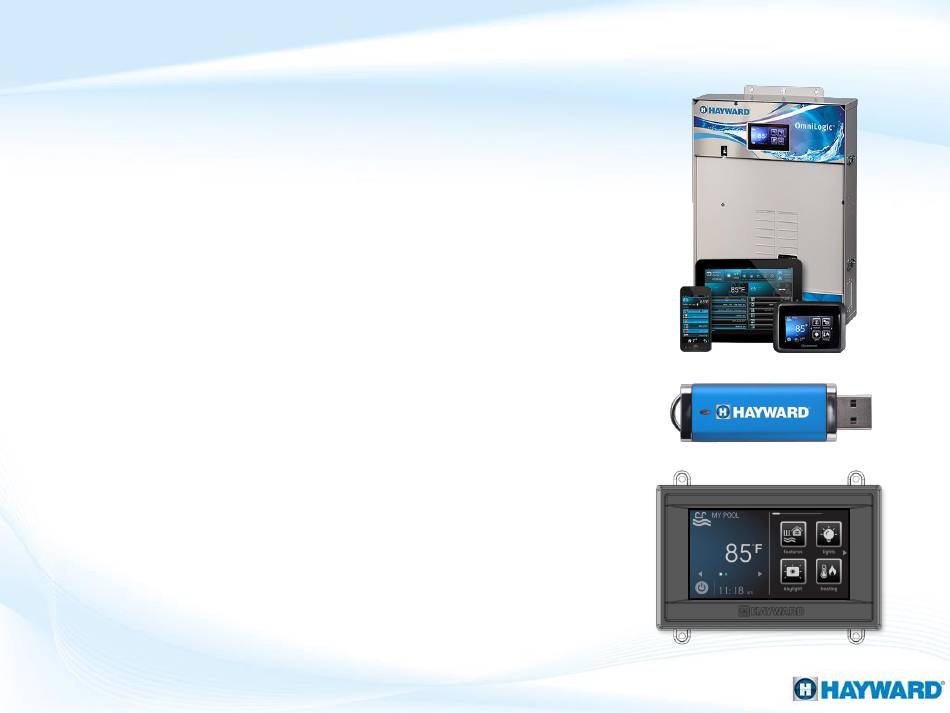

• The OmniLogic is an internet and App ready,
intuitive, modular automation system.
• This elite automation system features a USB
backup and upgrade option. The USB feature
allows servicers to back up existing
configurations as well as upgrade the system
with the latest revision in minutes.
• With touch screen technology the MSP or
display allows users to navigate through screens
and commands in virtually any lighting
condition.
• Each OmniLogic base unit supports up to 10
relays, 8 valves, 8 heaters, and 8 sensors. It also
supports up to 25 themes (groups) and 50
favorites.
4
OmniLogic: Overview
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the OmniLogic and is the answer not in the manual?
Questions and answers
CHLOR Relay K1 and K2 Stuck Closed Chlorinator alarm
To fix the CHLOR Relay K1 and K2 stuck closed alarm on a Hayward OmniLogic system, try the following steps:
1. Power Cycle the System – Turn off the OmniLogic system, wait a few minutes, then turn it back on to see if the error clears.
2. Check for Physical Relay Issues – Inspect the relays for any visible damage or signs of burning.
3. Replace the 4A Fuse – If the error is intermittent, replacing the 4A fuse may help resolve the issue.
4. Update Firmware – Ensure the OmniLogic system is running the latest firmware, as updates may fix known issues.
5. Inspect Wiring and Connections – Verify that all wiring connections to the relays and T-Cell current sensor are secure and properly connected.
6. Monitor Error Behavior – If the error disappears and returns intermittently, it could indicate a failing relay that may need replacement.
If the issue persists after these steps, consider contacting Hayward support for further troubleshooting or relay replacement.
