1. Wired Ethernet: "MSP Not Found" (cont.)
*NOTE: It is advisable, for testing purposes, to temporarily run a new Ethernet cable
above ground directly from the router to the MSP (THIS IS FOR TESTING PURPOSES
ONLY). Use an off-the-shelf cable OR a fully verified cable.
Plug into an active router port

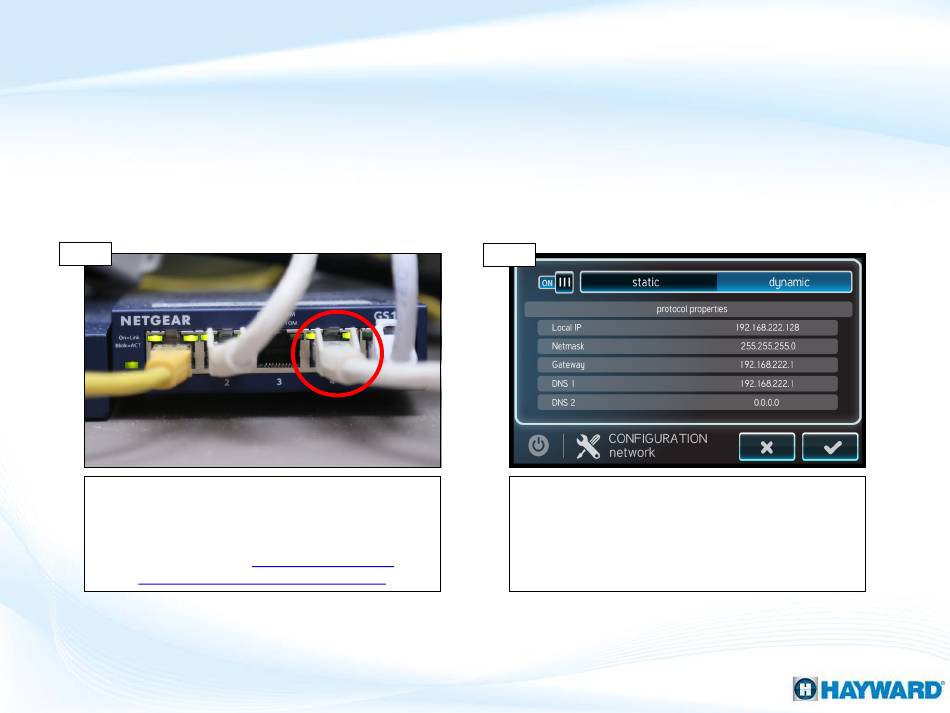

Step 1G
First, identify a port on the router that remains active,
temporarily disconnect the Ethernet cable*, and switch
it with the cable that runs back to the OmniLogic. IF the
router's LED is active go to step 1H, IF inactive, contact
a pool professional:
pool.com/shop/en/pools/Dealer-Locator
*WARNING: Prior to disconnecting any other cables from the router, first note the cable and its
position. ALWAYS get permission to disconnect cables as this can affect the devices' operation.
21
https://www.hayward-
Check for IP address
Step 1H
On the MSP, go to config>network. Verify the Network
is set to Dynamic AND that an IP address appears under
'local IP', 'netmask, & 'gateway'*. IF IP DOES NOT
appear, go to 1I. IF an address appears AND registration
is still unsuccessful, jump ahead to step 1L to log into
your account.
