1. Wired Ethernet: "MSP Not Found" (cont.)
PoE or Power over Ethernet typically only appears in switches or sophisticated routers.
The WAN port should be reserved for internet feed into the router ONLY. DO NOT plug
the MSP's Ethernet cable into a PoE or WAN port
Verify Ethernet connection
Verify router port type
Step 1C
Step 1D

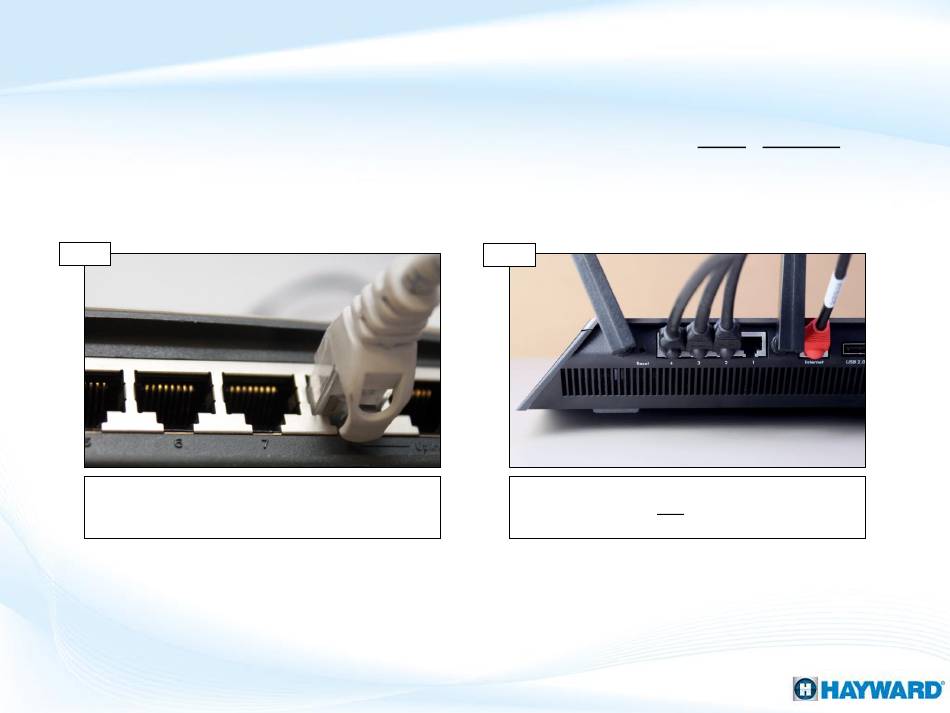

Verify the Ethernet cable is securely connected to the
Verify the Ethernet cable that runs between the MSP
Router/modem. IF correct, go to step 1D. IF not, secure
and router/modem is NOT plugged into a PoE or WAN
any loose connections.
port. IF correct, go to step 1E. IF not, correct & retest.
