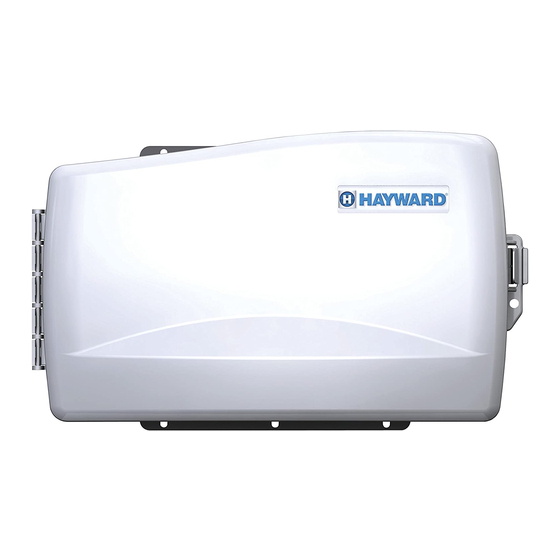

Hayward OnCommand Operation Manual
Multifunction pool controller
Hide thumbs
Also See for OnCommand:
- Installation manual (32 pages) ,
- Operation manual (32 pages) ,
- Installation manual (32 pages)
Related Manuals for Hayward OnCommand
Summary of Contents for Hayward OnCommand

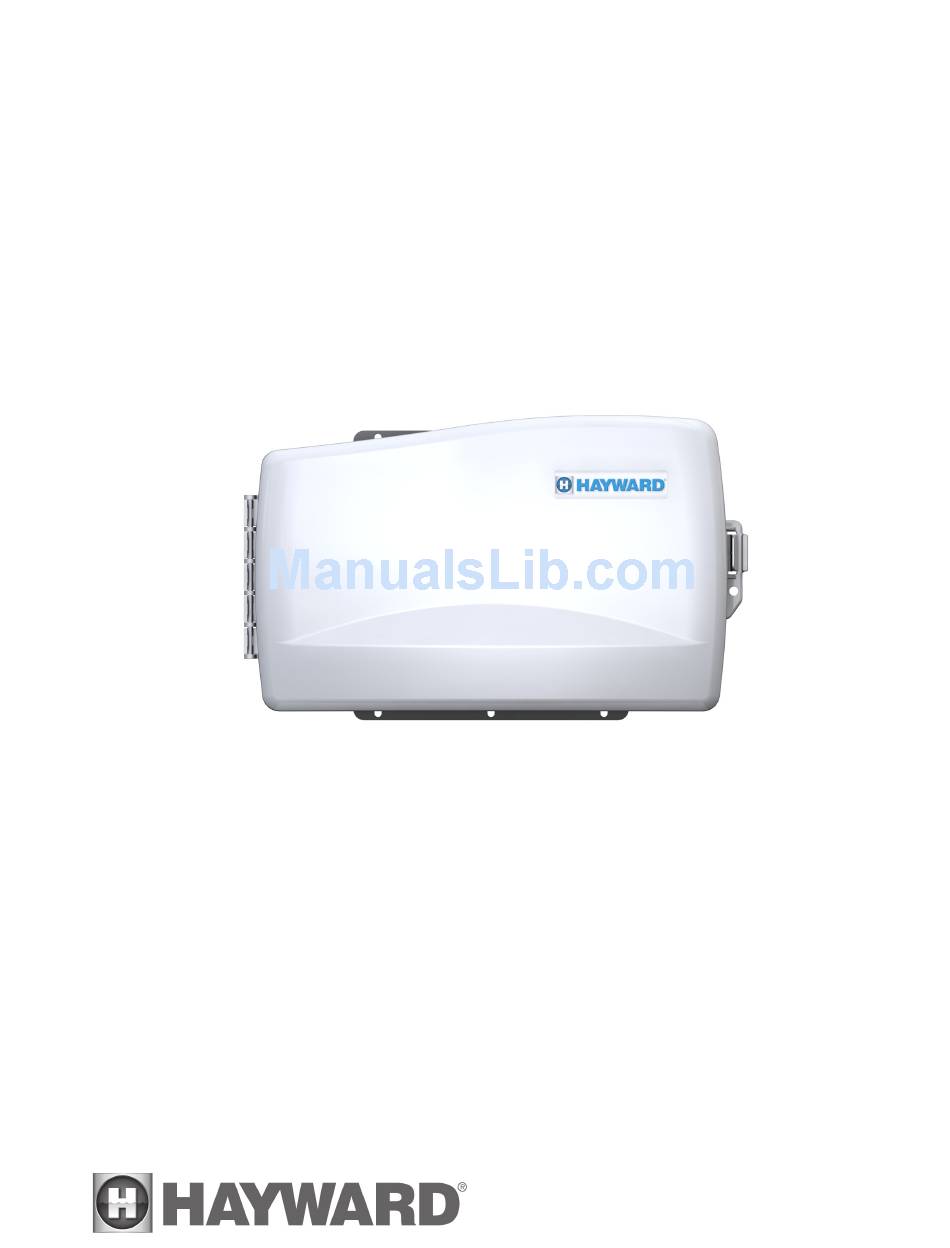

- Page 1 Hayward OnCommand Automation Operation Manual for models ONCOM ONCOM-ACT ONCOM-RC ONCOM-ACT-RC www.haywardnet.com...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS When using this electrical equipment, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL INSTRUCTIONS • • WARNING: Disconnect all AC power during installation. • WARNING: Water in excess of 100 degrees Fahrenheit may be hazardous to your health.
-
Page 3: Table Of Contents
Program a Timeclock............23 Program a Countdown Timer..........23 Enter/Exit Service Mode............24 Troubleshooting & Service Mode ............... 24 Diagnostic Information Check System Indicator............24 Diagnostic Menu..............25 Salt Level................25 Water, Air, Solar Temperature..........25 Software Revision..............26 Warranty OnCommand Warranty............28... -
Page 4: System Overview Block Diagram
Manual. Aspects of the OnCommand that pertain to system setup are not covered in this manual. Automation The OnCommand can control up to 4 high voltage (120/240V) pieces of equipment, up to 3 automatic valve actuators, and a conventional and solar heater. Both manual and automatic (programmed) operation are available. -
Page 5: Manual System Filter Pump
Manual System Operation Turn the power on at the main panel and turn the OnCommand control power circuit breaker on. The keypad will show the default display. The default display alternates between the day/time, air and pool (or spa) temperature. -
Page 6: Operation Lights And Aux Outputs
OnCommand will remain in this mode of operation until manually taken out of service mode. Pressing the SERVICE button again will cause the OnCommand to switch to service-timed mode which is very similar to service mode, except that the OnCommand will automatically return to normal operation after 3 hours. -
Page 7: Automatic System Using The Programming Buttons
Automatic System Operation The OnCommand controls most of your pool equipment automatically in order to minimize the time spent working on your pool. Most of the pool equipment can be programmed to operate on a timeclock basis. In addition, the desired pool and spa temperatures can be programmed. -
Page 8: Operation Programming Menu Flow Chart
Programming Menu Flowchart The OnCommand’s five menus have many items that allow you to customize the operation of your pool/spa equipment. The chart below shows the OnCommand’s menus as well as each menu’s specific settings. default menu day and time... -
Page 9: (Programming) Settings Menu
The Default Menu is a series of informative displays with nothing to set. The OnCommand will automatically switch to the default menu when no keys have been pressed for 2 minutes and will then scroll through each display. The Settings Menu and the Timers Menu are the menus you will be using most often to adjust the operation of your pool. - Page 10 OnCommand Super Chlorinate function. The OnCommand will turn on the filter pump, set the pool/ spa valves to the correct position, and set the external chlorine generator to maximum output. The super chlorinate function will continue for the programmed number of hours (see Timers/Super Chlorinate Hours below) overriding the normal filter pump timeclock settings.
- Page 11 Use this function to set the current day of the week and time. These values are used for all the automatic timeclock functions of the OnCommand and are also displayed as part of the default menu. The OnCommand is designed to keep the clock running during power outages lasting less than 7 days.
-
Page 12: Timers Menu
Move to previous/next menu item Base NOT Found This menu will only appear if a wireless base station is connected to the OnCommand. Perform this procedure each time a wireless remote control is added to the OnCommand system. During this procedure the wireless remote “learns”... - Page 13 This menu is only available if the system has been setup for “pool and spa”. Only one timeclock is available for Spa operation. During the programmed spa time, the OnCommand will turn on the filter pump and move the pool/spa valves into the “spa-only” position. The heater will automatically heat the spa up to the programmed spa temperature (page 6).
- Page 14 This menu will appear only if the Lights are configured for countdown timer. This setting is the time after you manually turn on the lights until the OnCommand automatically turns off the lights. You can also manually turn off the lights at an earlier time by pressing the LIGHTS button. If the Lights relay is on during the programmed off time, it may be because of freeze protection.
- Page 15 Unaffected, Lowest speed to 50% Note that all functions in the table may not be offered. The available functions are dependent on how the OnCommand is configured. Also, under some circumstances, functions will be displayed but can’t be changed. Note that the function whose menu you are in, will not be displayed as an option and will automatically turn on when the group is activated.
-
Page 16: Configuration Menu
Super Chlorinate (requires external chlorinator) If a Hayward Swimpure or Goldline Aqua Rite chlorinator is used, the OnCommand can be programmed to Super Chlorinate the pool or spa while running a group command. When the group starts, the Super Chlorinate cycle will begin. - Page 17 This option is usually preferable because both the pool and spa water will be filtered and sanitized. If “Pool Only” is selected, then the OnCommand will switch the pool/spa valves to the “pool only” position at the start of the programmed pool filtering time period or when the super-chlorinate function is turned on.
- Page 18 AIR temperature sensor falls below the freeze threshold (see below), the OnCommand will turn on the filter pump to circulate the water. If “Pool and Spa” is selected in the Pool/ Spa sub-menu, the valves will also alternate between the pool and spa every 30 minutes and the filter pump will turn off while the valves are turning.
- Page 19 This feature ensures that the heater cools down before water circulation is stopped. When enabled, the OnCommand will continue to run the filter pump for 5 minutes after the heater turns off. During this period the filter pump LED will flash and also a “Heater Cooldown, X:XX remaining” message will scroll on the display.
- Page 20 Solar Config. Push to access solar options + to view/change Move to previous/next configuration menu Toggle between Enabled and Disabled (default) Solar Solar Disabled Move to next menu item or previous/next configuration menu if “Solar” is enabled Toggle between Enabled and Disabled (default) Solar Extend Solar-Extend Disabled Move to next menu item...
- Page 21 LIGHTS button can also be used to turn the output off. Low Speed of a 2-speed Filter Pump – the OnCommand will turn on the lights relay whenever the low speed operation of the filter pump is required. It is very important that the “2-speed” filter pump option be selected under the “Filter Config.”...
- Page 22 Protection is enabled and the AIR temperature sensor falls below the selected freeze temperature threshold, the OnCommand will energize the lights relay. IMPORTANT: this only enables operation of the lights relay during freeze--see the “Filter Pump Config.” menu to enable freeze protection for the main circulation system.
- Page 23 Low Speed of a 2-speed Filter Pump – the OnCommand will operate the aux relay whenever the low speed operation of the filter pump is required. It is very important that the “2-speed” filter pump option be selected under the “Filter Config.”...
- Page 24 AIR temperature falls sensor falls below the selected freeze temperature threshold, the OnCommand will turn on the valve to allow circulation of the water. IMPORTANT: this only enables operation of the valve3 output during freeze--see the “Filter Pump Config.” menu to enable freeze protection for the main circulation system.
-
Page 25: Quick "How To" Operate The Spa - Manually
7-day Move to previous/next configuration menu This selection affects ALL of the timeclock logic in the OnCommand. If “7-day” is selected, each timeclock will have one set of turn-on/turn-off settings that operate every day of the week. If “Weekend/ Weekdays” option is selected then the user can enter one set of turn-on/turn-off times for the weekend (fixed as Saturday/Sunday) and another set of turn-on/turn-off times for weekdays (Monday through Friday). -
Page 26: Set The Heater Temperature
This operation is the highest priority and will take precedence over other automatically programmed operations. At the end of the spa period, the OnCommand will return to its normally programmed operation state. -
Page 27: Enter/Exit Service Mode
Troubleshooting and Diagnostic Information The OnCommand provides 2 different tools to aid in troubleshooting any problems that may occur in your pool and/or spa system. The Service mode will allow you to disable automatic operation and manually control most of the equipment (the heater and general purpose Valve3 output are the exceptions). -
Page 28: Diagnostic Menu
• Pool VSC Comm -- If variable speed is selected for the Pool Filter and the Hayward VSC is not responding. • Pool VSC Err: x -- If variable speed is selected for the Pool Filter and the Hayward VSC is indicating and error. -
Page 29: Software Revision
ID:1234 Move to previous/next menu item Available displays depend on configuration. If you call the Hayward/Goldline Technical Service Dept. for assistance, they may ask for the software revisions of both the main unit and each of the display/keypads or other devices that are attached to the system. Note that it is possible that different display/keypads have different software revision levels. -
Page 31: Warranty Oncommand Warranty
(3) years. Hayward/Goldline also warrants its Aqua Trol chlorination products to be free of defects in materials and work- manship, under normal use and service for a period of one (1) year. These warranties are applicable from the initial date of installation on private residential swimming pools in the US and Canada. - Page 32 620 Division St. 092442A Elizabeth, NJ 07207 Copyright © 2009 Hayward...
