Managing Your ATM Network
Ethernet Network = 126.231.44.0
ENET = 126.231.44.16
ATM
Switch 3
LEC = 90.1.1.16
Route specifying 90.1.1.15
as gateway to 126.231.44.0

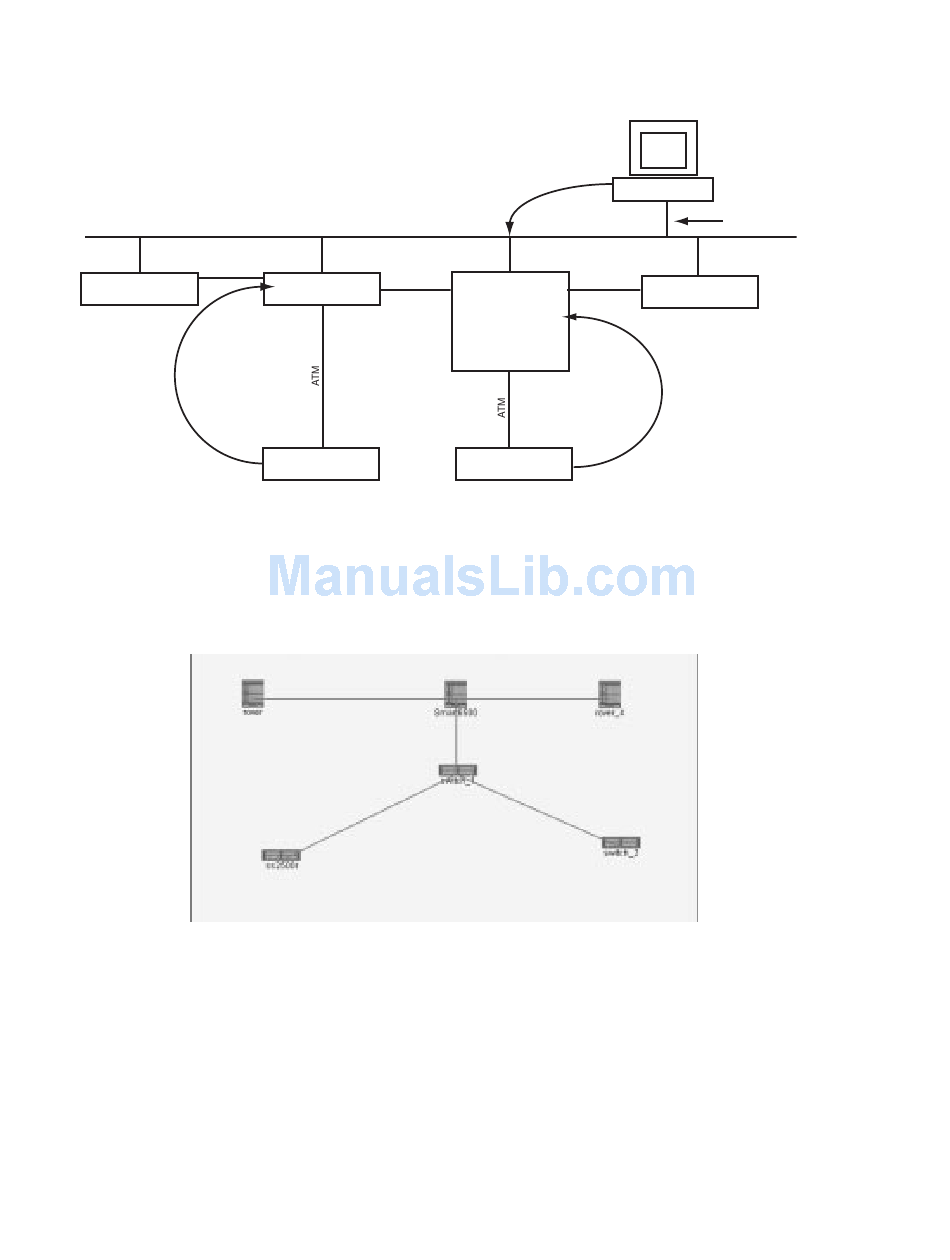

Figure 4-8 Routes that allow connectively between ATM and Ethernet

Once these routes are added, the NMS running ATM Administrator and the switches connected only through ATM can
now reach each other. The switches now appear on the ATM Administrator map as known devices, and can be
managed.

Figure 4-9 Routes allow Switches 4 and 5 to be managed

4.3.2

Accessing Online Help

All SmartSwitch ATM Administrator operations are documented within the application's online help. Follow these
instructions to access the on-line help facility (see Figure 4-10).
From the Help menu, select SmartSwitch ATM Administrator Help Topics.
1.
The Help Topics dialog box appears. You have three options for viewing online help:
2.
4-10 SmartSwitch 6A000 Installation and Setup Guide
Route on NMS specifying
126.231.44.22 as gateway
ENET = 126.231.44.15
ATM
Switch 2
LEC = 90.1.1.15
all ATM Switches
LEC = 90.1.1.24
Switch 5
Network Management Station
to 90.0.0.0
126.231.44.10
ENET = 126.231.44.22
ATM
Switch 1
LANE
Server for
90.1.1.0
255.0.0.0
LEC = 90.1.1.22
LEC = 90.1.1.20
Switch 4
Route specifying 90.1.1.22
as gateway to 126.231.44.0
ATM Administrator
Ethernet only
ENET = 126.231.44.19
Switch 6
LEC = 90.1.1.19
