Managing Your ATM Network

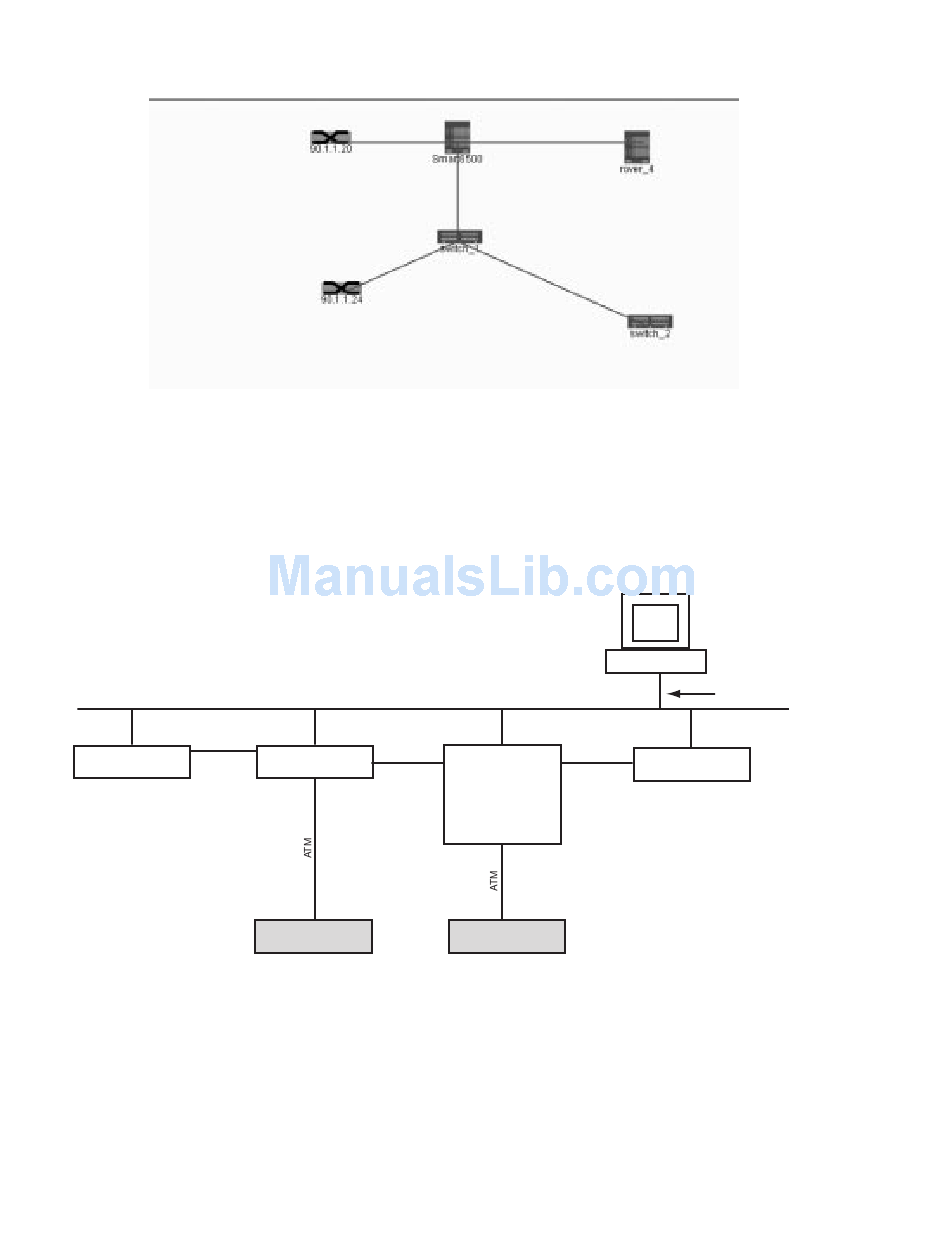

Figure 4-6 Switches that ATM Administrator cannot reach through Ethernet

Figure 4-7 is a diagram of the ATM and Ethernet connectivity of the network map shown in Figure 4-6. Notice that the
generic switches, 90.1.1.20 (Switch 4) and 90.1.1.24 (Switch 5), are not connected to the Ethernet network. As a result,
switches 4 and 5 do not have direct access to the NMS, and the NMS (using an Ethernet connection) does not know
how to reach the subnet 90.0.0.0, which is Switches 4 and 5's ELAN.
Ethernet Network = 126.231.44.0
ENET = 126.231.44.16
ATM
Switch 3
LEC = 90.1.1.16

Figure 4-7 Ethernet connected ATM Administrator

This connectivity problem can be fixed by creating routes between the NMS and the non-Ethernet connected switches:
Add a route on the NMS that specifies the gateway to 90.0.0.0 as the Ethernet interface of a switch
1.
that has connectivity to both Ethernet and the ATM ELAN.
4-8 SmartSwitch 6A000 Installation and Setup Guide
ATM Administrator's Ethernet
connection cannot reach
Switch 4 and 5.
ENET = 126.231.44.15
ATM
Switch 2
LEC = 90.1.1.15
all ATM Switches
LEC = 90.1.1.24
Switch 5
Switch 4 and 5 are
connected to the
network through ATM only.
Network Management Station
126.231.44.10
ENET = 126.231.44.22
ATM
Switch 1
LANE
Server for
90.1.1.0
255.0.0.0
LEC = 90.1.1.22
LEC = 90.1.1.20
Switch 4
ATM Administrator
Ethernet only
ENET = 126.231.44.19
Switch 6
LEC = 90.1.1.19
