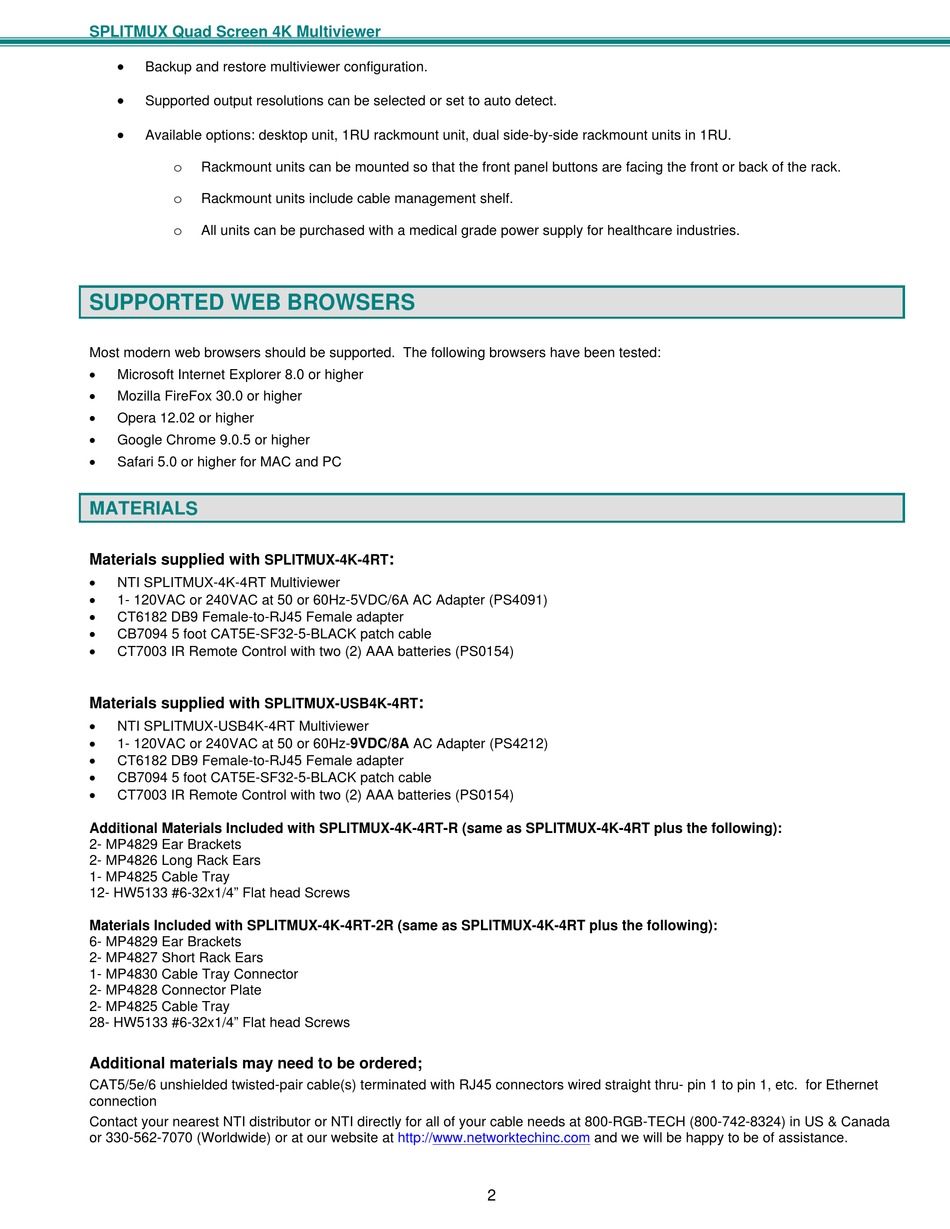

SPLITMUX Quad Screen 4K Multiviewer
Backup and restore multiviewer configuration.
Supported output resolutions can be selected or set to auto detect.
Available options: desktop unit, 1RU rackmount unit, dual side-by-side rackmount units in 1RU.
o
Rackmount units can be mounted so that the front panel buttons are facing the front or back of the rack.
o
Rackmount units include cable management shelf.
o
All units can be purchased with a medical grade power supply for healthcare industries.
SUPPORTED WEB BROWSERS
Most modern web browsers should be supported. The following browsers have been tested:
Microsoft Internet Explorer 8.0 or higher
Mozilla FireFox 30.0 or higher
Opera 12.02 or higher
Google Chrome 9.0.5 or higher
Safari 5.0 or higher for MAC and PC
MATERIALS
Materials supplied with
SPLITMUX-4K-4RT
NTI SPLITMUX-4K-4RT Multiviewer
1- 120VAC or 240VAC at 50 or 60Hz-5VDC/6A AC Adapter (PS4091)
CT6182 DB9 Female-to-RJ45 Female adapter
CB7094 5 foot CAT5E-SF32-5-BLACK patch cable
CT7003 IR Remote Control with two (2) AAA batteries (PS0154)
Materials supplied with
SPLITMUX-USB4K-4RT
NTI SPLITMUX-USB4K-4RT Multiviewer
1- 120VAC or 240VAC at 50 or 60Hz-9VDC/8A AC Adapter (PS4212)
CT6182 DB9 Female-to-RJ45 Female adapter
CB7094 5 foot CAT5E-SF32-5-BLACK patch cable
CT7003 IR Remote Control with two (2) AAA batteries (PS0154)
Additional Materials Included with SPLITMUX-4K-4RT-R (same as SPLITMUX-4K-4RT plus the following):
2- MP4829 Ear Brackets
2- MP4826 Long Rack Ears
1- MP4825 Cable Tray
12- HW5133 #6-32x1/4" Flat head Screws
Materials Included with SPLITMUX-4K-4RT-2R (same as SPLITMUX-4K-4RT plus the following):
6- MP4829 Ear Brackets
2- MP4827 Short Rack Ears
1- MP4830 Cable Tray Connector
2- MP4828 Connector Plate
2- MP4825 Cable Tray
28- HW5133 #6-32x1/4" Flat head Screws
Additional materials may need to be ordered;
CAT5/5e/6 unshielded twisted-pair cable(s) terminated with RJ45 connectors wired straight thru- pin 1 to pin 1, etc. for Ethernet
connection
Contact your nearest NTI distributor or NTI directly for all of your cable needs at 800-RGB-TECH (800-742-8324) in US & Canada
or 330-562-7070 (Worldwide) or at our website at
:
:
http://www.networktechinc.com
2
and we will be happy to be of assistance.
