SPLITMUX Quad Screen 4K Multiviewer

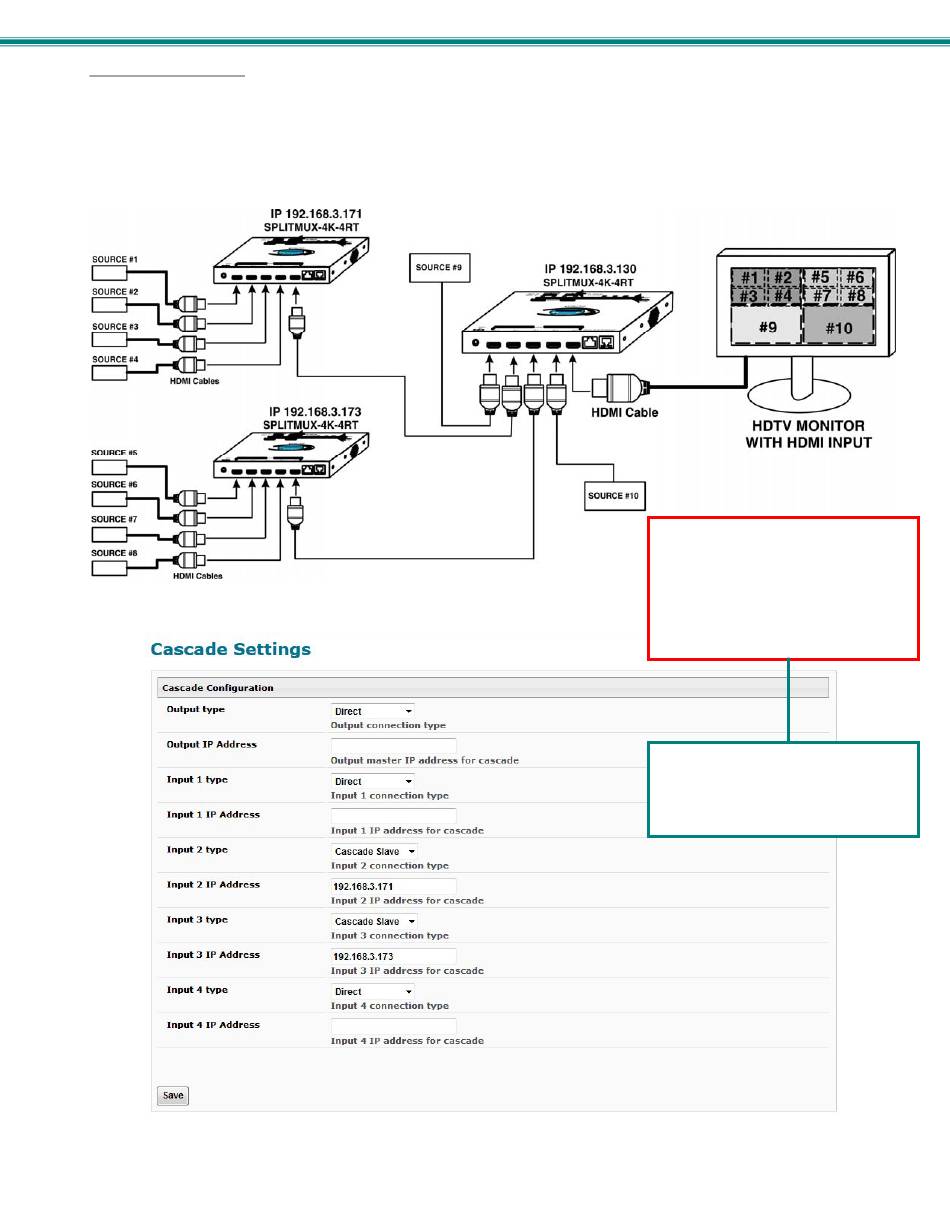

Cascade Settings

In order to expand the number of video inputs that can be monitored by one display, SPLITMUXs can be connected in a cascaded

configuration.

To cascade SPLITMUXs, simply connect the output port of any downstream SPLITMUXs to the input port of an upstream

SPLITMUX. Any input sources will be viewable from the monitor connected at the most upstream SPLITMUX.

Settings under Administration, configure the SPLITMUX for the connection method that will be employed.

Using Cascade

Note: When cascading SPLITMUXs,

make sure the Output Settings of all

slaves are set at or below

1920x1080p.

The Input of the

Master does not support higher

resolution settings from the slave

units.

To reduce cost, we recommend

using the SPLITMUX-HD-4RT for any

units connected as Slaves in a

cascaded configuration.
