SPLITMUX Quad Screen 4K Multiviewer

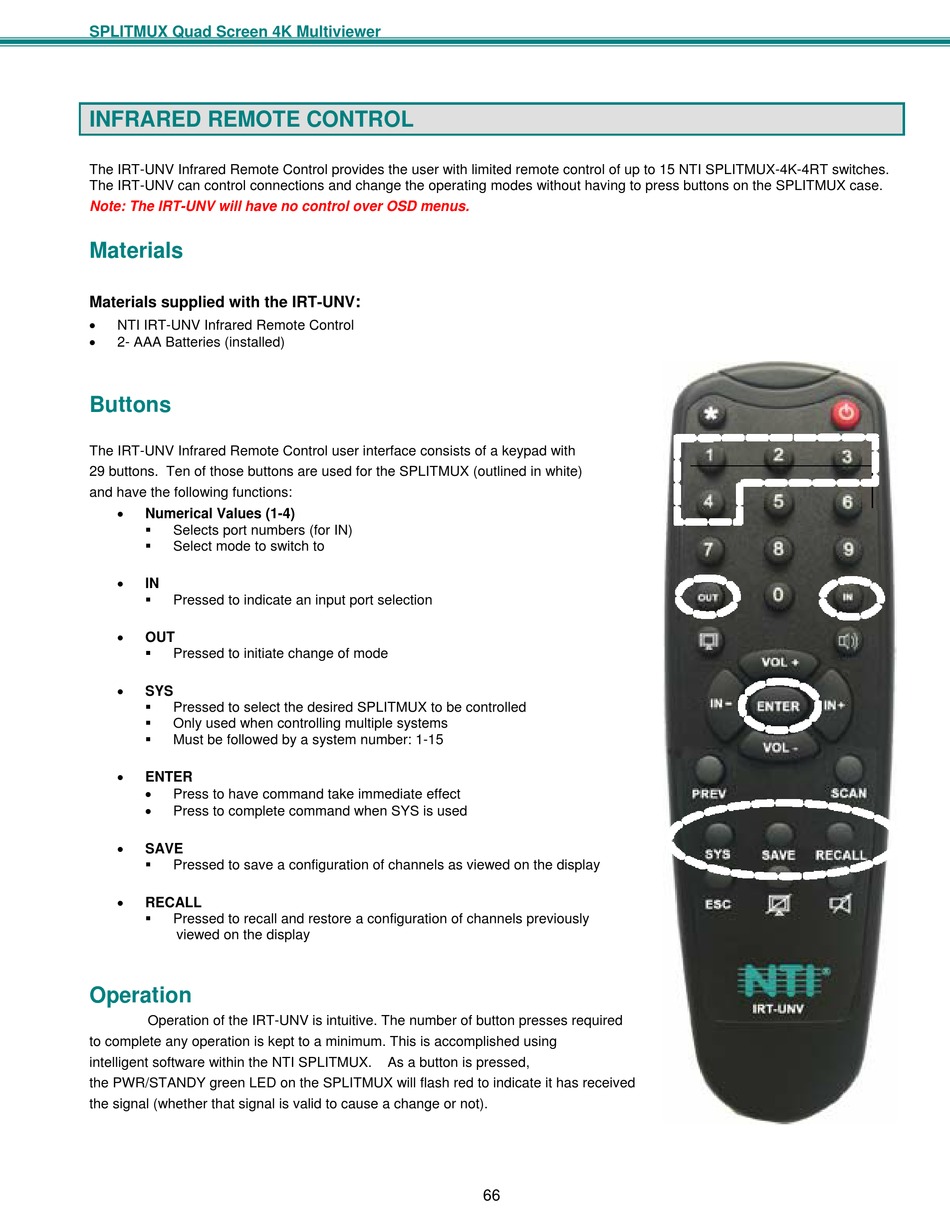

INFRARED REMOTE CONTROL

The IRT-UNV Infrared Remote Control provides the user with limited remote control of up to 15 NTI SPLITMUX-4K-4RT switches.
The IRT-UNV can control connections and change the operating modes without having to press buttons on the SPLITMUX case.
Note: The IRT-UNV will have no control over OSD menus.

Materials

Materials supplied with the IRT-UNV

NTI IRT-UNV Infrared Remote Control

2- AAA Batteries (installed)

Buttons

The IRT-UNV Infrared Remote Control user interface consists of a keypad with
29 buttons. Ten of those buttons are used for the SPLITMUX (outlined in white)
and have the following functions:

Numerical Values (1-4)

Selects port numbers (for IN)

Select mode to switch to

IN

Pressed to indicate an input port selection

OUT

Pressed to initiate change of mode

SYS

Pressed to select the desired SPLITMUX to be controlled

Only used when controlling multiple systems

Must be followed by a system number: 1-15

ENTER

Press to have command take immediate effect

Press to complete command when SYS is used

SAVE

Pressed to save a configuration of channels as viewed on the display

RECALL

Pressed to recall and restore a configuration of channels previously
viewed on the display

Operation

Operation of the IRT-UNV is intuitive. The number of button presses required
to complete any operation is kept to a minimum. This is accomplished using
intelligent software within the NTI SPLITMUX.
the PWR/STANDY green LED on the SPLITMUX will flash red to indicate it has received
the signal (whether that signal is valid to cause a change or not).
:
As a button is pressed,
