Mode Configuration

Mode Configuration (Main Menu—>7) will determine how each display mode provided by the SPLITMUX will be presented.
Mode characteristics will determine how the images will look on the display.
Power Up Mode Setting
Default Power On Mode

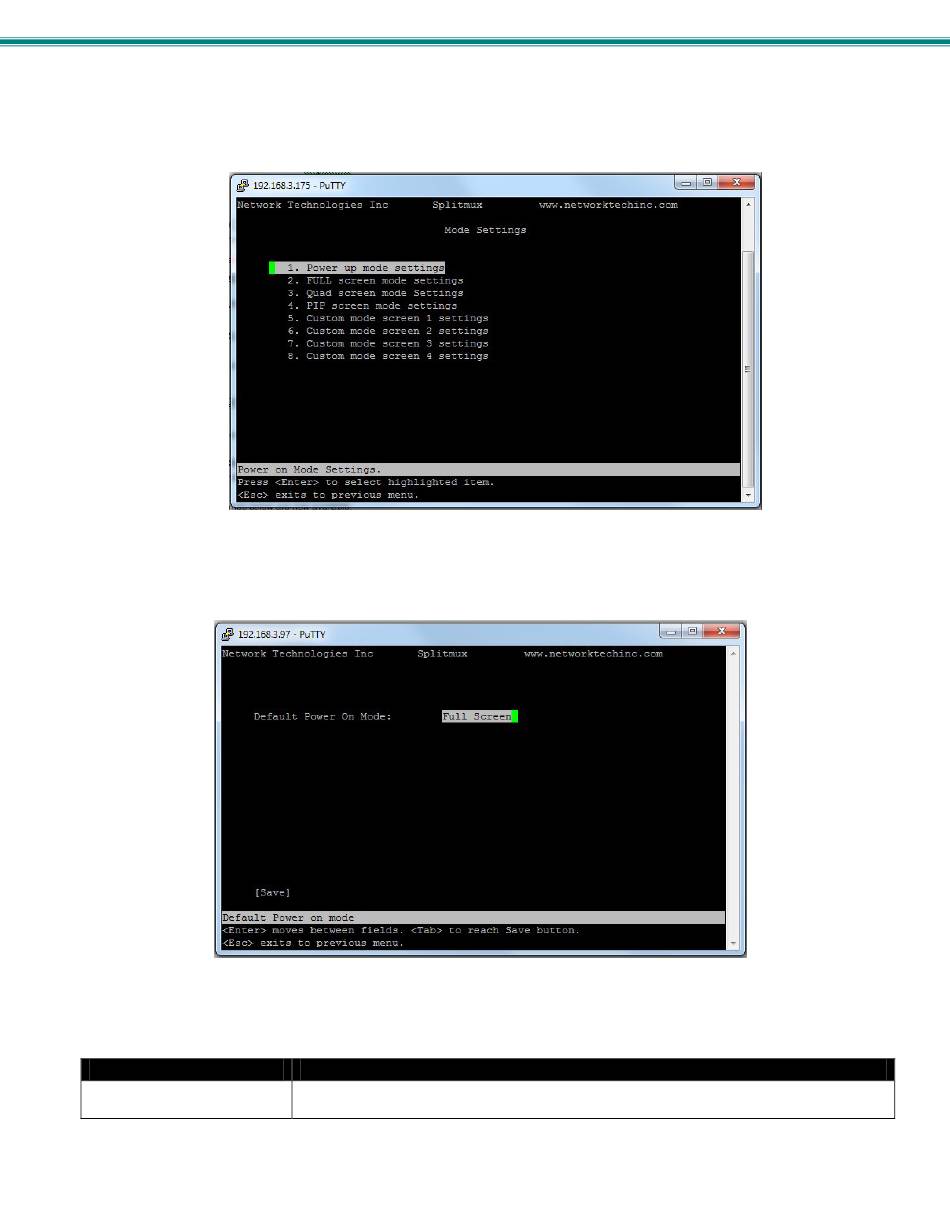

Figure 50- Text Menu- Mode Settings Menu

Figure 51- Text Menu- Default Mode Configuration

Choose the default mode the SPLITMUX will be in when powered ON. Choose from Full, Pip,
Quad or Custom
